Downlight Retro Kit Round 260mA 12W 950lm 3K White c/w UID Dimmable Driver IC-F/IC-4
Downlights

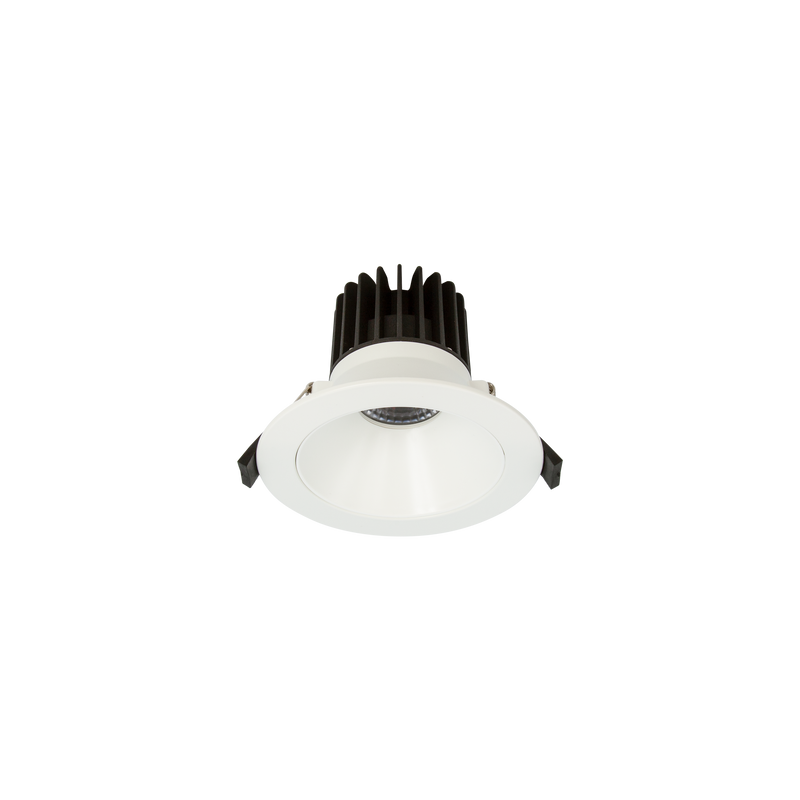

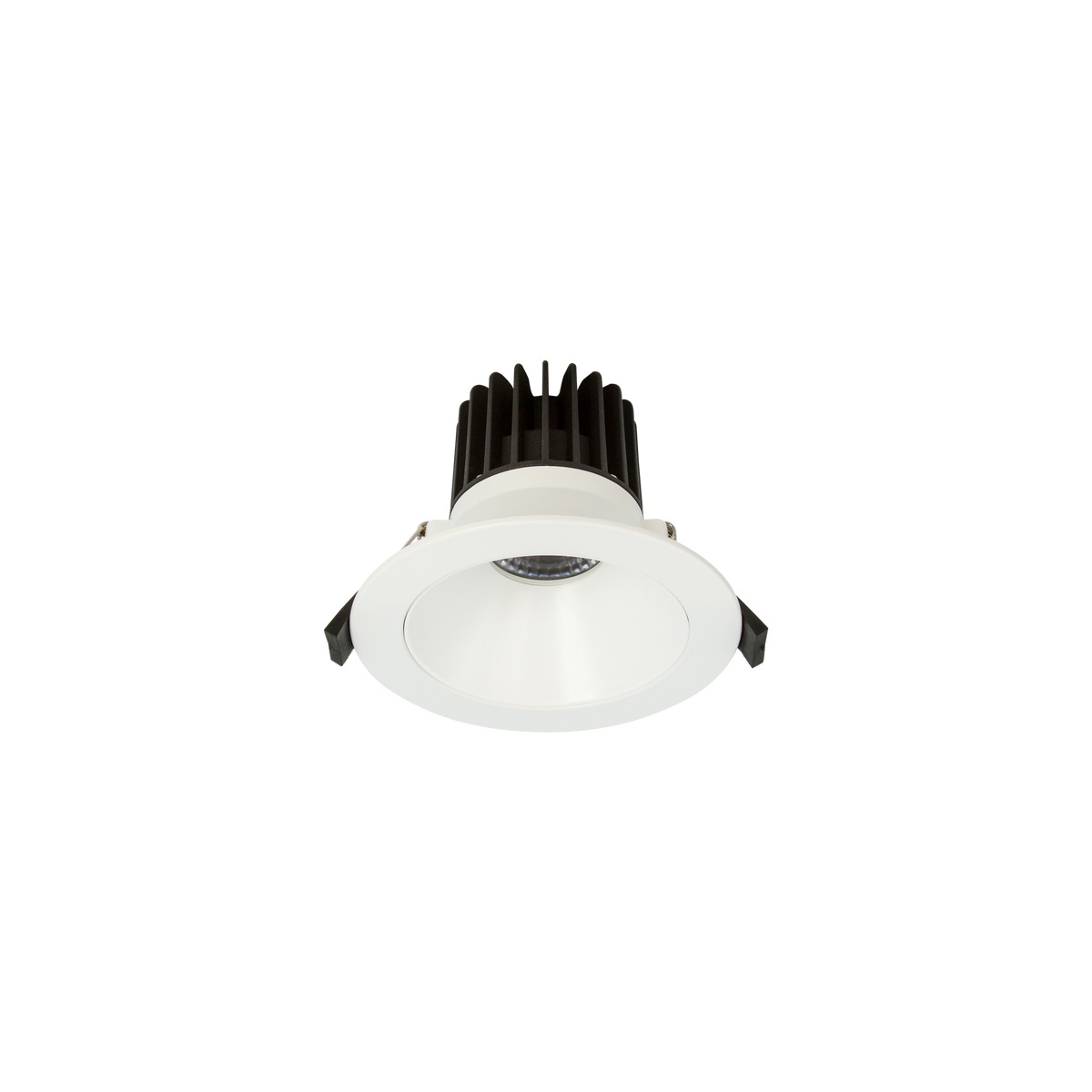

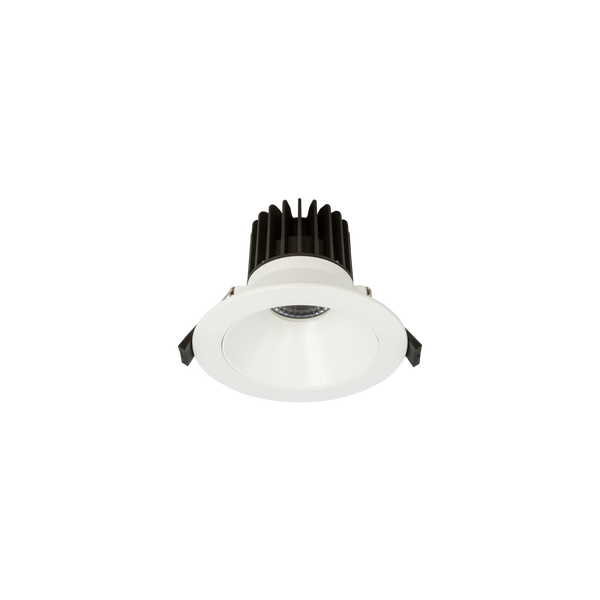

Design Standard Medium Downlight Kit White 3000K

R610 W3K Design Standard Medium Downlight Kit White 3000K

Lumens

Watts

950lm

12W

View Options

Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver

DCC260-DX-12W-GL

Watts

6W-12W

Watts

6W-12W

Add to

Select Downlights

Select driver

driver sold separately. Please select below.

Specifications

Design Standard Medium Downlight Kit White 3000K

Downlights

R610 W3K

Finish

White

Colour Temp

3000K Warm White

Watts

12W

Lumens

950lm

Beam Angle

50°

Dimming / Control

Phase-Cut Dimmable

CRI

90

Lifespan

60,000hrs (L80 B30)

Ingress Protection

IP54

Cut Out

100-110mm (Suitable for Retrofit Applications)

Diameter

126mm

Height

95mm

Binning

SDCM 3

TLAs

Flicker-free (PstLM <1.0 / SVM <0.4)

Classification

IC-F / IC-4

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium, PMMA

Electrical Class

Class II

Driver Output Current

260mA

Driver Included / Incorporated

Driver Included

Warranty

5 Year Warranty

260mA 12W Dimmable Constant Current DX Series Go Link Driver

Driver

260mA 12W Dimmable Constant Current DX Series Go Link Driver

Watts

6W-12W

Input

220-240V 50/60Hz

Dimming / Control

Dimmable

Ingress Protection

IP20

Height

28mm

Width

55mm

Length

144mm
