R610 B3K
R610
- Checking stock...

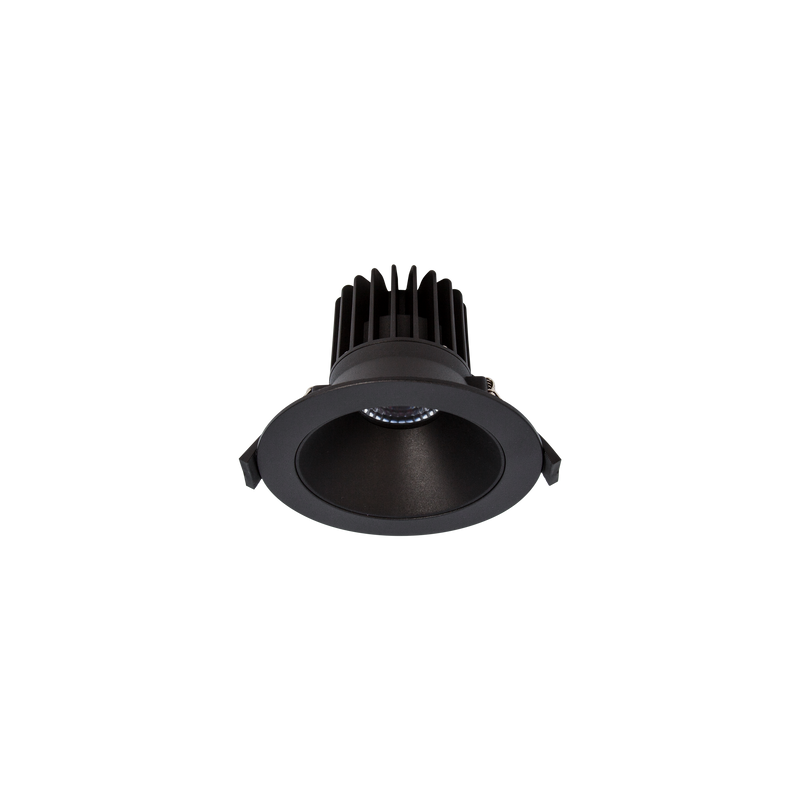

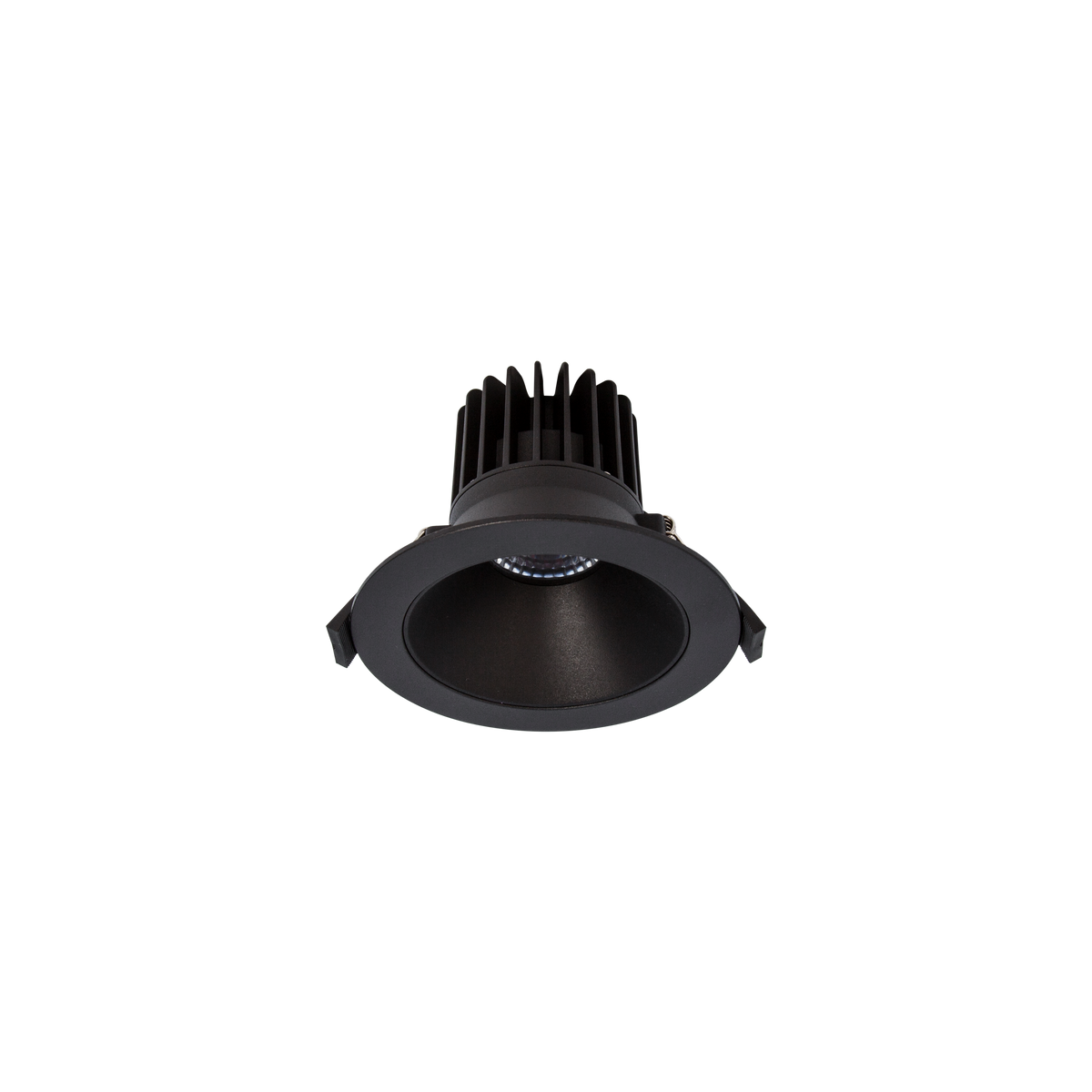

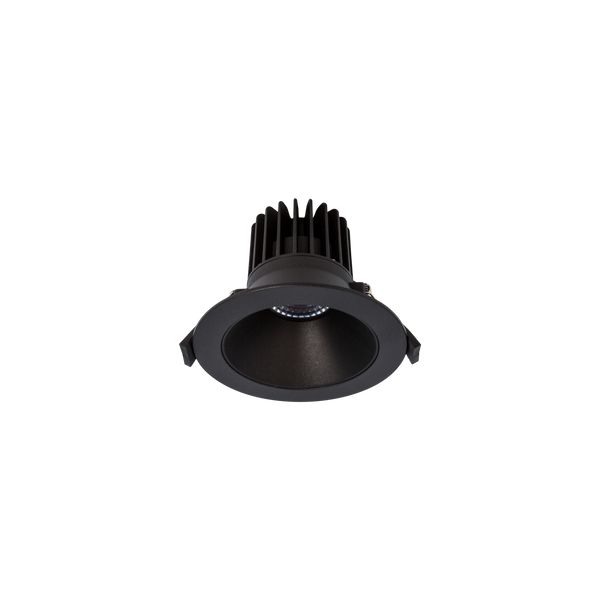

R610 B3K Design Standard Medium Downlight Kit Black 3000K
Lumens
Watts
935lm
12W
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R610
Design Standard Medium Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
100-110mm (Suitable for Retrofit Applications)
Lumens
935lm
Watts
12W
R610
Design Standard Medium Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
100-110mm (Suitable for Retrofit Applications)
Lumens
950lm
Watts
12W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
935lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
Cut Out
100-110mm (Suitable for Retrofit Applications)
Diameter
126mm
Height
95mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PMMA
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
