R270-W4K-CAS
R270
- Custom Build - Stock Available

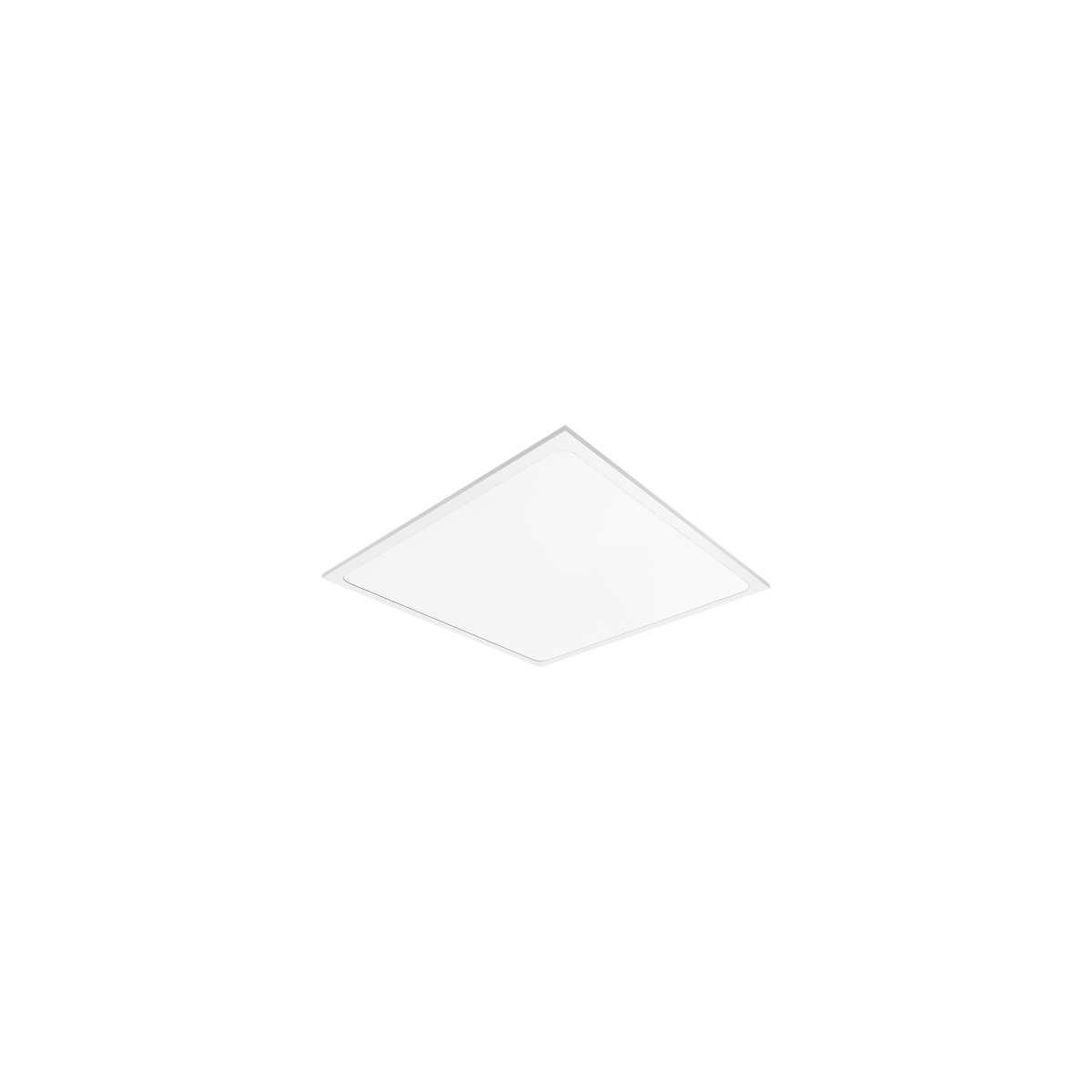

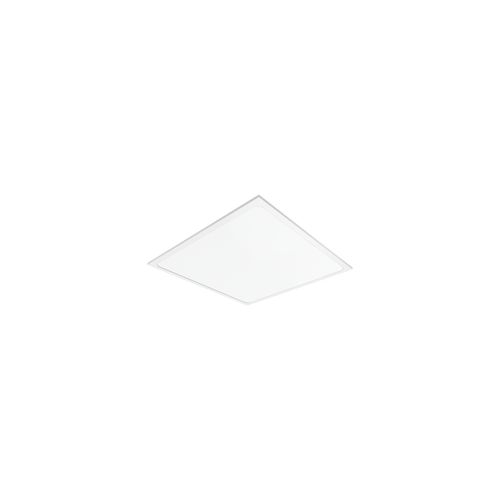

R270-W4K-CAS 6x6 Designline PC Panel Casambi White 4000K
Lumens
Watts
4060lm
34W
View Options
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
R270
6x6 Designline PC Panel Casambi White 4000K
Temp.
4000K
Lumens
4060lm
Watts
34W
R270
6x6 Designline PC Panel Select 24-35W White 4000K
Temp.
4000K Natural White
Lumens
3050lm / 3500lm / 3900lm / 4200lm
Watts
24W / 28W / 32W / 35W
R270
6x6 Designline PC Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
R270
6x6 Designline PC Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
R270
6x6 Designline PC Panel Select 24-35W Black 4000K
Temp.
4000K Natural White
Lumens
3050lm / 3500lm / 3900lm / 4200lm
Watts
24W / 28W / 32W / 35W
R270

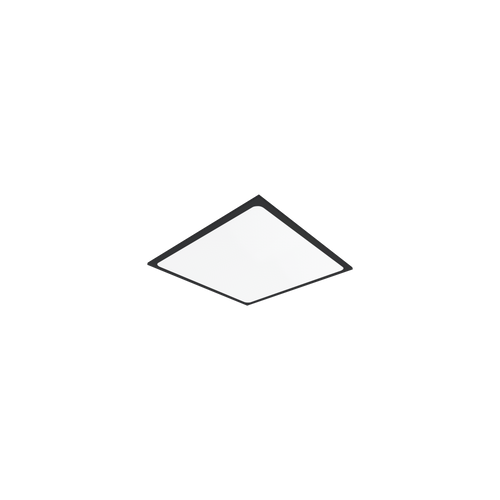

6x6 Designline PC Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
R270
6x6 Designline PC Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
R270
6x6 Designline PC Panel Casambi Black 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
Specifications
Finish
White
Colour Temp
4000K
Watts
34W
Lumens
4060lm
Beam Angle
100°
Input
220-240V 50/60Hz
Dimming / Control
Casambi
CRI
95
Lifespan
72,000hrs (L80 B10)
Ingress Protection
IP40
Height
33mm
Width
595mm
Length
595mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PC
Electrical Class
Class II
Driver Output Current
900mA
Driver Included / Incorporated
Driver Included
Power Factor
0.95
Warranty
5 Year Warranty
