R270
- Custom Build - Request Availability
Configure your R270 8 options
- White (selected)
- Black — not available in this configuration

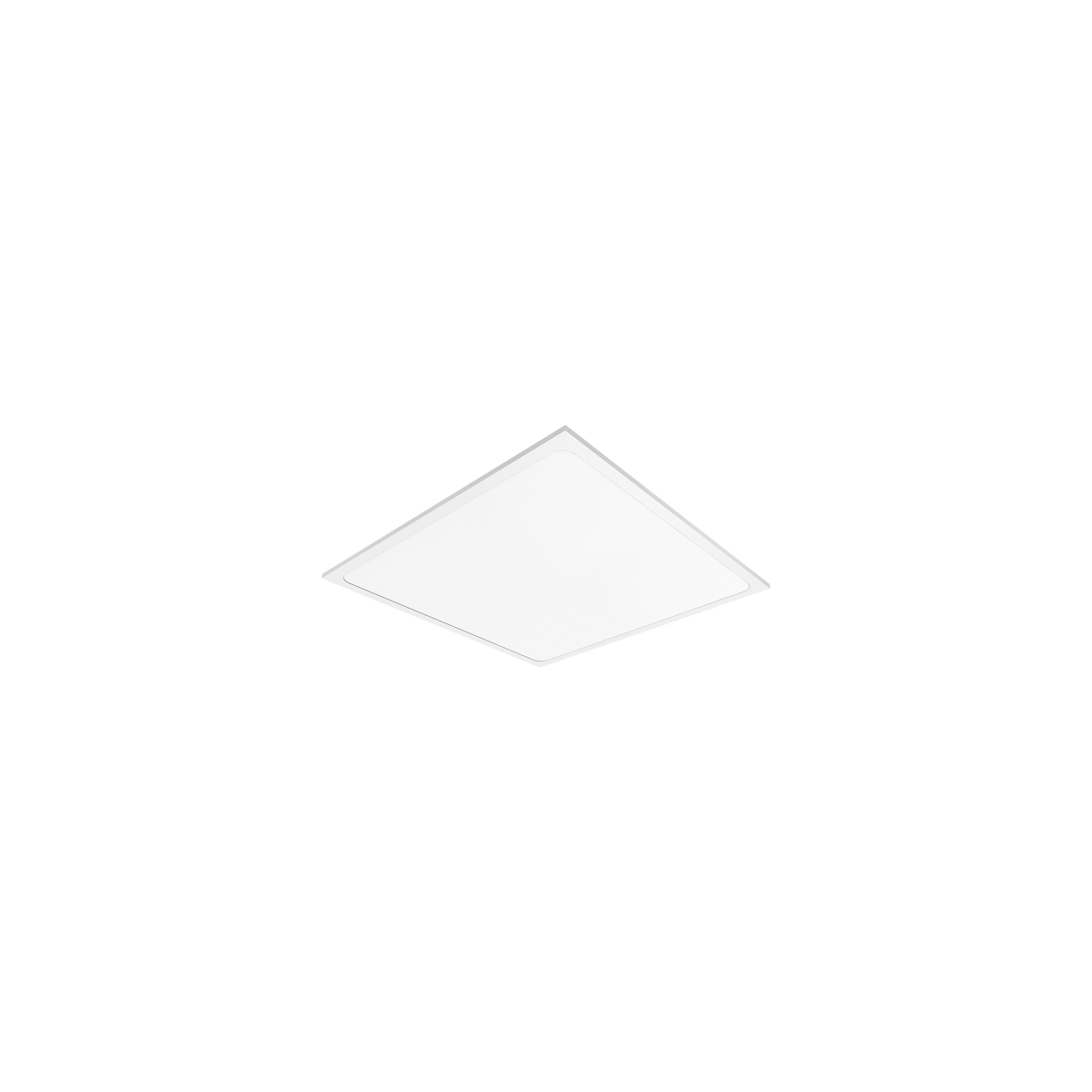

R270-W4K-DD 6x6 Designline PC Panel Dali White 4000K
Lumens
Watts
4060lm
34W
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
6x6 Designline PC Panel Select 24-35W White 4000K
Temp.
4000K Natural White
Lumens
3050lm, 3500lm, 3900lm or 4200lm (Selectable)
Watts
24W, 28W, 32W or 35W
6x6 Designline PC Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
6x6 Designline PC Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
6x6 Designline PC Panel Casambi White 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
6x6 Designline PC Panel Select 24-35W Black 4000K
Temp.
4000K Natural White
Lumens
3050lm, 3500lm, 3900lm or 4200lm (Selectable)
Watts
24W, 28W, 32W or 35W
6x6 Designline PC Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
6x6 Designline PC Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
6x6 Designline PC Panel Casambi Black 4000K
Temp.
4000K Natural White
Lumens
4060lm
Watts
34W
Specifications
R270-W4K-DD
Finish
White
Colour Temp
4000K Natural White
Watts
34W
Lumens
4060lm
Beam Angle
100°
Input
220-240V 50/60Hz
Dimming / Control
Dali
CRI
95
Lifespan
72,000hrs (L80 B10)
Ingress Protection
IP40
Height
33mm
Width
595mm
Length
595mm
Binning
SDCM 3
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PC
Electrical Class
Class II
Driver Output Current
900mA
Driver
Included, Remote
Ambient Operating Temperature
-20..+40°C
Power Factor
0.95
Warranty
5 Year Warranty
