M40-T3
- Custom Build - Request Availability
Select Module
M40-T3
Cevon M40 Type 3 Dark Art Fixed White 2700K
Temp.
2700K Warm White
Lumens
575lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed White 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Silver 2700K
Temp.
2700K Warm White
Lumens
575lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Silver 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
7W
M40-T3

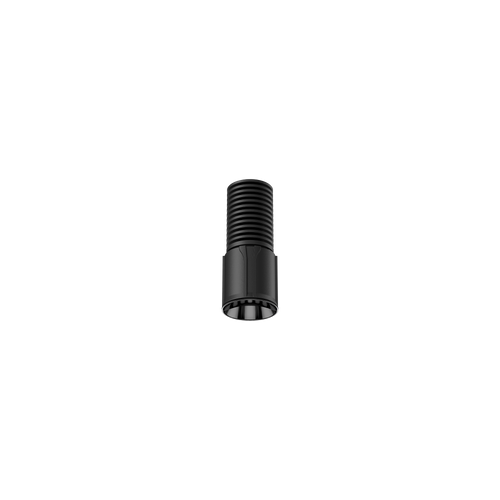

Cevon M40 Type 3 Dark Art Fixed High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
555lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Gold 2700K
Temp.
2700K Warm White
Lumens
555lm
Watts
7W
M40-T3

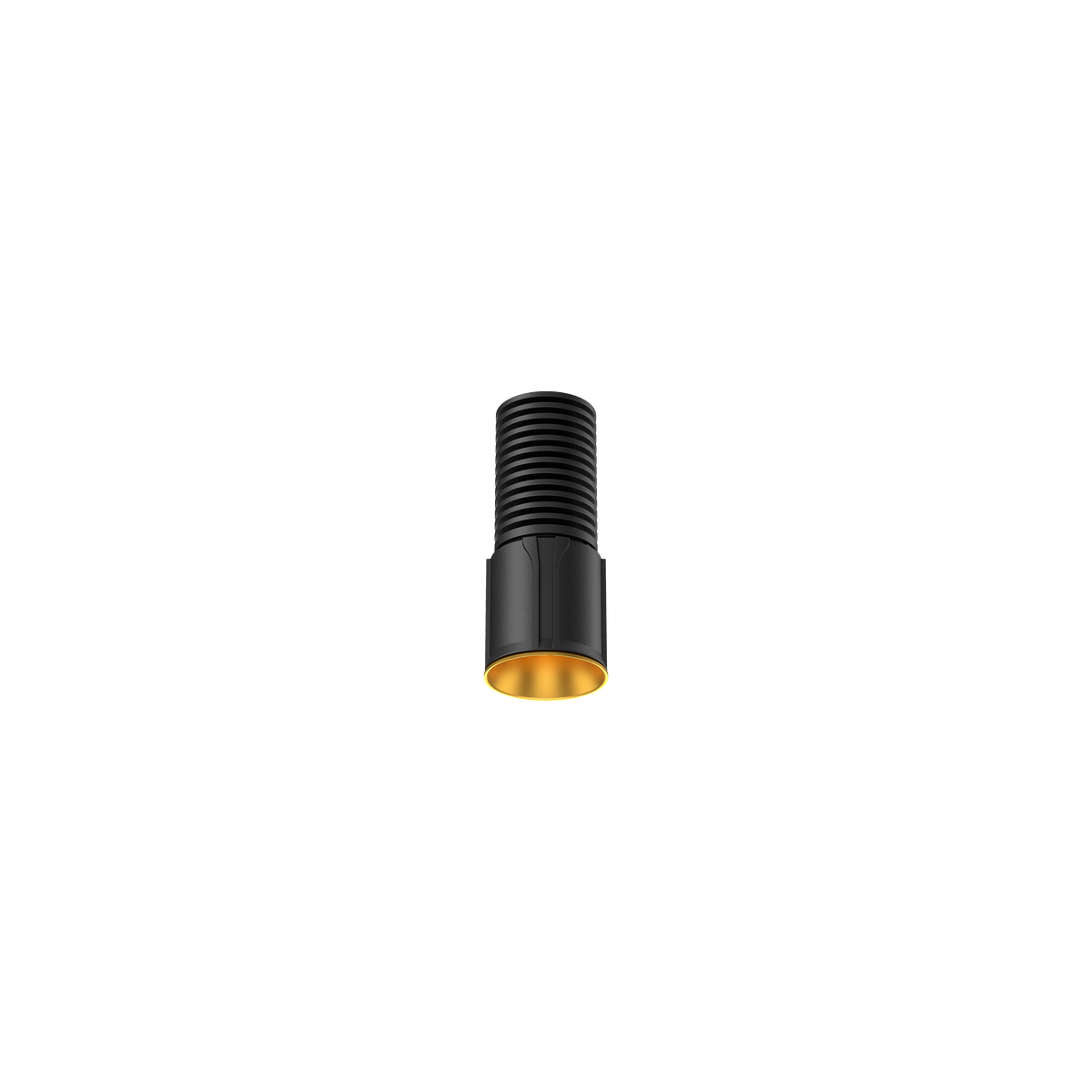

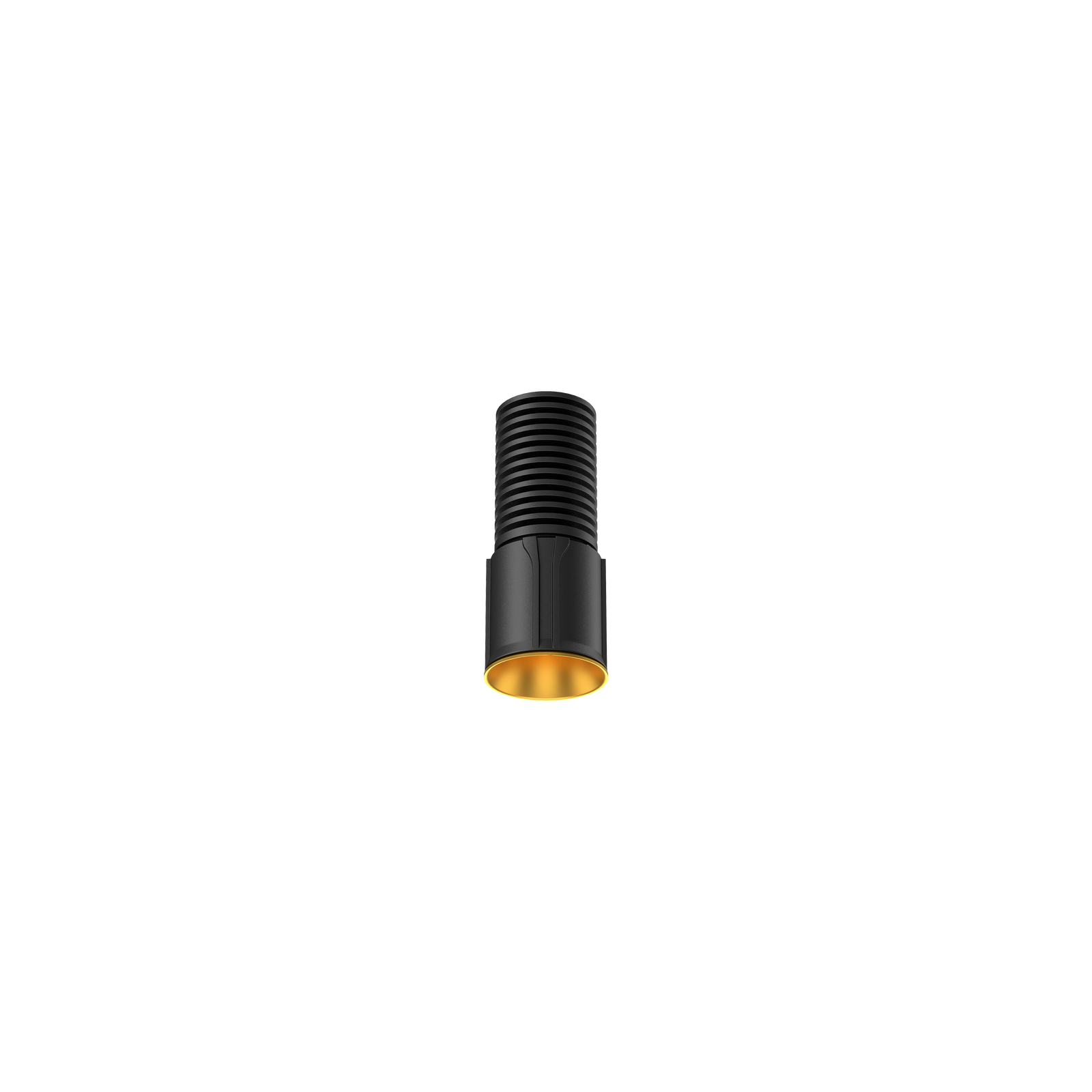

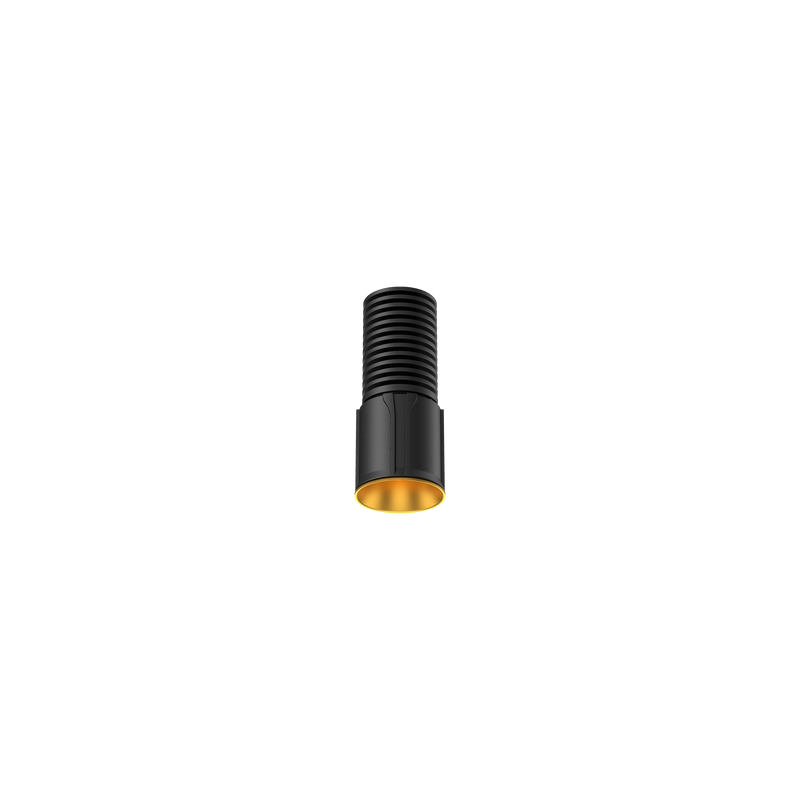

Cevon M40 Type 3 Dark Art Fixed Gold 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Black 2700K
Temp.
2700K Warm White
Lumens
555lm
Watts
7W
M40-T3

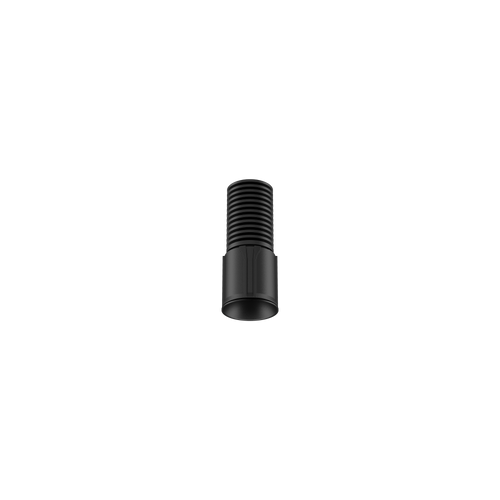

Cevon M40 Type 3 Dark Art Fixed Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
7W
Select Frame
Frame sold separately. Please select below.
F40-RR
Cevon Type Recessed Round Frame for M40 Black
Cut out
Ø57mm
F40-RR
Cevon Type Recessed Round Frame for M40 White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 Black
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 White
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 Black
Cut out
2xØ57mm @53mm centres
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 White
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 Black
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 White
Cut out
2xØ57mm @53mm centres
F40-TL
Cevon Type Trimless Frame for M40 White
Cut out
Ø85mm
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W-STR
120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M40-T3-G3K-36D
Finish
Gold
Colour Temp
3000K Warm White
Watts
7W
Lumens
570lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
40mm
Height
110mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
