M40-T22-BB3K-36D
M40-T22
- Checking stock...

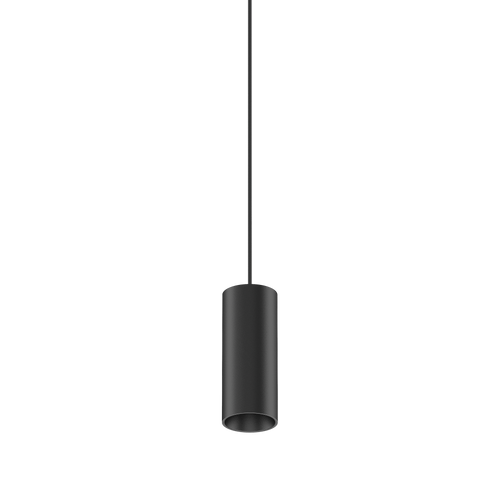

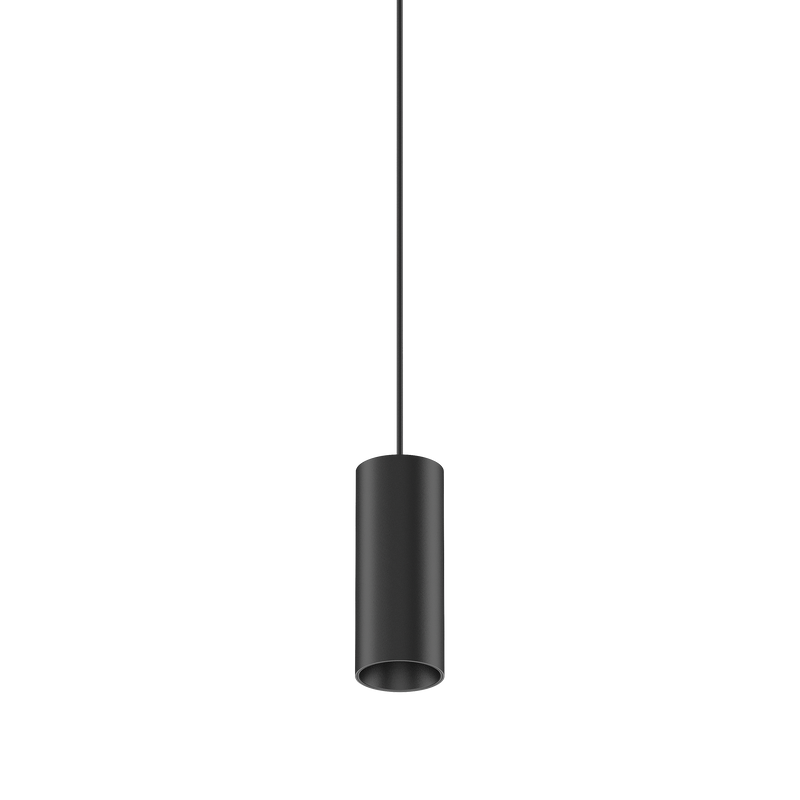

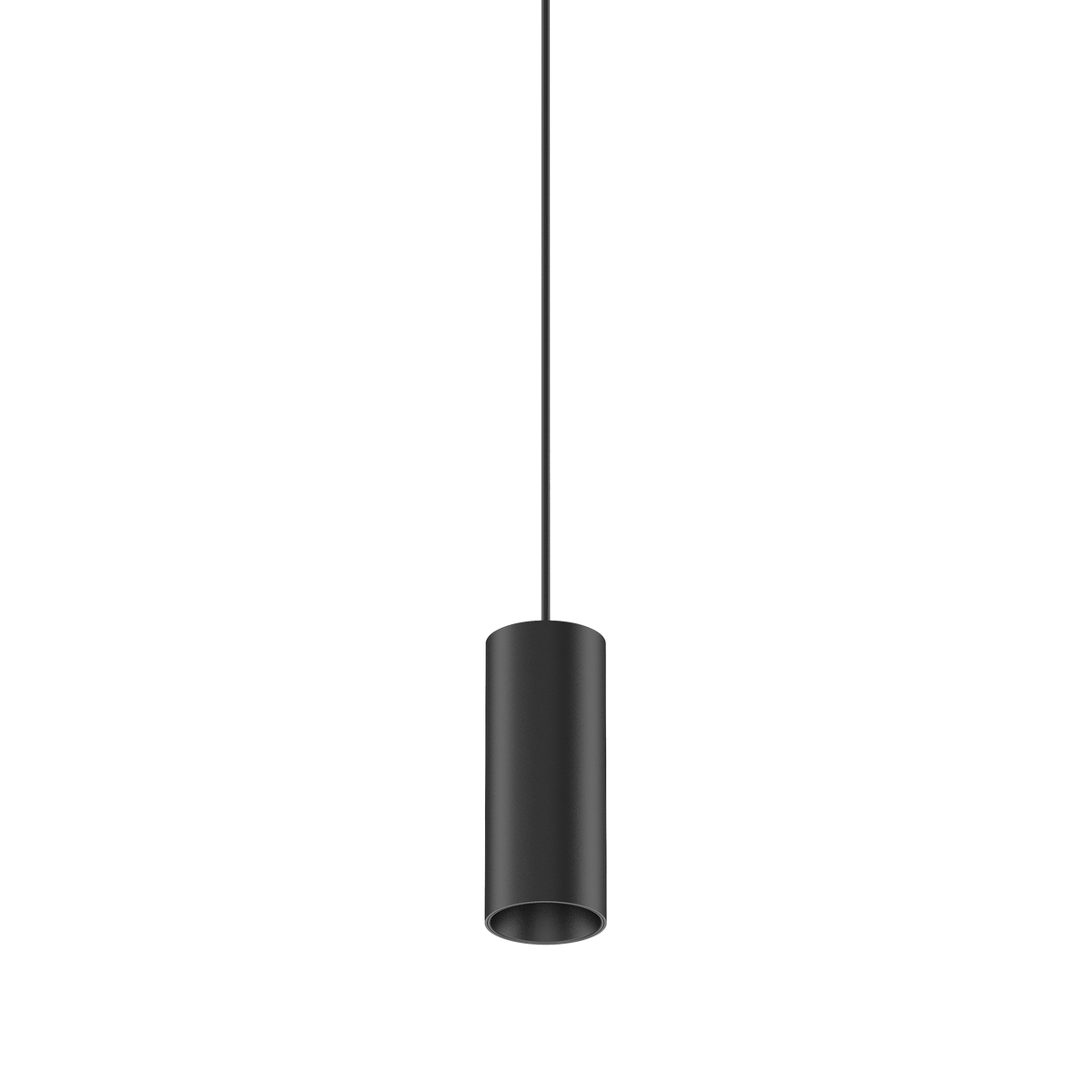

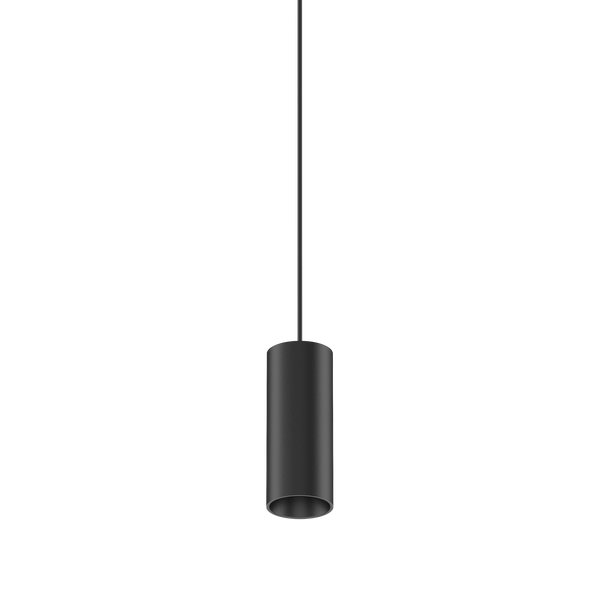

M40-T22-BB3K-36D Cevon M40 Type 22 Dark Art Pendant Spot Black 3000K
Lumens
Watts
570lm
6.5W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M40-T22
Cevon M40 Type 22 Dark Art Pendant Spot Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T22

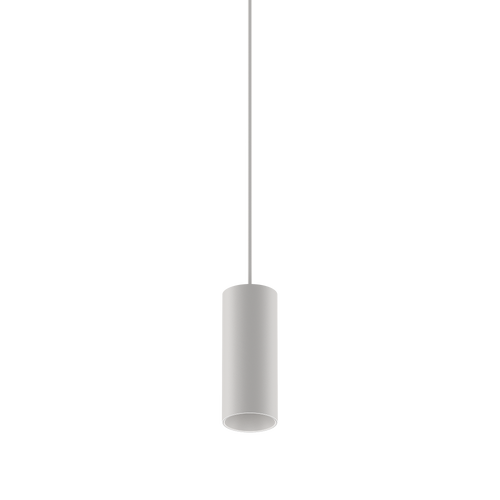

Cevon M40 Type 22 Dark Art Pendant Spot White 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
6.5W
M40-T22

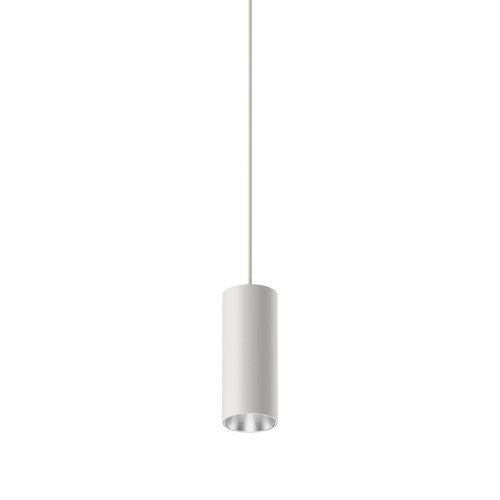

Cevon M40 Type 22 Dark Art Pendant Spot White, Silver 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
6.5W
M40-T22

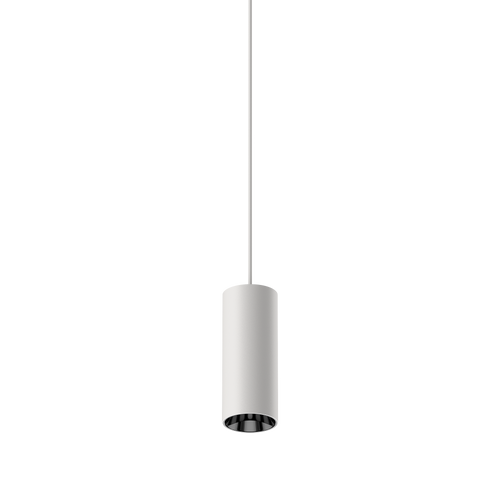

Cevon M40 Type 22 Dark Art Pendant Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T22
Cevon M40 Type 22 Dark Art Pendant Spot White, Gold 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T22

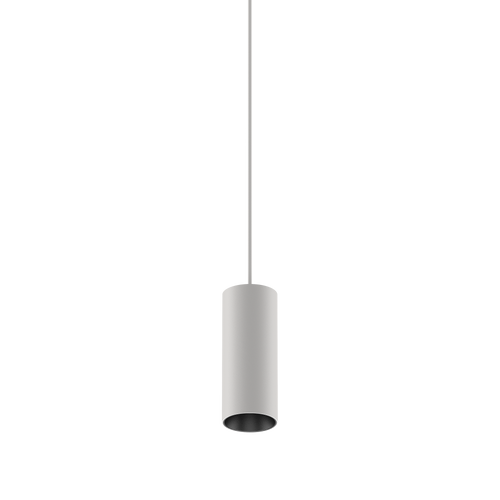

Cevon M40 Type 22 Dark Art Pendant Spot White, Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T22
Cevon M40 Type 22 Dark Art Pendant Spot Black, Silver 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
6.5W
M40-T22
Cevon M40 Type 22 Dark Art Pendant Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T22

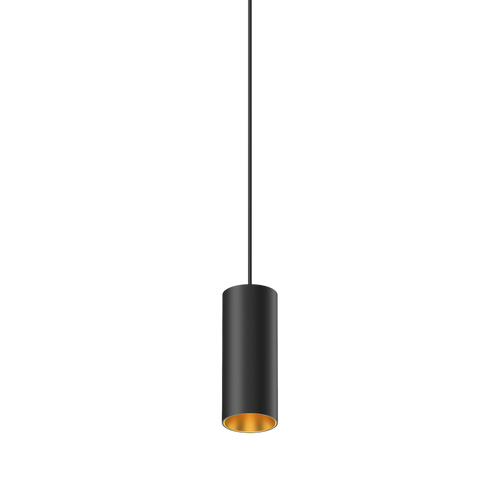

Cevon M40 Type 22 Dark Art Pendant Spot Black, Gold 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
Select Frame
Frame sold separately. Please select below.
F40-RR
Cevon Type Recessed Round Frame for M40 Black
Cut out
Ø57mm
F40-RR
Cevon Type Recessed Round Frame for M40 White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 Black
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 White
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 Black
Cut out
2xØ57mm @53mm centres
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 White
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 Black
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 White
Cut out
2xØ57mm @53mm centres
F40-TL
Cevon Type Trimless Frame for M40 White
Cut out
Ø85mm
SF40-RR-B
Cevon Type Surface for M40 Black
SF40
Cevon Type Surface for M40 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W
120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
6.5W
Lumens
570lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
40mm
Length
<2m (Adjustable)
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
