M40-T3
- Custom Build - Request Availability
Select Module
M40-T3
Cevon M40 Type 3 Dark Art Fixed White 2700K
Temp.
2700K Warm White
Lumens
575lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed White 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Silver 2700K
Temp.
2700K Warm White
Lumens
575lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Silver 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
555lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
7W
M40-T3

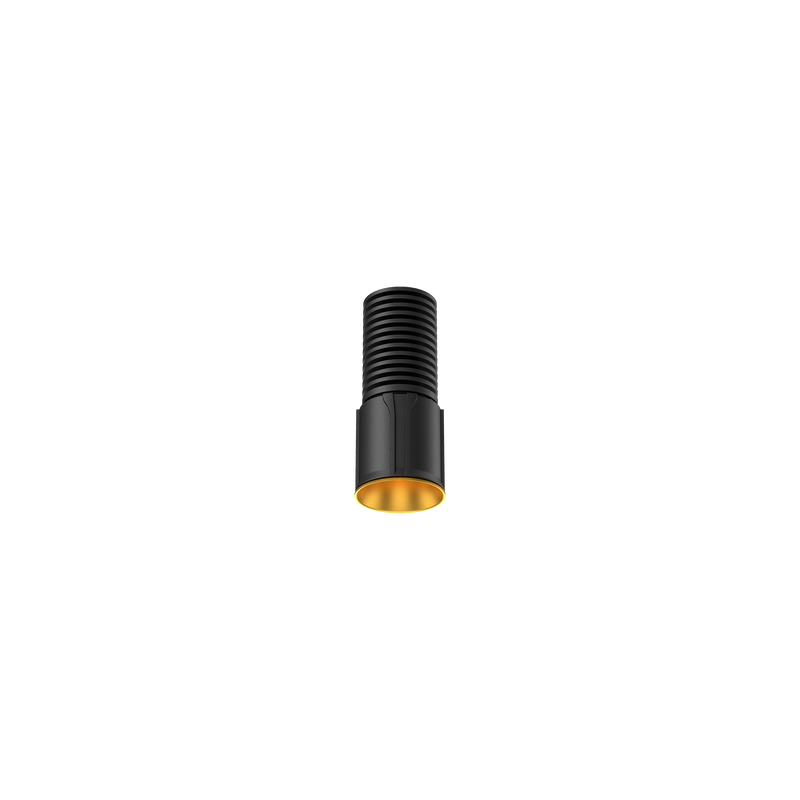

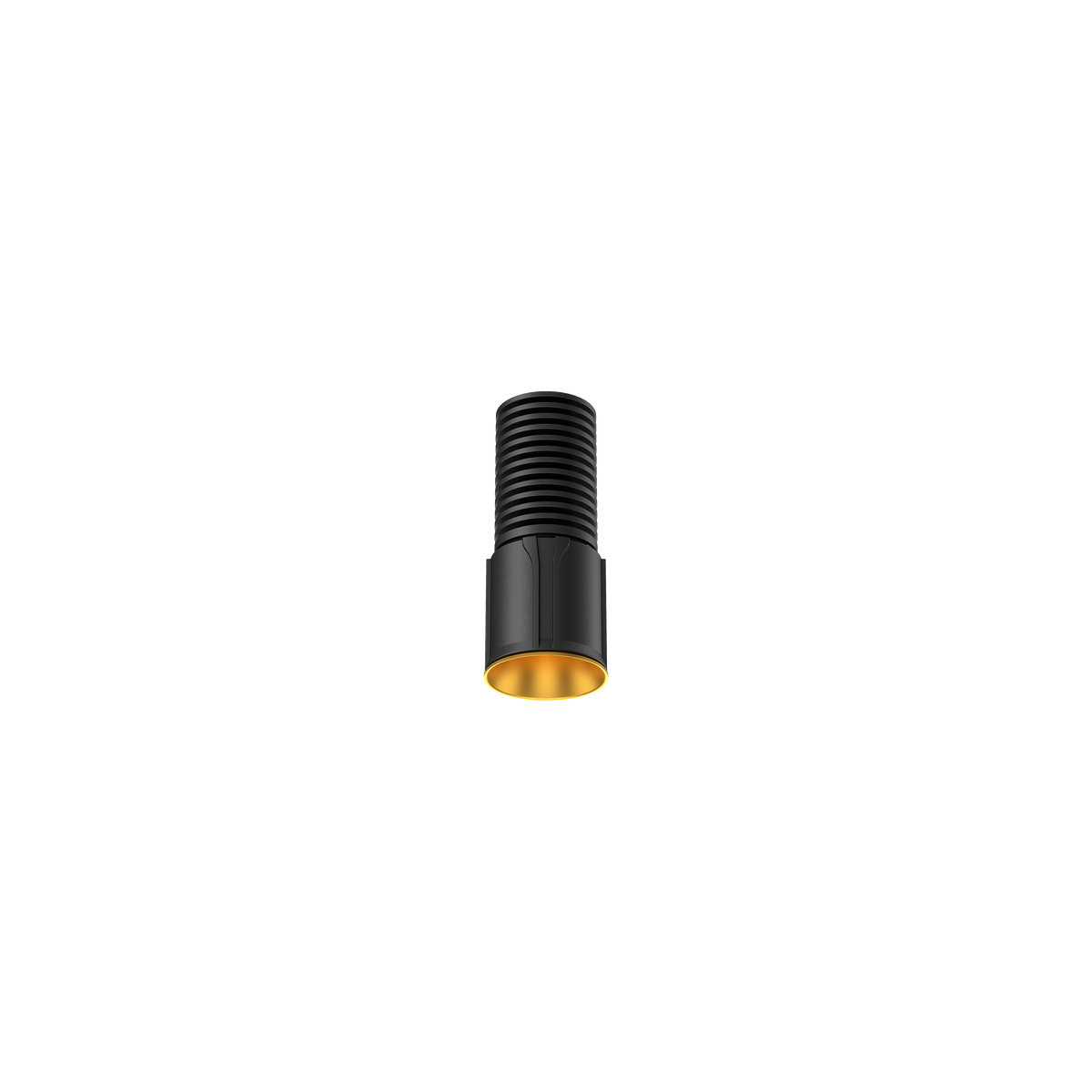

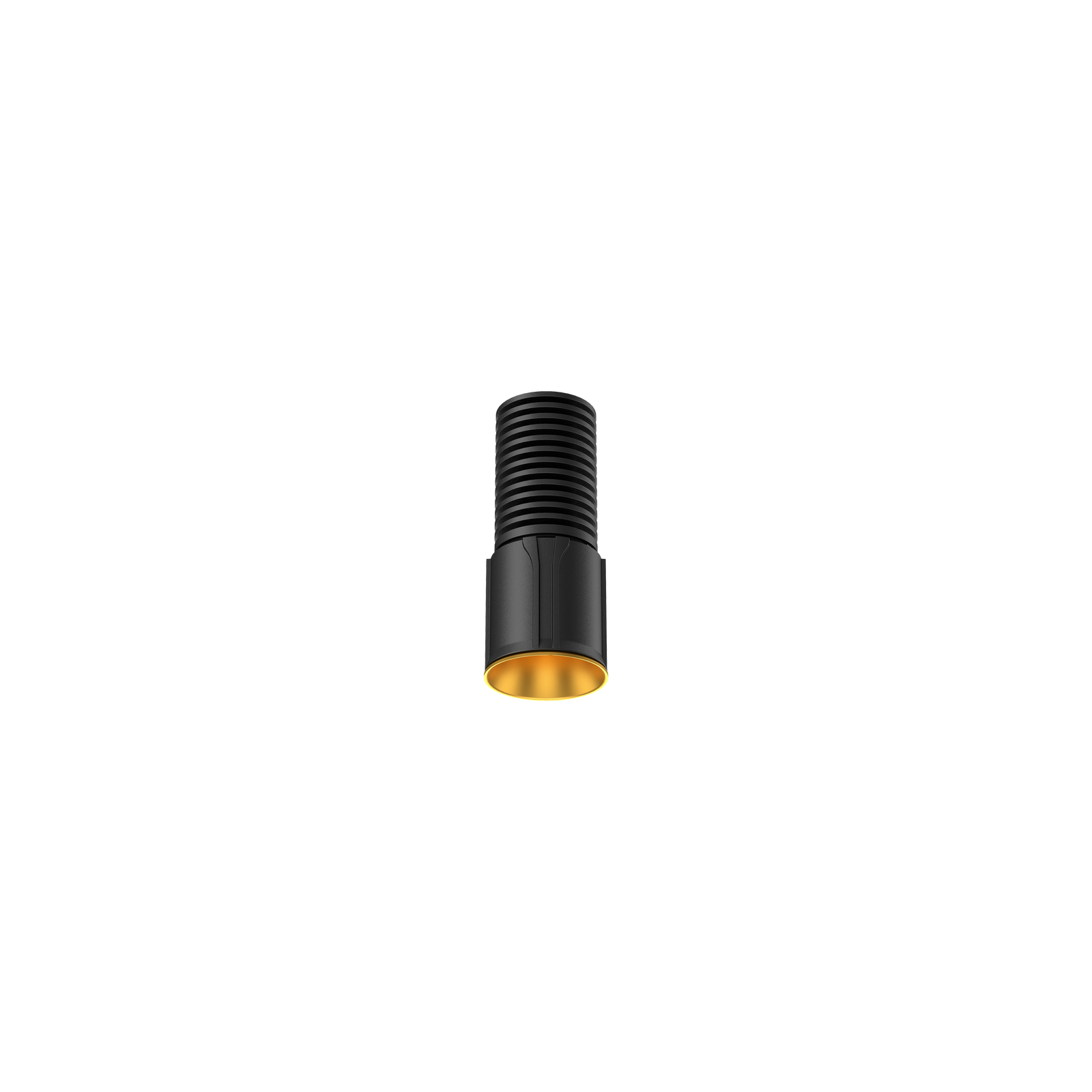

Cevon M40 Type 3 Dark Art Fixed Gold 2700K
Temp.
2700K Warm White
Lumens
555lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Gold 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Black 2700K
Temp.
2700K Warm White
Lumens
555lm
Watts
7W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
7W
Select Frame
Frame sold separately. Please select below.
F40-RR
Cevon Type Recessed Round Frame for M40 Black
Cut out
Ø57mm
F40-RR
Cevon Type Recessed Round Frame for M40 White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 Black
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 White
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 Black
Cut out
2xØ57mm @53mm centres
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 White
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 Black
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 White
Cut out
2xØ57mm @53mm centres
F40-TL
Cevon Type Trimless Frame for M40 White
Cut out
Ø85mm
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W-STR
120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M40-T3-G27K-36D
Finish
Gold
Colour Temp
2700K Warm White
Watts
7W
Lumens
555lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
40mm
Height
110mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M40-T3-G27K-36D
Specifications
None
Resources
