M40-T3-B3K-36D
M40-T3
- Custom Build - Stock Available

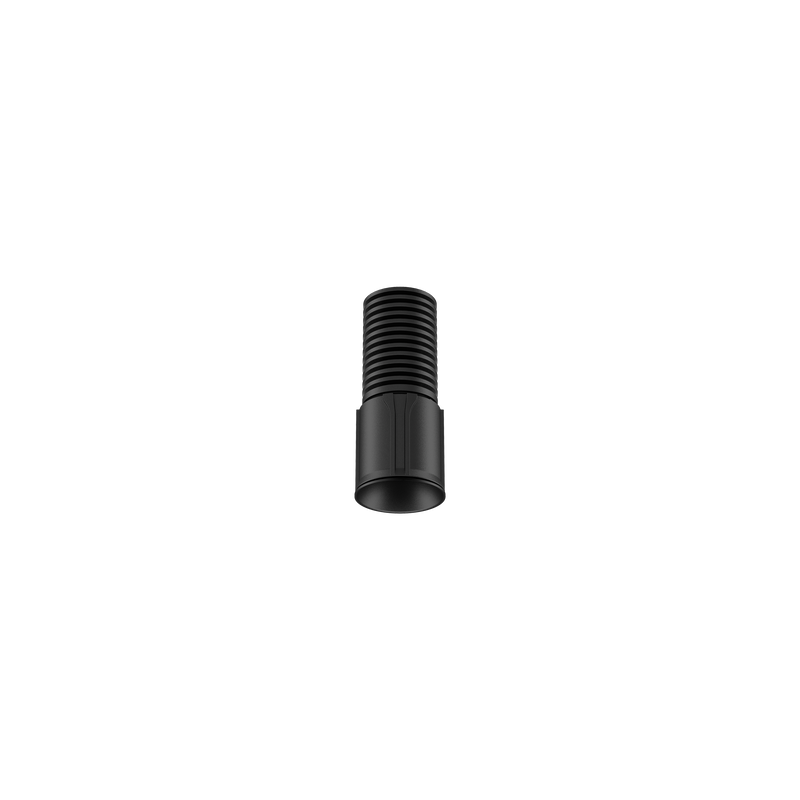

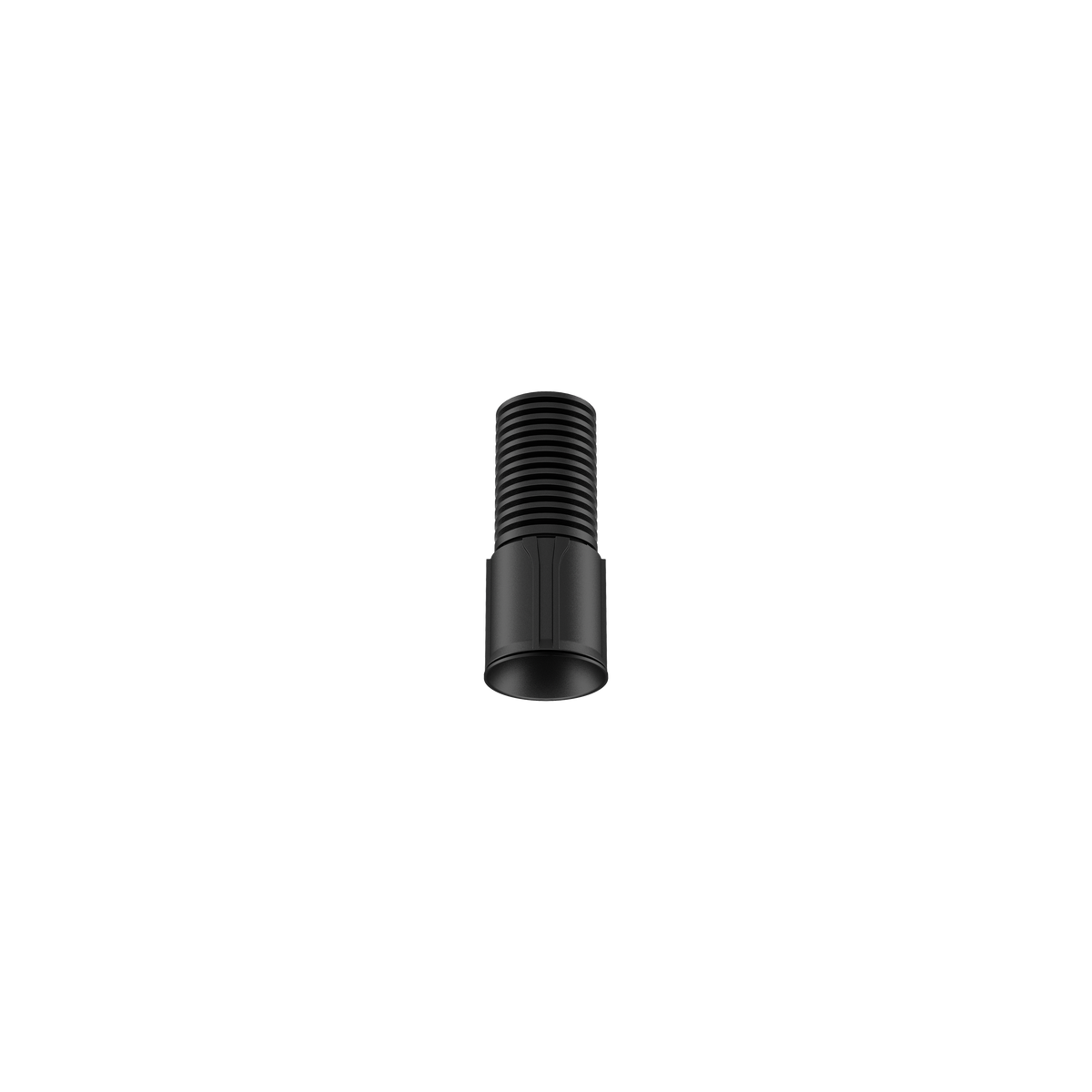

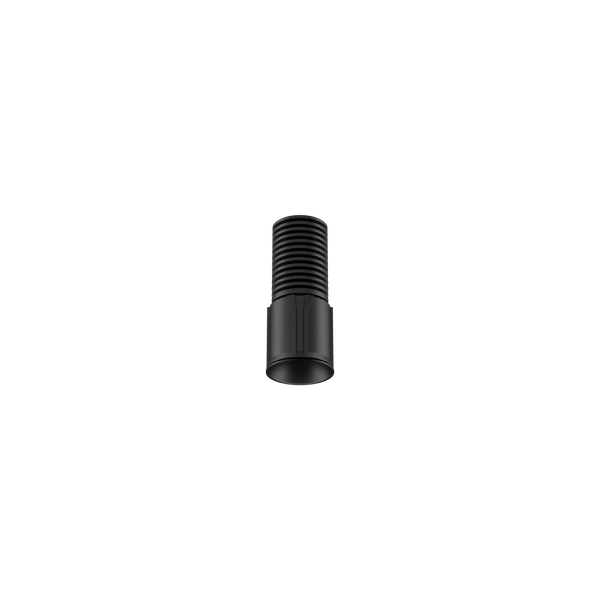

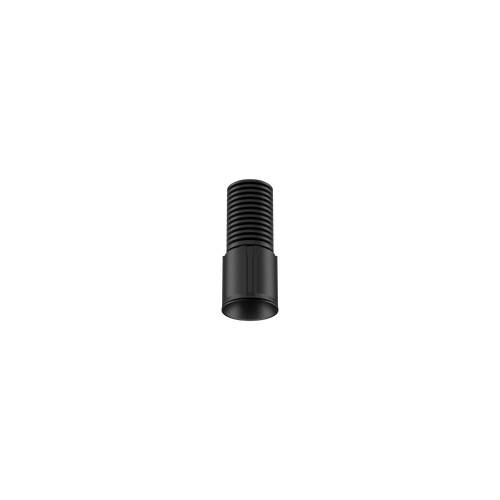

M40-T3-B3K-36D Cevon M40 Type 3 Dark Art Fixed Black 3000K
Lumens
Watts
570lm
6.5W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M40-T3
Cevon M40 Type 3 Dark Art Fixed Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T3

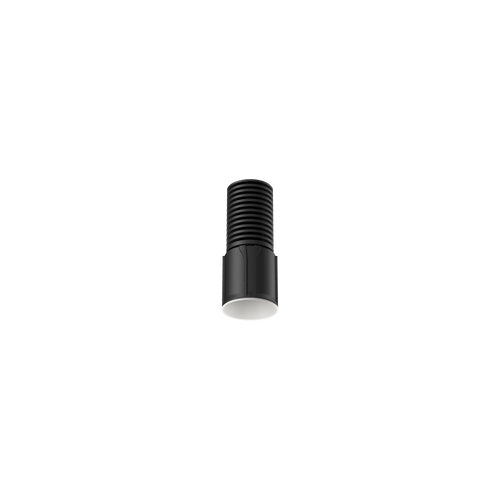

Cevon M40 Type 3 Dark Art Fixed White 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
6.5W
M40-T3
Cevon M40 Type 3 Dark Art Fixed High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Gold 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
6.5W
M40-T3
Cevon M40 Type 3 Dark Art Fixed Silver 3000K
Temp.
3000K Warm White
Lumens
590lm
Watts
6.5W
Select Frame
Frame sold separately. Please select below.
F40-RR
Cevon Type Recessed Round Frame for M40 Black
Cut out
Ø57mm
F40-RR
Cevon Type Recessed Round Frame for M40 White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 Black
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 White
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 Black
Cut out
2xØ57mm @53mm centres
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 White
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 Black
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 White
Cut out
2xØ57mm @53mm centres
F40-TL
Cevon Type Trimless Frame for M40 White
Cut out
Ø85mm
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W
120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
6.5W
Lumens
570lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
40mm
Height
110mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
