LED615-W34KA-EM
LED615
- Checking stock...

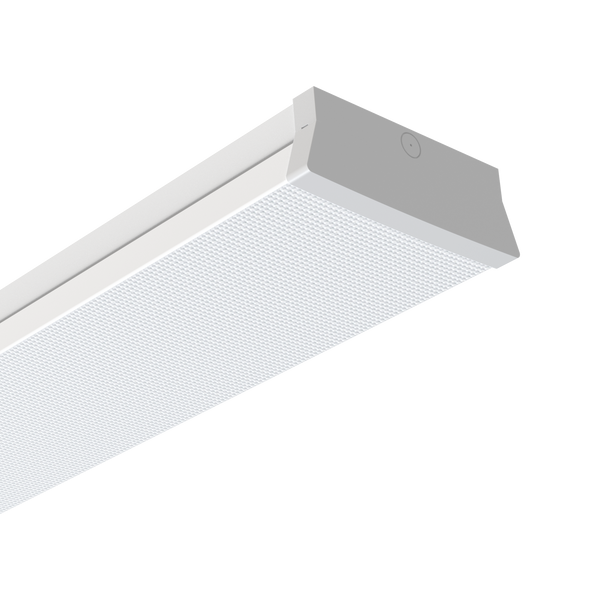

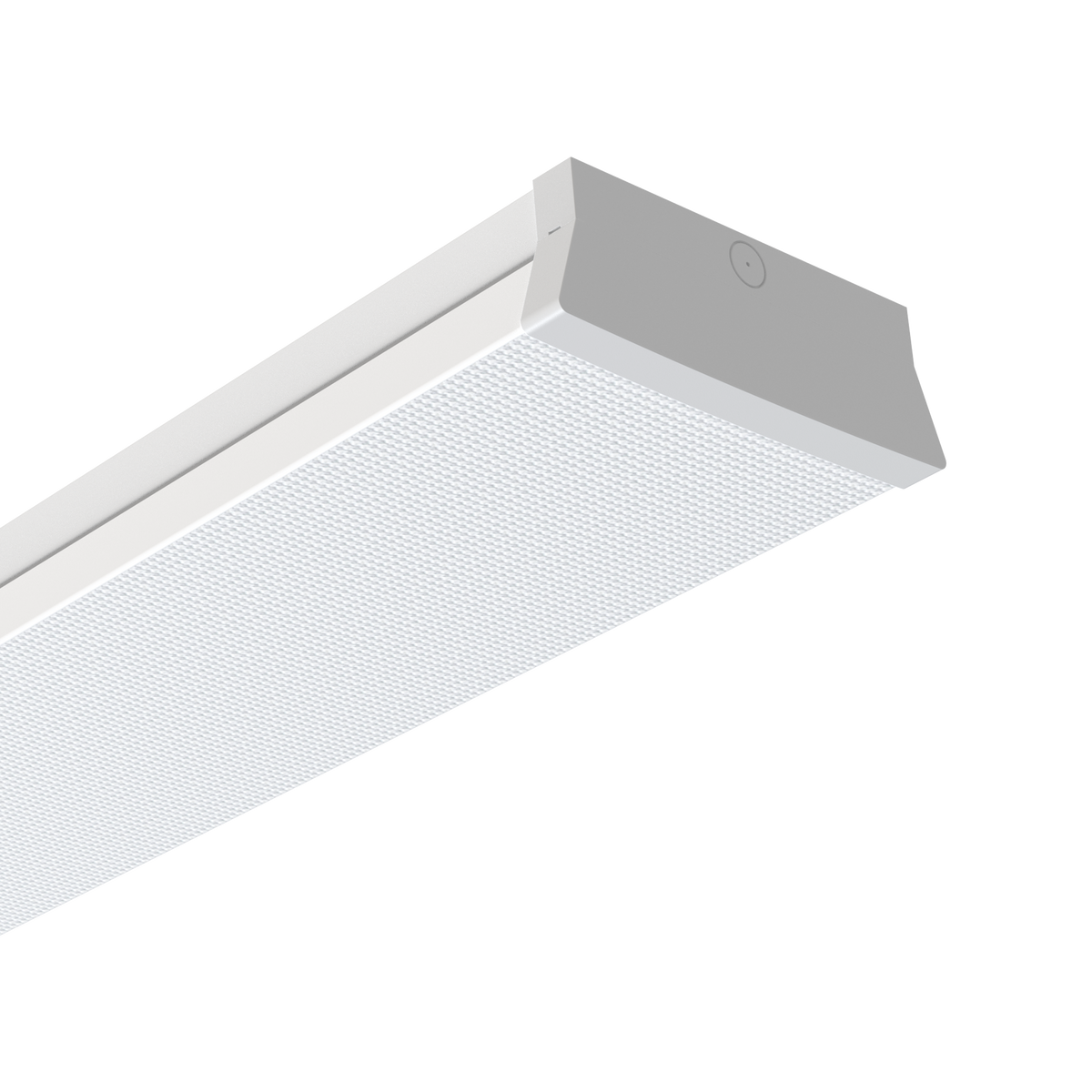

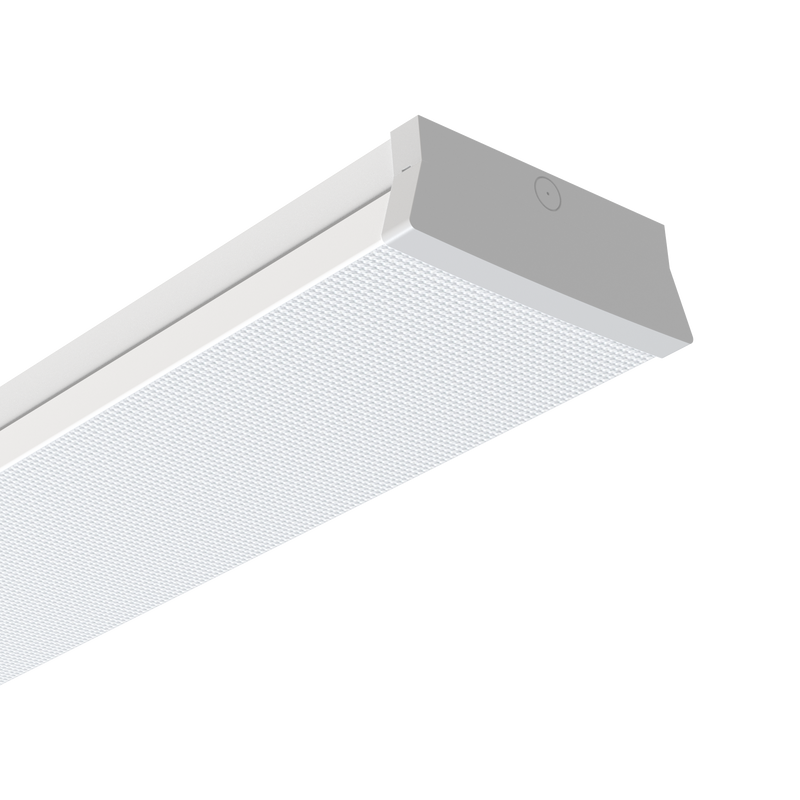

LED615-W34KA-EM Genesis 1520mm 3K/4K Batten Emergency 3000K / 4000K
Lumens
Watts
4700lm, 5350lm, 5800lm or 6100lm (Selectable)
42W, 47W, 50W or 54W
View Options
Select Battens
LED615
Genesis 1520mm 3K/4K Batten Emergency 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4700lm, 5350lm, 5800lm or 6100lm (Selectable)
Watts
42W, 47W, 50W or 54W
LED615
Genesis 1520mm Batten Standard 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3800lm, 4400lm, 5000lm or 5600lm (Selectable)
Watts
28W, 33W, 38W or 43W
LED615
Genesis 1520mm Batten Dimmable 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4700lm, 5350lm, 5800lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 54W
LED615
Genesis 1520mm Batten Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
5600lm
Watts
43W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
42W, 47W, 50W or 54W
Lumens
4700lm, 5350lm, 5800lm or 6100lm (Selectable)
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Non-dimmable
CRI
90
Lifespan
70,000hrs (L80 B50)
Ingress Protection
IP20
Height
72mm
Width
210mm
Length
1520mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
Emergency: 540lm 90mins C0/D80 C90/D43
Material
Steel, PC
Electrical Class
Class I luminaire, requires earth
Driver Included / Incorporated
Driver Incorporated
Ambient Operating Temperature
25°C
Power Factor
0
Impact Rating
IK02
Installation Note
Emergency: 540lm 90mins C0/D80 C90/D43
Warranty
5 Year Warranty
