LED615-W34KA
LED615
- Checking stock...

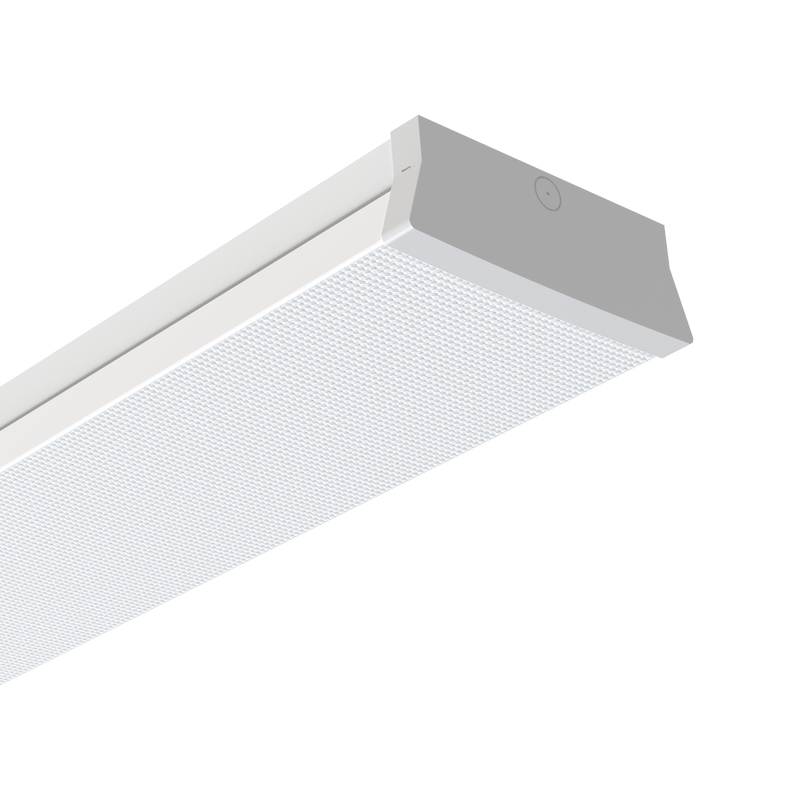

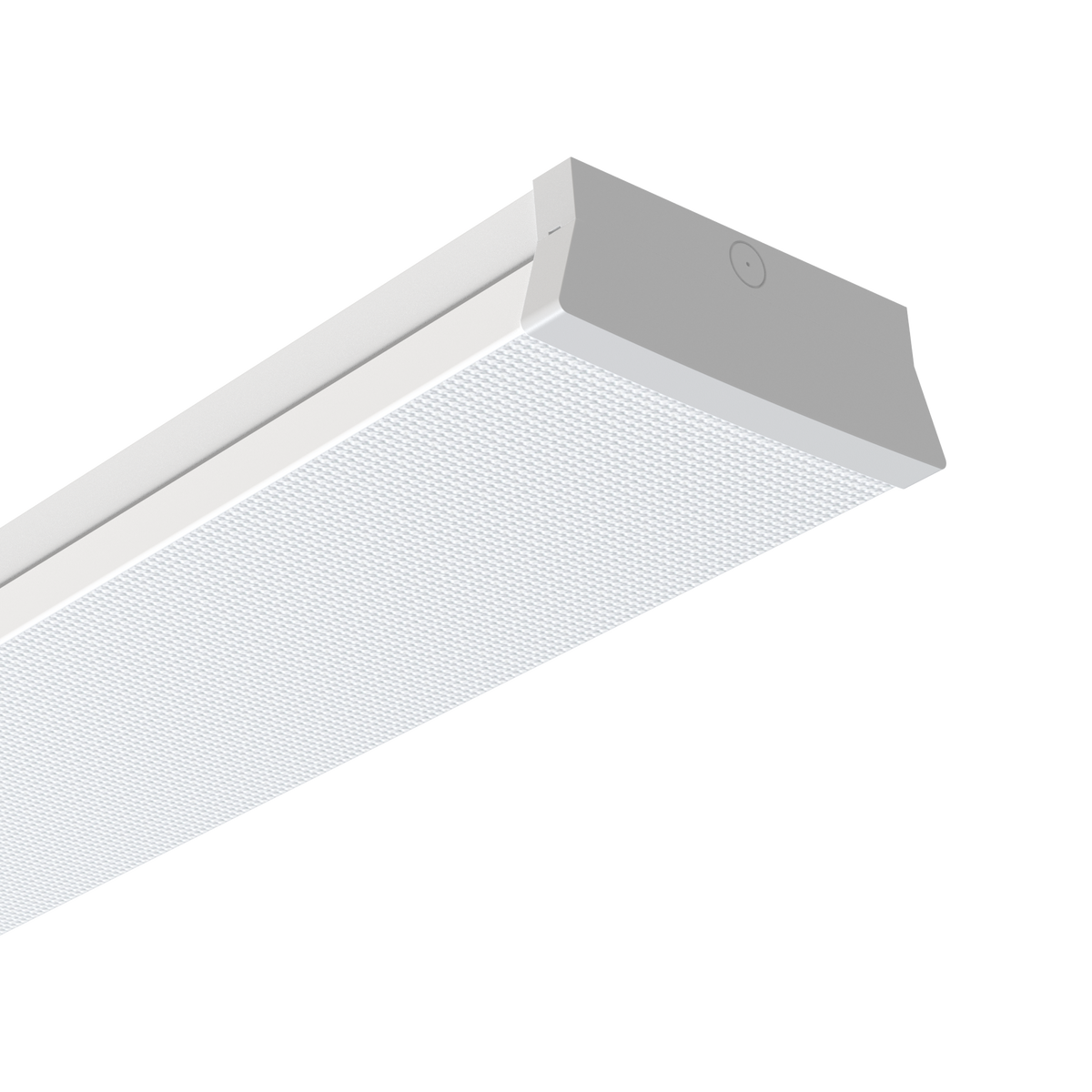

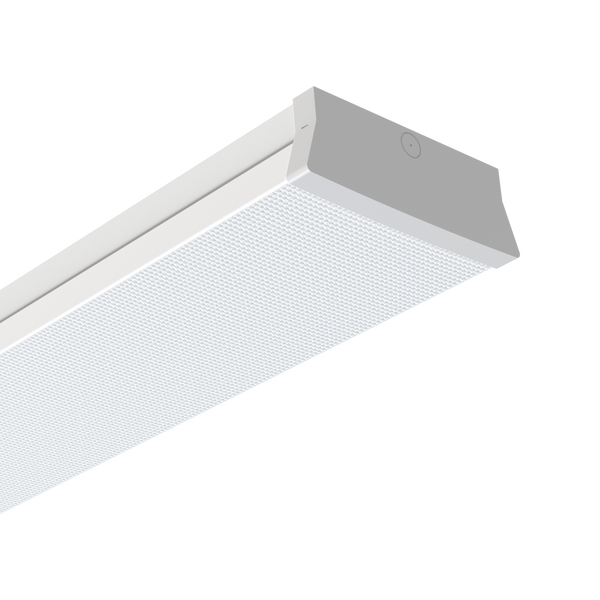

LED615-W34KA Genesis 1520mm Batten Standard 3000K / 4000K
Lumens
Watts
3800lm / 4400lm / 5000lm / 5600lm
28W / 33W / 38W / 43W
View Options
Select Battens
LED615
Genesis 1520mm Batten Standard 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3800lm / 4400lm / 5000lm / 5600lm
Watts
28W / 33W / 38W / 43W
LED615
Genesis 1520mm Batten Dimmable 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4700lm / 5350lm / 5800lm / 6200lm (See spec sheet)
Watts
40W / 46W / 50W / 54W
LED615
Genesis 1520mm Batten Dali 3000K / 4000K
Temp.
3000K / 4000K
Lumens
5600lm
Watts
43W
LED615
Genesis 1520mm 3K/4K Batten Emergency 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4700-6100lm
Watts
42-54W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
28W / 33W / 38W / 43W
Lumens
3800lm / 4400lm / 5000lm / 5600lm
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Non-Dimmable
CRI
90
Lifespan
70,000hrs (L80 B50)
Ingress Protection
IP54
Height
72mm
Width
210mm
Length
1520mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Steel, PC
Electrical Class
Class I luminaire, requires earth
Driver Included / Incorporated
Driver Incorporated
Ambient Operating Temperature
-20..+45°C
Weight
4kg
Power Factor
0
Impact Rating
IK05
Warranty
5 Year Warranty
