X55-STS27K-36D
X55
- Custom Build - Request Availability

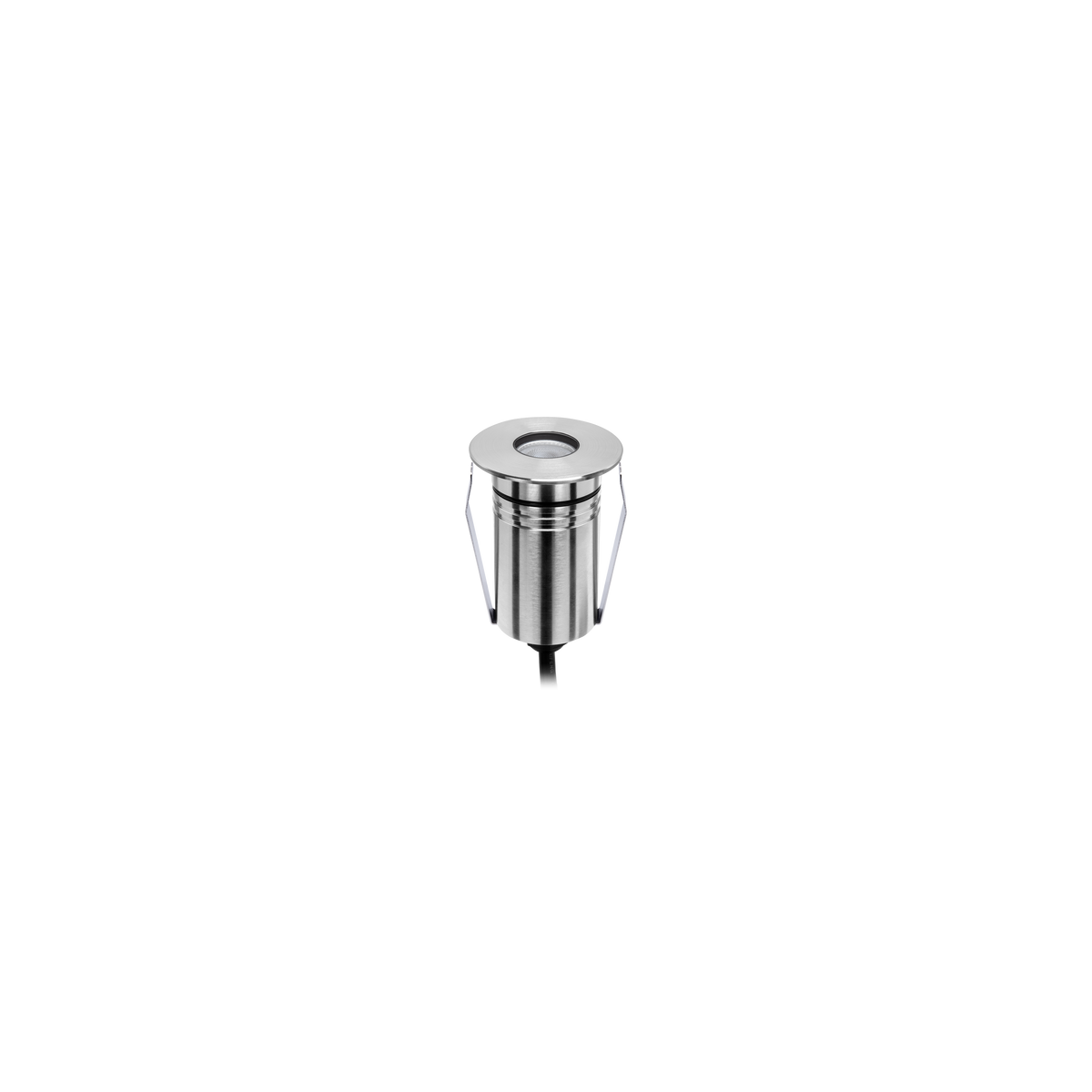

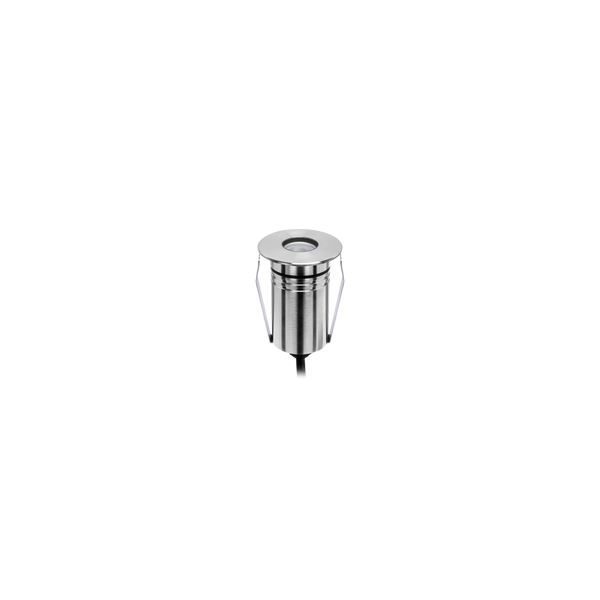

X55-STS27K-36D Exterior Recessed Standard Up or Down 316 Stainless Steel 2700K 36°
Lumens
Watts
170lm
2.5W
View Options
Add Driver
driver not included
View Options
-
X55-X62 In-wall Installation Sleeve
-
X55-X62 Inground Installation Housing
-
Exterior Feed Cable - 1M
-
Exterior Feed Cable - 10M
-
Exterior Extension Loop Cable - 1.5M
-
Exterior Extension Loop Cable - 2M
-
Exterior Extension Loop Cable - 3M
-
Exterior Extension Loop Cable - 5M
-
Exterior Extension Loop Cable - 10M
-
Two Way Spot Socket
-
Three Way Spot Socket
Select Multi-Use Effect
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 2700K 36°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 27K 19°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 27K 36°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 27K 60°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55

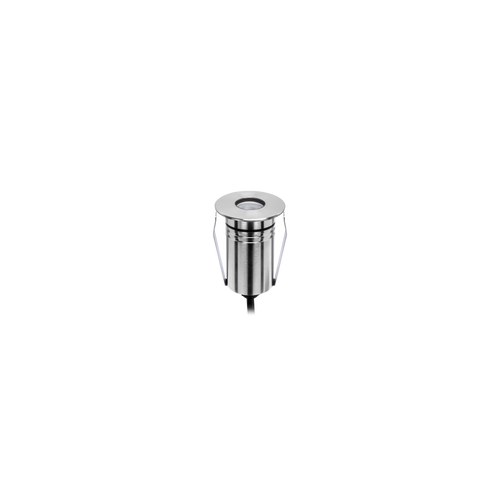

Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 3K 19°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 3K 36°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 3K 60°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 4K 19°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 4K 36°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down Dim 316 Stainless Steel 4K 60°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 2700K 60°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 2700K 19°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 3000K 60°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 3000K 19°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 3000K 36°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 4000K 36°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 4000K 60°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel 4000K 19°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel RGBW 36°
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel RGBW 60°
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
X55
Exterior Recessed Standard Up or Down 316 Stainless Steel RGBW 19°
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
Select driver
driver sold separately. Please select below.
Non Dimmable
DCV24-150W-IP
IP67 24V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV24-200W-IP
IP67 24V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-320W-IP
IP67 24V 320W Constant Voltage Non-dimmable Driver
Watts
0W-320W
Specifications
Finish
Stainless Steel
Colour Temp
2700K Warm White
Watts
2.5W
Lumens
170lm
Beam Angle
36°
Input
10-25V DC (Constant Voltage)
Dimming / Control
Non-Dimmable
CRI
80
Lifespan
40,000hrs (L80 B10)
Ingress Protection
IP67
Cut Out
Ø43mm
Diameter
55mm
Height
82mm
Classification
IC-F
Material
316 Stainless Steel
Electrical Class
Class III
Driver Included / Incorporated
Driver not included, sold separately
Impact Rating
IK10
Warranty
5 Year Warranty
Driver
None
