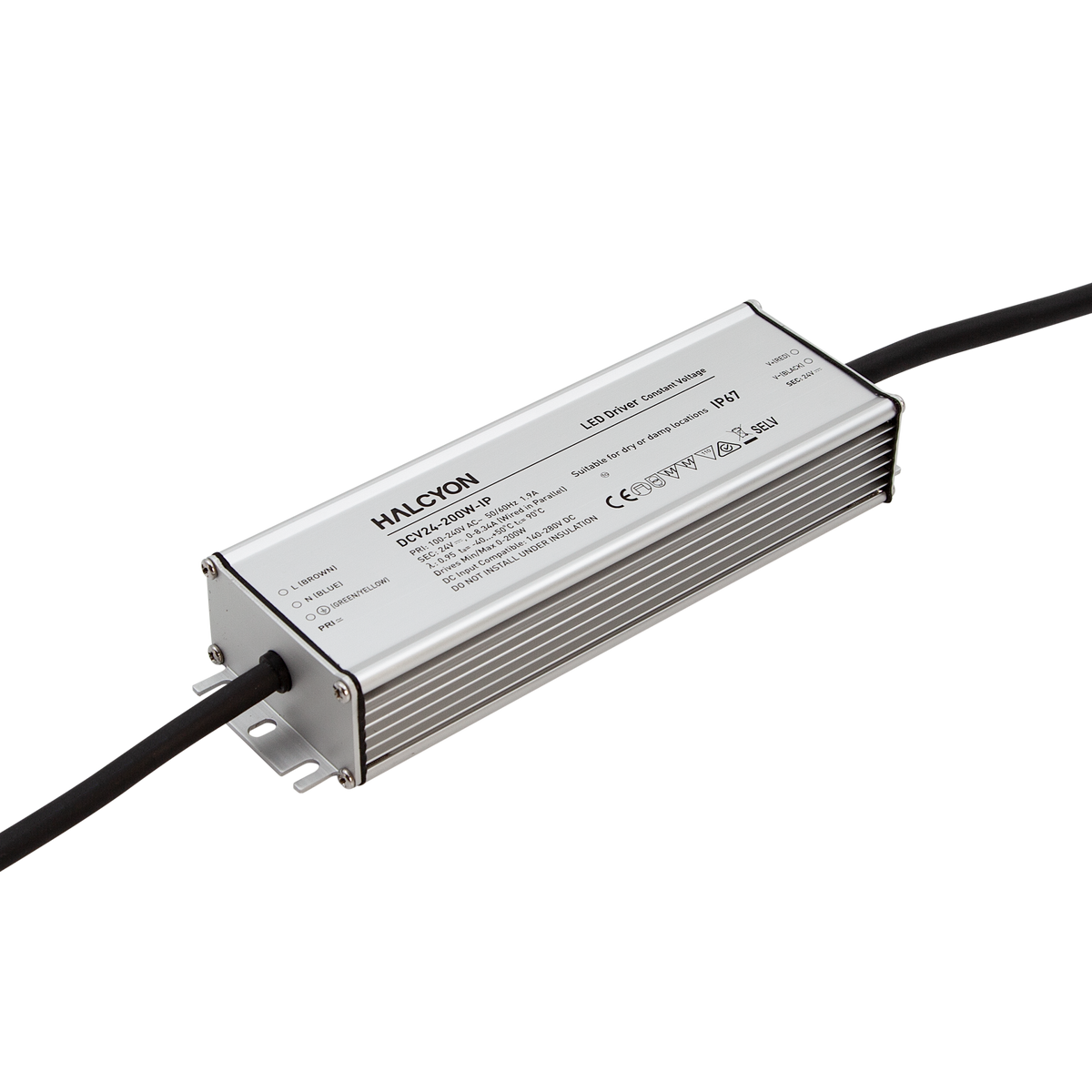

IP67 24V 200W Constant Voltage Non-dimmable Driver

DCV24-200W-IP

All DCV24-200W-IP

DCV24-200W-IP

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:24V DC CV 0-200W IP67
Non dimmable
IP67 24V 200W Constant Voltage Non-dimmable Driver

DCV24-200W-IP IP67 24V 200W Constant Voltage Non-dimmable Driver

Watts

0W-200W

Watts

0W-200W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

IP67 24V 200W Constant Voltage Non-dimmable Driver

Non dimmable

DCV24-200W-IP

Watts

0W-200W

Input

100-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP67

Height

32mm

Width

58mm

Length

191mm

Electrical Class

Class I

Driver Output Voltage

24V

Driver Output Current

0-8.34A

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty

Downloads

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login
Download All
IP67 24V 200W Constant Voltage Non-dimmable Driver
