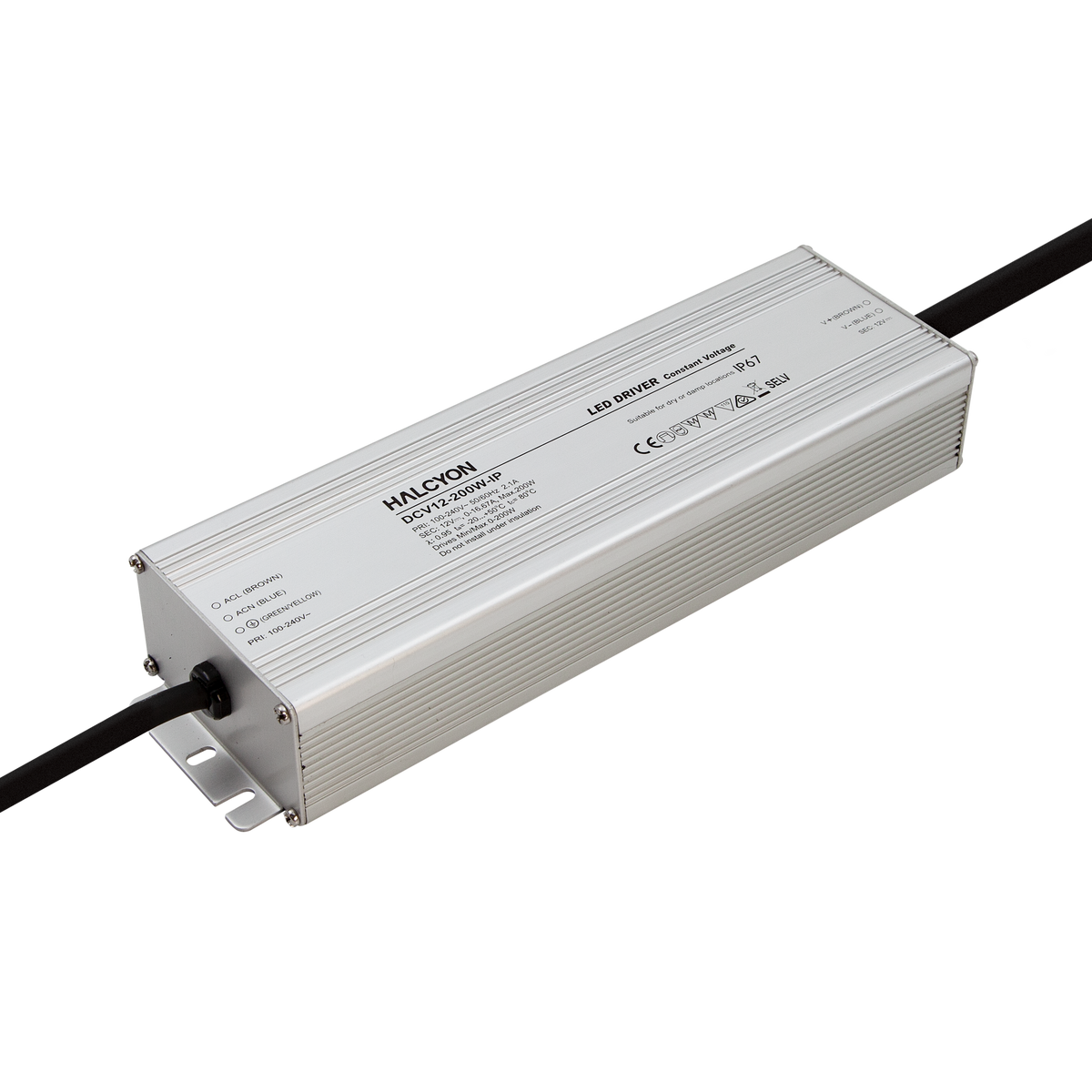

IP67 12V 200W Constant Voltage Non-dimmable Driver

DCV12-200W-IP

All DCV12-200W-IP

DCV12-200W-IP

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:12V DC CV 0-200W IP67
Non dimmable
IP67 12V 200W Constant Voltage Non-dimmable Driver

DCV12-200W-IP IP67 12V 200W Constant Voltage Non-dimmable Driver

Watts

0W-200W

Watts

0W-200W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

IP67 12V 200W Constant Voltage Non-dimmable Driver

Non dimmable

DCV12-200W-IP

Watts

0W-200W

Input

100-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP67

Height

40mm

Width

72mm

Length

249mm

Electrical Class

Class I

Driver Output Voltage

12V

Driver Output Current

0-16.67A

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
