DCV12-150W-IP
DCV12-150W-IP
- Checking stock...
Driver Non-Dimmable Pri:240V Sec:12V DC CV 0-150W IP67
Non dimmable

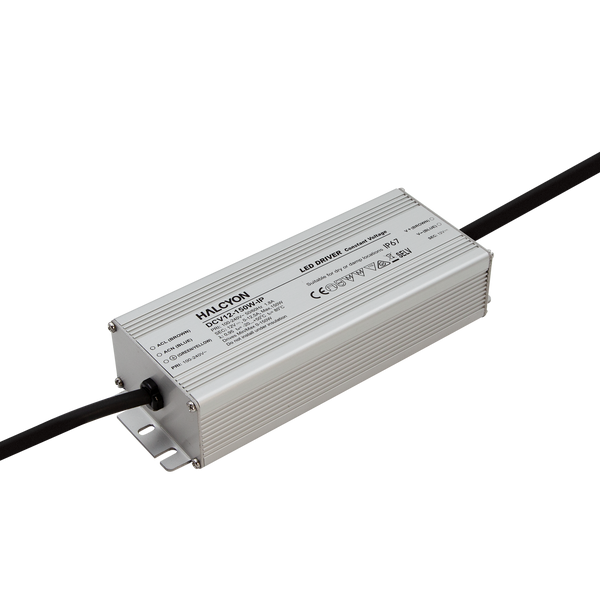

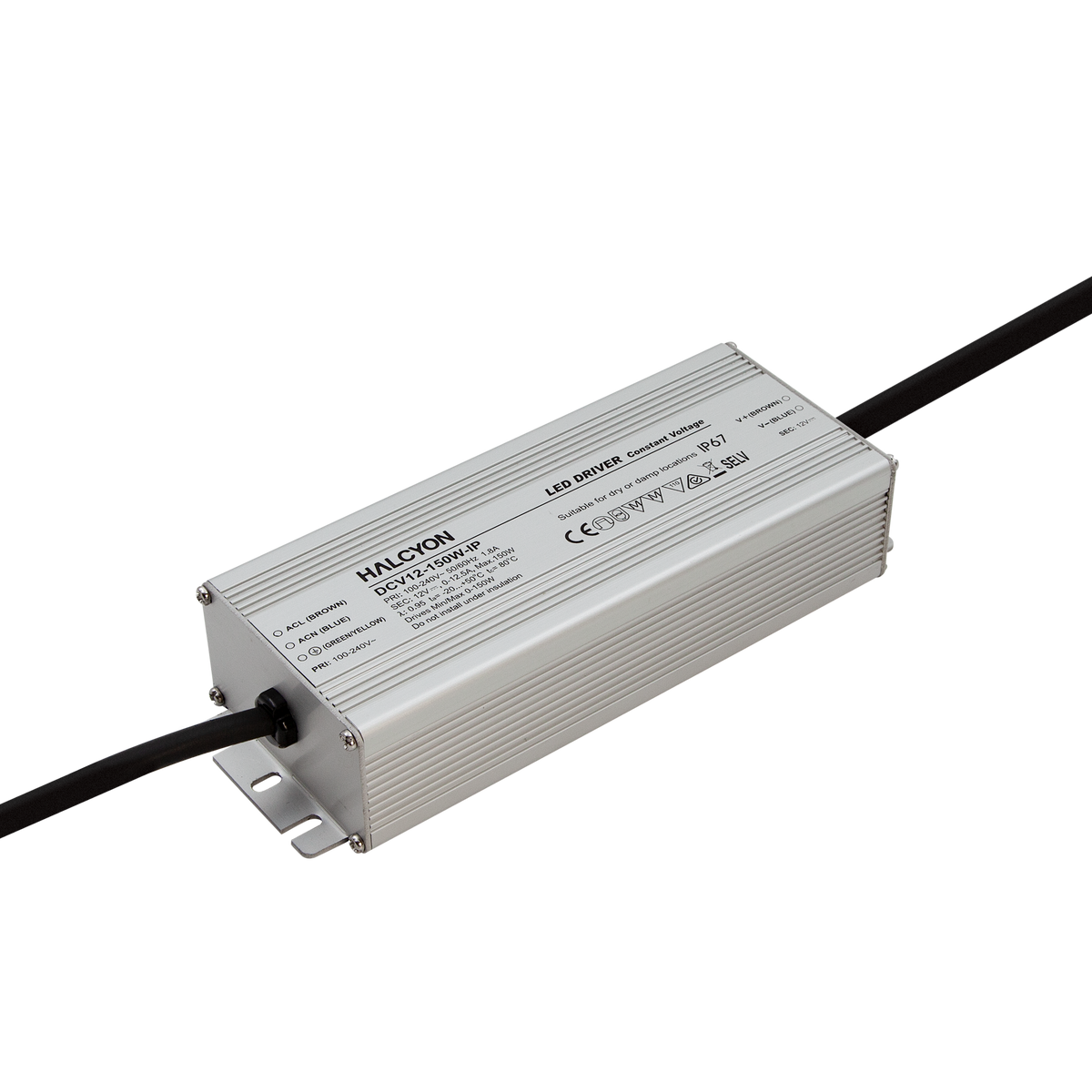

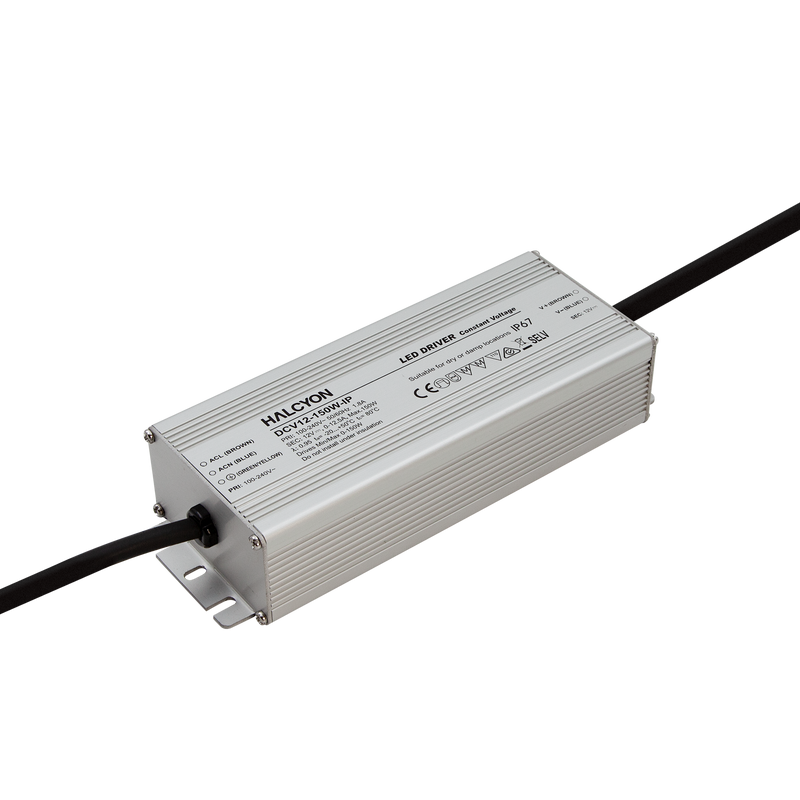

DCV12-150W-IP IP67 12V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
Watts
0W-150W
Specifications
Watts
0W-150W
Input
100-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP67
Height
40mm
Width
70mm
Length
191mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Electrical Class
Class I
Driver Output Voltage
12V
Driver Output Current
0-12.5A
Ambient Operating Temperature
-20..+50°C
Power Factor
0
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
