X31-STS27K-17D
X31
- Custom Build - Stock Available
X31-STS27K-17D Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 27K 17°
Lumens
Watts
60lm
1W
View Options
Add Driver
driver not included
View Options
-
In-Wall Installation Sleeve (X25-X32)
-
1m Feed Cable (X25-X32)
-
10m Feed Cable (X25-X32)
-
1.5m Loop/Extension Cable (X25-X32)
-
3m Loop/Extension Cable (X25-X32)
-
5m Loop/Extension Cable (X25-X32)
-
10m Loop/Extension Cable (X25-X32)
-
Two Way Spot Socket (X25-X32)
-
Three Way Spot Socket (X25-X32)
Select Multi-Use Effect
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 27K 17°
Temp.
2700K
Cut out
Ø19mm
Lumens
60lm
Watts
1W
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 27K 36°
Temp.
2700K Warm White
Cut out
Ø19mm
Lumens
60lm
Watts
1W
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 3K 17°
Temp.
3000K Warm White
Cut out
Ø19mm
Lumens
60lm
Watts
1W
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 3K 36°
Temp.
3000K Warm White
Cut out
Ø19mm
Lumens
60lm
Watts
1W
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 4K 17°
Temp.
4000K Natural White
Cut out
Ø19mm
Lumens
60lm
Watts
1W
X31

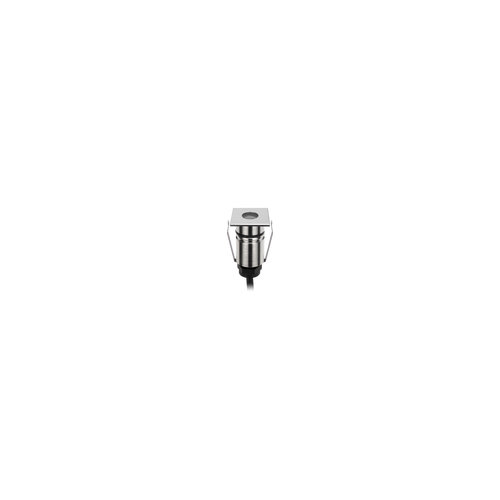

Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel 4K 36°
Temp.
4000K Natural White
Cut out
Ø19mm
Lumens
60lm
Watts
1W
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel RGBW 17°
Temp.
RGBW
Cut out
Ø19mm
Lumens
Ambient light source
Watts
1W
X31
Exterior Recessed Mini Squ Std Up or Down 316 Stainless Steel RGBW 36°
Temp.
RGBW
Cut out
Ø19mm
Lumens
Ambient light source
Watts
1W
Select driver
driver sold separately. Please select below.
Non Dimmable
DCV12-40W-IP
IP67 12V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV12-75W-IP
IP67 12V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
DCV12-150W-IP
IP67 12V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV12-200W-IP
IP67 12V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-40W-IP
IP67 24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV24-75W-IP
IP67 24V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
DCV24-150W-IP
IP67 24V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV24-200W-IP
IP67 24V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-320W-IP
IP67 24V 320W Constant Voltage Non-dimmable Driver
Watts
0W-320W
Specifications
Finish
Stainless Steel
Colour Temp
2700K
Watts
1W
Lumens
60lm
Beam Angle
17°
Input
8-25V DC (Constant Voltage)
Dimming / Control
Non-Dimmable
CRI
80
Lifespan
40,000hrs (L80 B10)
Ingress Protection
IP67
Cut Out
Ø19mm
Height
41mm
Width
25mm
Length
25mm
Classification
IC-F
Material
316 Stainless Steel
Electrical Class
Class III
Driver Included / Incorporated
Driver not included, sold separately
Impact Rating
IK10
Warranty
5 Year Warranty
Driver
None
Downloads
