X26
- Custom Build - Request Availability
Configure your X26 8 options

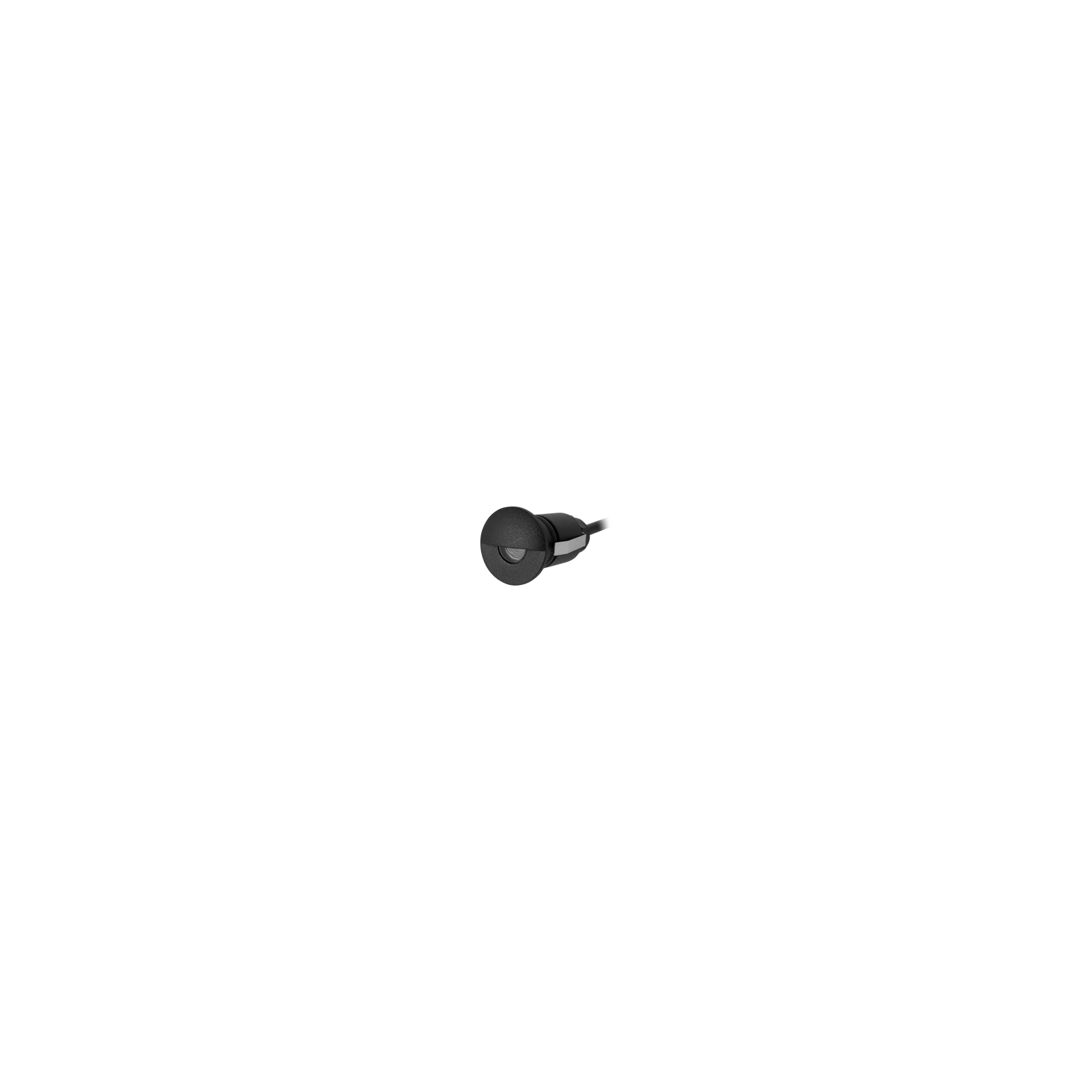

X26-B3K-17D Exterior Recessed Mini Eyelid Black 3000K 17°
Lumens
Watts
30lm
1W
Not included
Please select from options
-
In-Wall Installation Sleeve (X25-X32)
-
1m Feed Cable (X25-X32)
-
10m Feed Cable (X25-X32)
-
1.5m Loop/Extension Cable (X25-X32)
-
3m Loop/Extension Cable (X25-X32)
-
5m Loop/Extension Cable (X25-X32)
-
10m Loop/Extension Cable (X25-X32)
-
Two Way Spot Socket (X25-X32)
-
Three Way Spot Socket (X25-X32)
Select Multi-Use Effect
Exterior Recessed Mini Eyelid Black 2700K 17°
Temp.
2700K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
Exterior Recessed Mini Eyelid Black 2700K 36°
Temp.
2700K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
Exterior Recessed Mini Eyelid Black 3000K 17°
Temp.
3000K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
Exterior Recessed Mini Eyelid Black 3000K 36°
Temp.
3000K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
Exterior Recessed Mini Eyelid Black 4000K 17°
Temp.
4000K Natural White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
Exterior Recessed Mini Eyelid Black 4000K 36°
Temp.
4000K Natural White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
Exterior Recessed Mini Eyelid Black RGBW 17°
Temp.
RGBW
Cut out
Ø19mm
Lumens
Ambient light source
Watts
1W
Exterior Recessed Mini Eyelid Black RGBW 36°
Temp.
RGBW
Cut out
Ø19mm
Lumens
Ambient light source
Watts
1W
Select driver
driver sold separately. Please select below.
Non Dimmable
DCV12-40W-IP
IP67 12V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV12-60W-IP-V2
IP67 12V 60W Constant Voltage Non-dimmable Driver
Watts
0-60W
DCV12-75W-IP
IP67 12V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
DCV12-150W-IP
IP67 12V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV12-200W-IP
IP67 12V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-40W-IP
IP67 24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV24-60W-IP-V2
IP67 24V 60W Constant Voltage Non-dimmable Driver
Watts
0-60W
DCV24-75W-IP
IP67 24V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
DCV24-150W-IP
IP67 24V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV24-200W-IP
IP67 24V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-320W-IP
IP67 24V 320W Constant Voltage Non-dimmable Driver
Watts
0W-320W
Specifications
X26-B3K-17D
Cut Out
Ø19mm
Finish
Black
Colour Temp
3000K Warm White
Watts
1W
Lumens
30lm
Beam Angle
17°
Input
8-25V DC (Constant Voltage)
Dimming / Control
Non-Dimmable
CRI
80
Lifespan
40,000hrs (L80 B10)
Ingress Protection
IP67
Diameter
25mm
Height
45mm
Classification
IC-F
Material
316 Stainless Steel
Electrical Class
Class III
Driver
Not included, Driver sold separately
Impact Rating
IK10
Warranty
5 Year Warranty
Specifications
None
