R904-W34
R904
- Custom Build - Stock Available
R904-W34 Designline Square Textured White 3000K / 4000K - c/w driver
Lumens
Watts
110lm
3W
View Options
DCC700-DM-4W-IP
Watts
2W-4W
Watts
2W-4W
-
Concrete installation housing for R902/R904
Select Wall

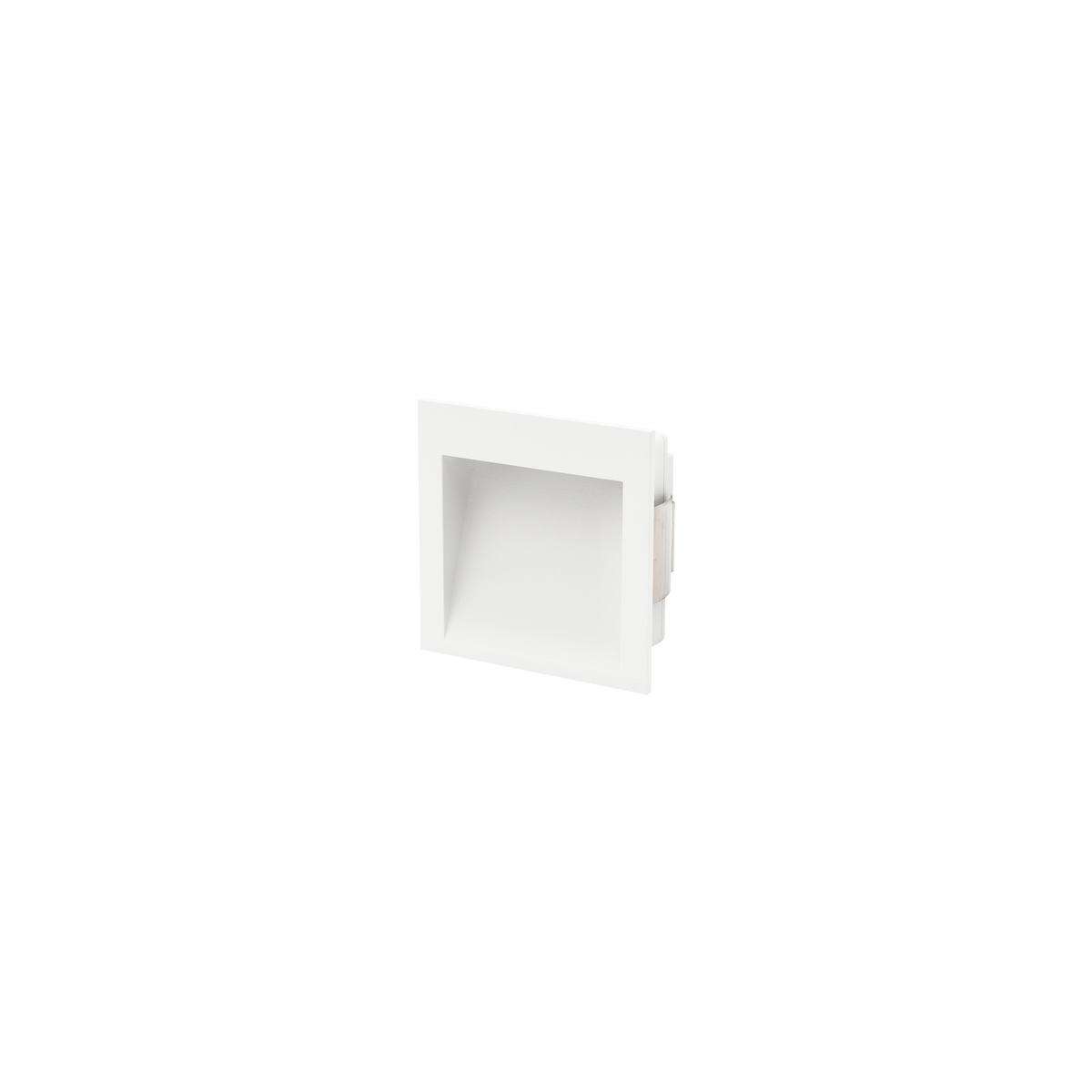

R904
Designline Square Textured White 3000K / 4000K - c/w driver
Temp.
Selectable 3000K Warm White or 4000K Natural White
Cut out
See Specification Sheet
Lumens
110lm
Watts
3W

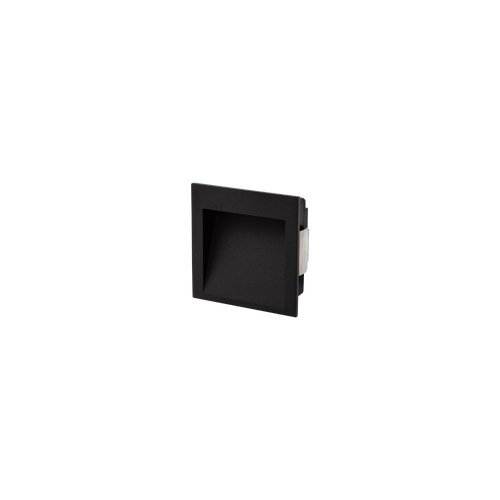

R904
Designline Square Textured Black 3000K / 4000K - c/w driver
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
110lm
Watts
3W

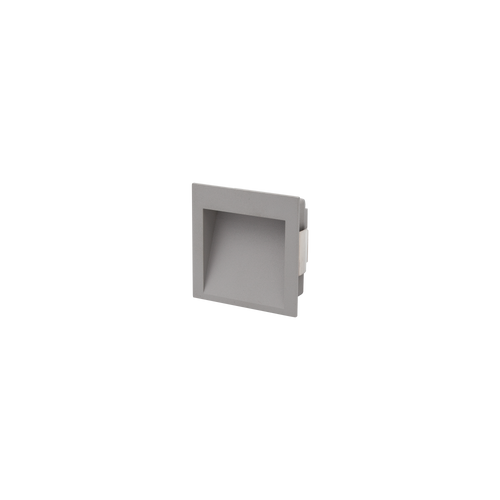

R904
Designline Square Silver 3000K / 4000K - c/w driver
Temp.
3000K or 4000K (Selectable)
Cut out
See Specification Sheet
Lumens
110lm
Watts
3W
Specifications
Finish
White
Colour Temp
Selectable 3000K Warm White or 4000K Natural White
Watts
3W
Lumens
110lm
Beam Angle
80°
Input
240V AC
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B20)
Ingress Protection
IP65
Cut Out
See Specification Sheet
Height
31mm
Width
80mm
Length
80mm
Binning
SDCM 3
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
700mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP65
Height
20mm
Width
30mm
Length
48mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Downloads
