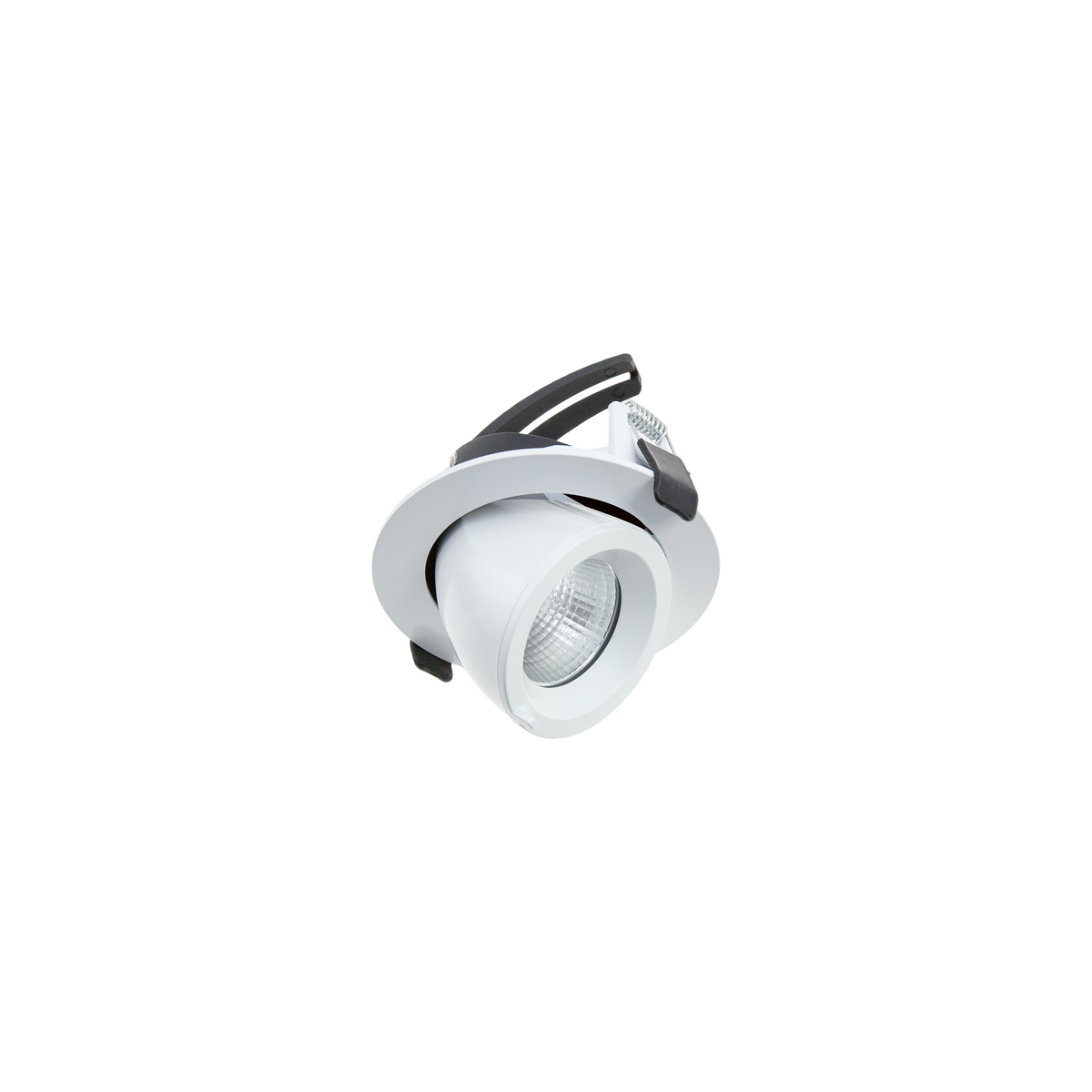

R867 WWL Drop Tilt/Rotate Medium Downlight White 3000K
Lumens
Watts
Tilt Angle
1100lm
13W
+45° Down / -15° Up
View Options
Add Driver
driver not included
View Options
-
20° Reflector (for R867)
Select Downlights
R867
Drop Tilt/Rotate Medium Downlight White 3000K
Temp.
3000K Warm White
Tilt Angle
+45° Down / -15° Up
Cut out
100mm
Lumens
1100lm
Rotate Angle
355°
Watts
13W
R867
Drop Tilt/Rotate Medium Downlight White 4000K
Temp.
4000K Natural White
Tilt Angle
+45° Down / -15° Up
Cut out
100mm
Lumens
1200lm
Rotate Angle
355°
Watts
13W
R867
Drop Tilt/Rotate Medium Downlight Black 3000K
Temp.
3000K Warm White
Tilt Angle
+45° Down / -15° Up
Cut out
100mm
Lumens
1100lm
Rotate Angle
355°
Watts
13W
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Non Dimmable
DCC350-20W
350mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
Specifications
Colour Temp
3000K Warm White
Watts
13W
Lumens
1100lm
Beam Angle
50°
Input
350mA
Dimming / Control
Dimmable
CRI
90
Lifespan
40,000hrs
Tilt Angle
+45° Down / -15° Up
Rotate Angle
355°
Cut Out
100mm
Diameter
112mm
Height
88mm
Binning
SDCM 3
Classification
IC/CA135
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
