R835 S4
R835
- Custom Build - Stock Available

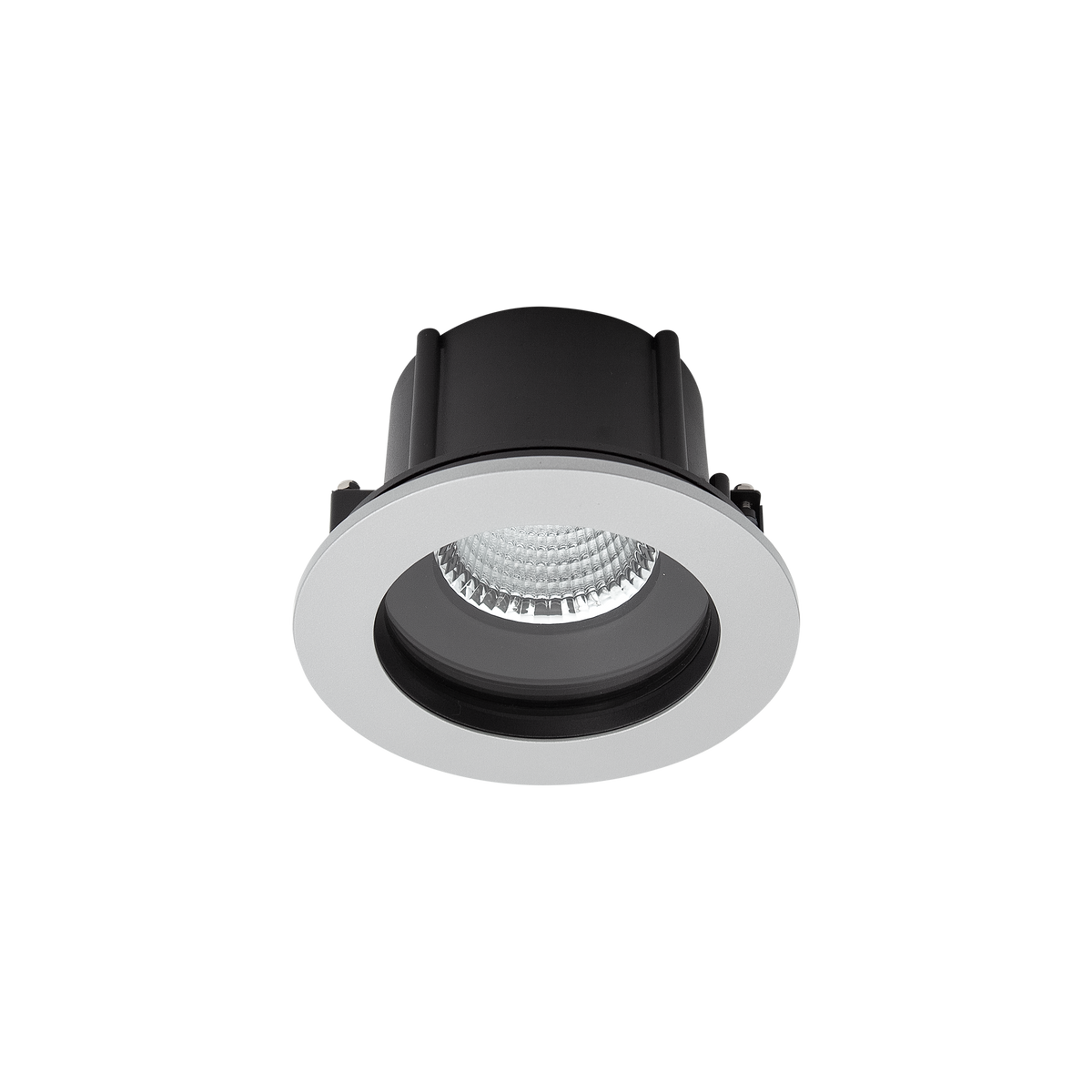

R835 S4 Exterior Round IP66 Large Downlight Silver 4000K
Lumens
Watts
1795lm (See Spec Sheet)
12.3W-17.5W
View Options
-
10° Reflector Only for R835
-
20° Reflector for R835 & R868
-
70° Reflector Only for R835
-
Frosted Glass Cover for R835
-
Honeycomb Glare Reducer for R835
-
Plastic Installation Housing for Concrete Castings for R835
Select Downlights
R835
Exterior Round IP66 Large Downlight Silver 4000K
Temp.
4000K Natural White
Cut out
150mm
Lumens
1795lm (See Spec Sheet)
Watts
12.3W-17.5W
R835

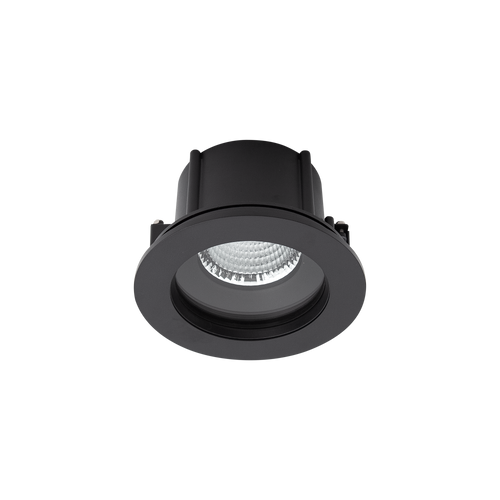

Exterior Round IP66 Large Downlight Black 4000K
Temp.
4000K Natural White
Cut out
150mm
Lumens
1795lm (See Spec Sheet)
Watts
12.3W / 17.5W
R835

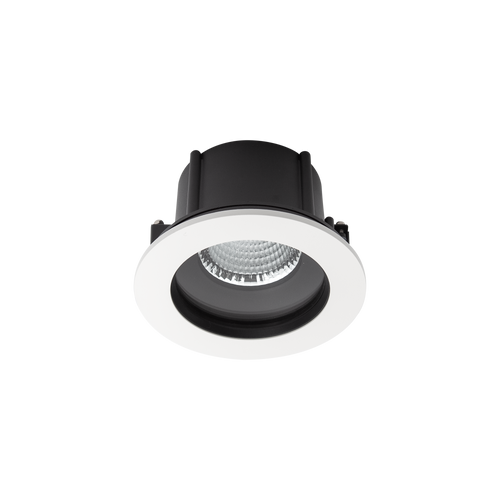

Exterior Round IP66 Large Downlight White 4000K
Temp.
4000K Natural White
Cut out
150mm
Lumens
1795lm (See Spec Sheet)
Watts
12.3W / 17.5W
Specifications
Finish
Silver
Colour Temp
4000K Natural White
Watts
12.3W-17.5W
Lumens
1795lm (See Spec Sheet)
Beam Angle
40°
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP66
Cut Out
150mm
Diameter
165mm
Height
94mm
Classification
Non IC
Height Clearance to Building Elements
100mm
Side Clearance to Building Elements
100mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
500mA
Driver Included / Incorporated
Driver not included, sold separately
Impact Rating
IK08
Warranty
5 Year Warranty
