R771
- Checking stock...
Configure your R771 2 options
- White (selected)
- Black

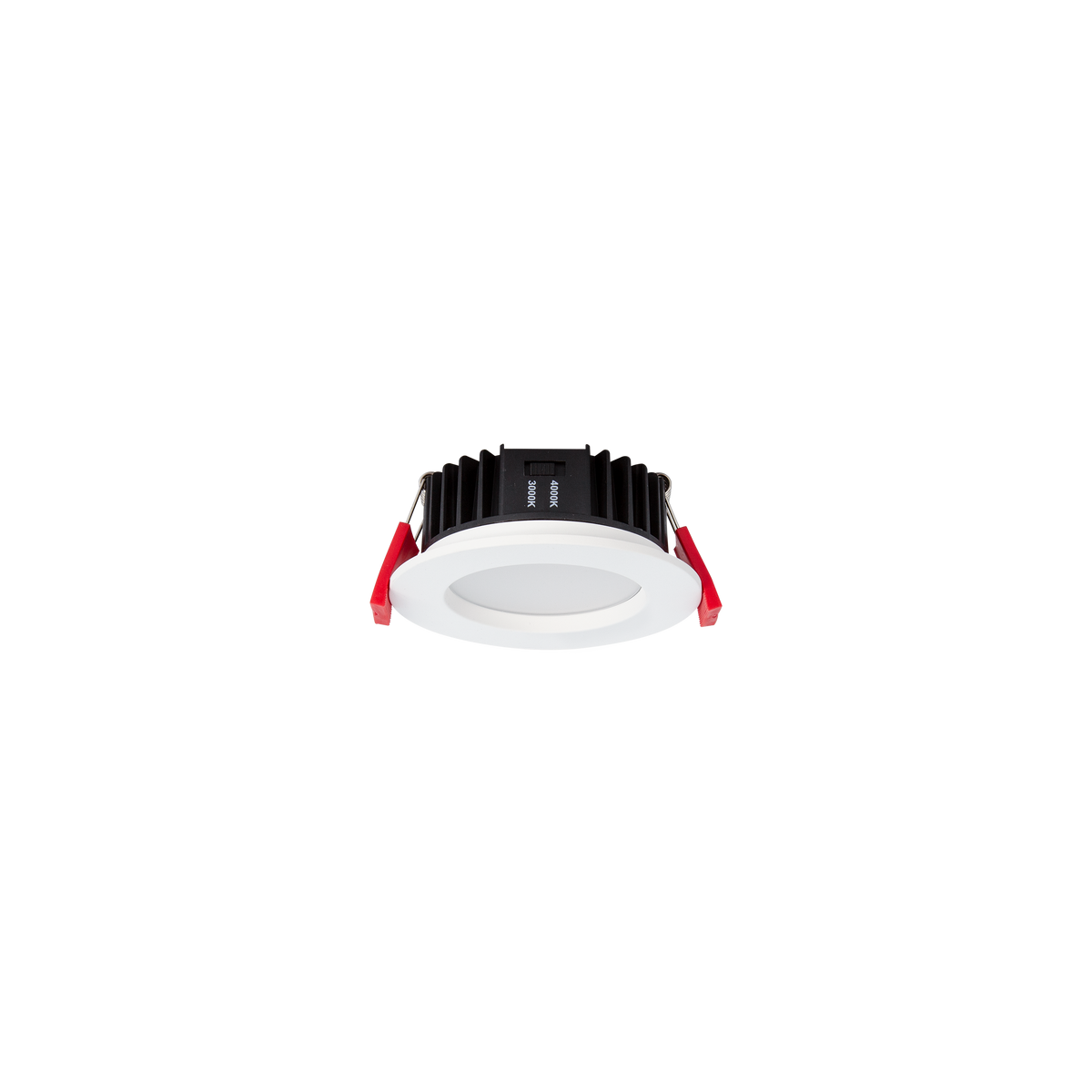

R771 XW34A LEDE Exterior Premium Economy Downlight Kit White 3000K / 4000K
Lumens
Watts
870lm (See spec sheet)
8W
DCC180-DX-9W 180mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Watts
4.5W-9W
Select Downlights
LEDE Exterior Premium Economy Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
870lm (See spec sheet)
Watts
8W
LEDE Exterior Premium Economy Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
780lm (See spec sheet)
Watts
8W
Specifications
R771 XW34A
Cut Out
92mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
8W
Lumens
870lm (See spec sheet)
Beam Angle
90°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
100,000hrs (L80 B10)
Ingress Protection
IP65 (front face)
Diameter
103mm
Height
43mm
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
PC Trim/diffuser (UV Stable), Aluminium, ADC12
Electrical Class
Class II
Driver Output Current
180mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC180-DX-9W
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
Resources
