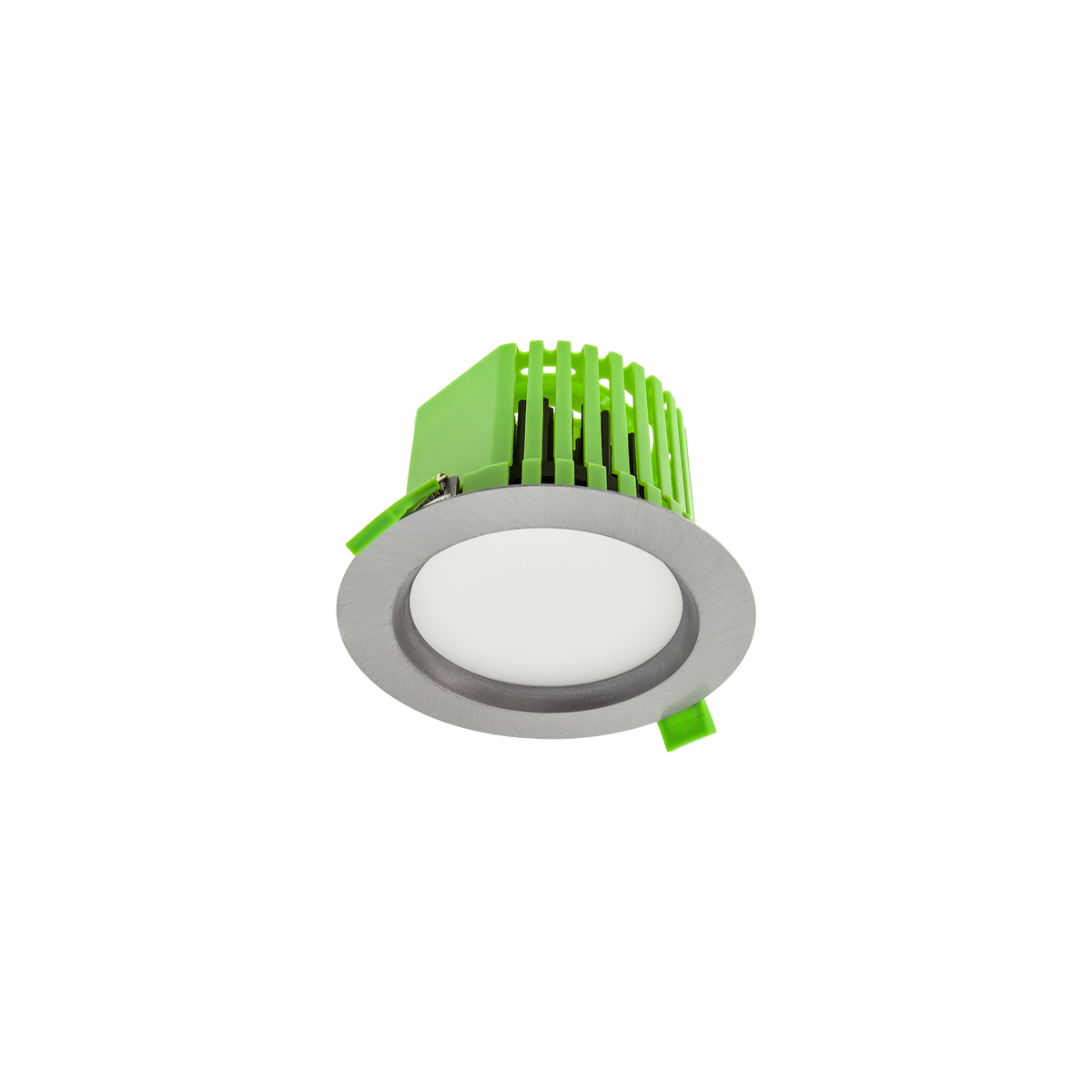

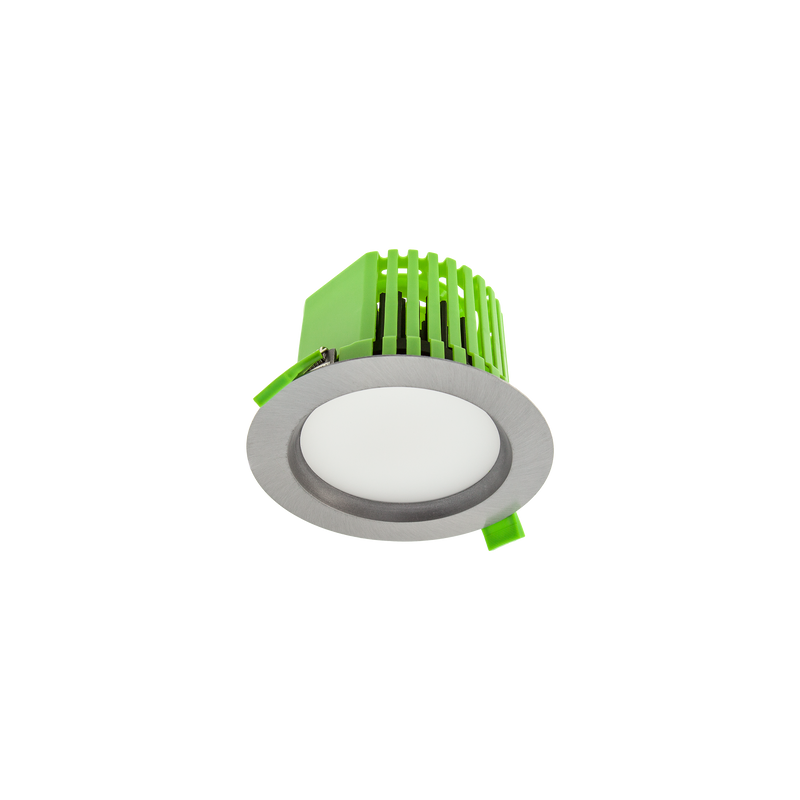

R755 KBAWUDL 14W Standard Kit Brushed Aluminium 3000K
Lumens
Watts
1360lm
14W
View Options
DCC350-DX-20W
Watts
10W-20W
Watts
10W-20W
Select Downlights
R755
14W Standard Kit Brushed Aluminium 3000K
Temp.
3000K Warm White
Cut out
115mm
Lumens
1360lm
Watts
14W
R755

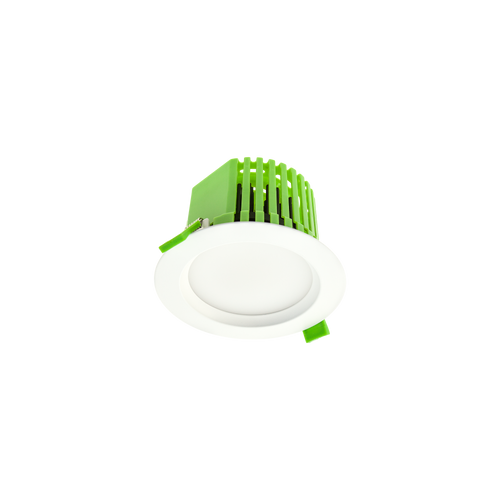

14W Standard Kit White 3000K
Temp.
3000K Warm White
Cut out
115mm
Lumens
1360lm
Watts
14W
Specifications
Finish
Brushed Aluminium
Colour Temp
3000K Warm White
Watts
14W
Lumens
1360lm
Beam Angle
100°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs (L80)
Ingress Protection
IP44
Cut Out
115mm
Diameter
136mm
Height
85mm
Binning
SDCM 5
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Die Cast Aluminium with Patented Heat Shield
Electrical Class
Class II
Driver Output Current
350mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
