M80 Series
M80-T15-WW3K-45D
M80-T15
- Checking stock...

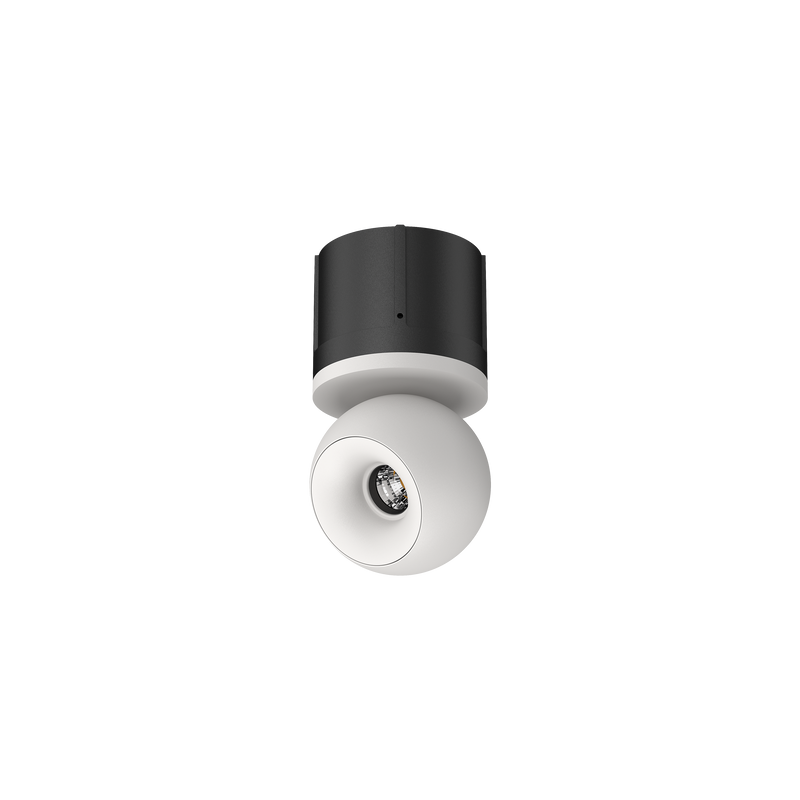

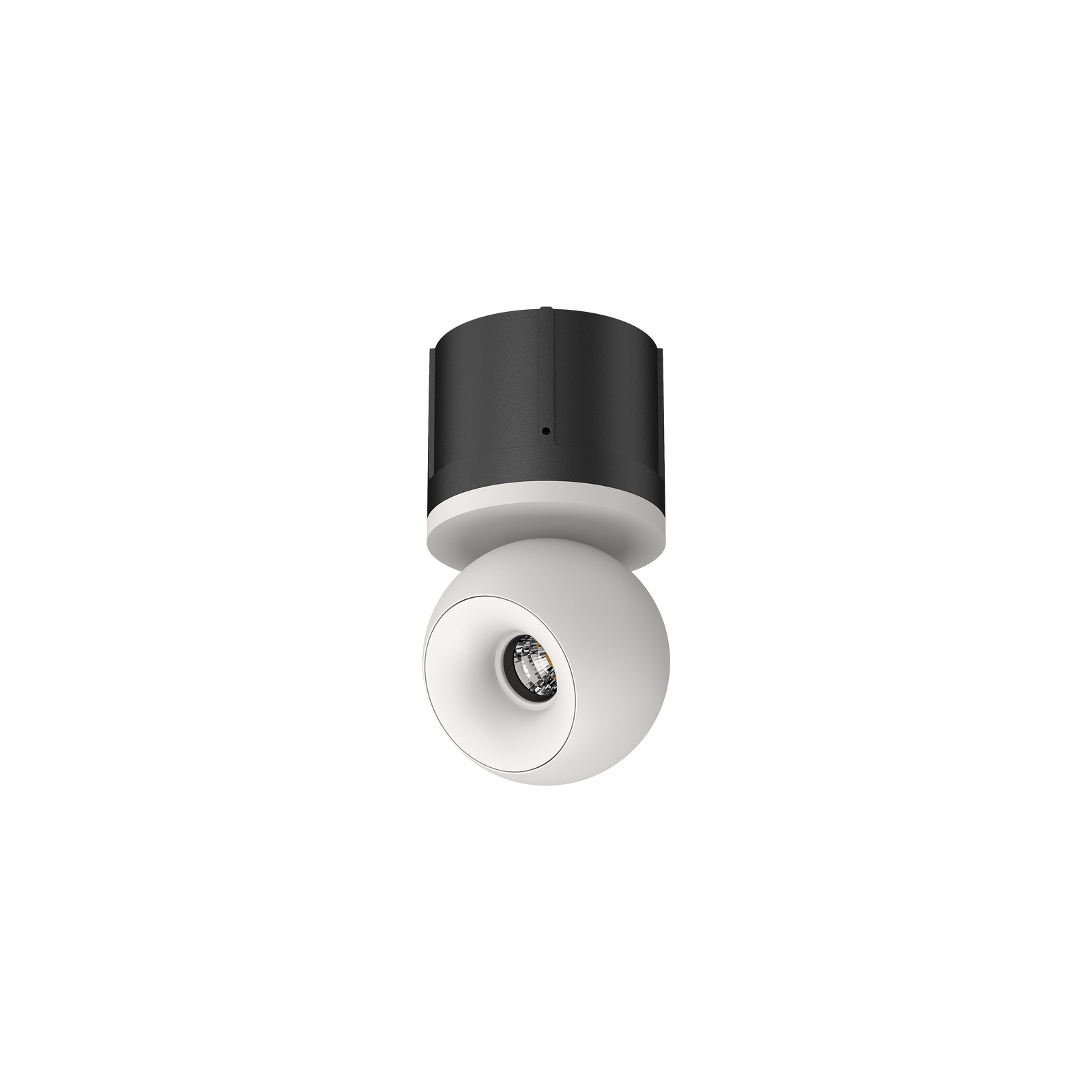

M80-T15-WW3K-45D Cevon M80 Type 15 Dark Art Adjustable Spot White 3000K
Lumens
Watts
Tilt Angle
790lm
9W
60°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T15
Cevon M80 Type 15 Dark Art Adjustable Spot White 3000K
Temp.
3000K
Tilt Angle
60°
Lumens
790lm
Rotate Angle
355°
Watts
9W
M80-T15

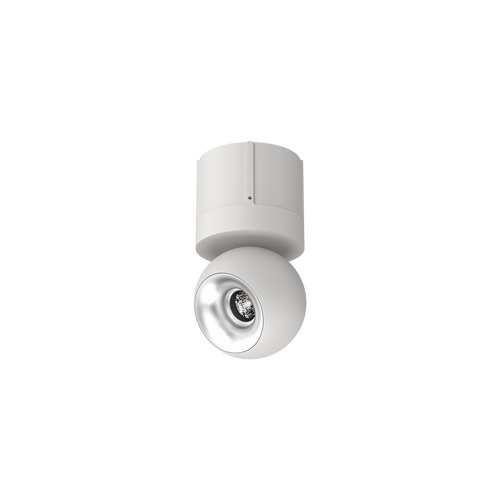

Cevon M80 Type 15 Dark Art Adjustable Spot White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
790lm
Rotate Angle
355°
Watts
9W
M80-T15

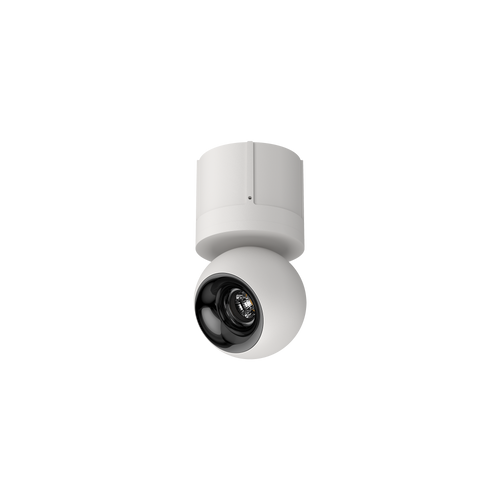

Cevon M80 Type 15 Dark Art Adjustable Spot White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15

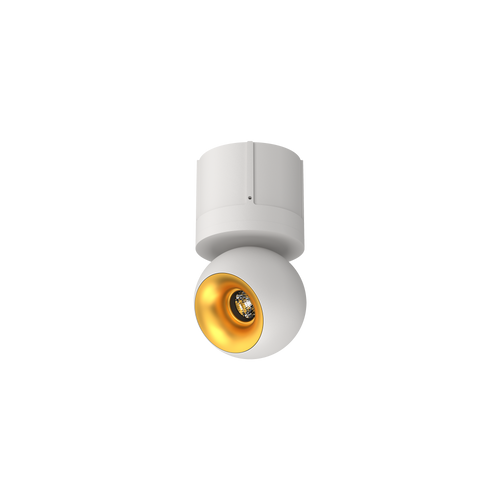

Cevon M80 Type 15 Dark Art Adjustable Spot White, Gold 3000K 1
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15

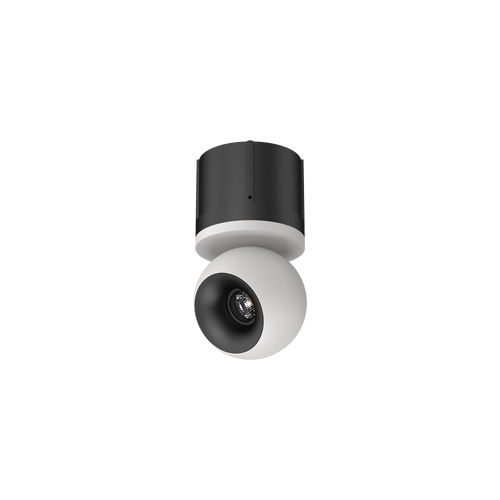

Cevon M80 Type 15 Dark Art Adjustable Spot White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Adjustable Spot Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
790lm
Rotate Angle
355°
Watts
9W
M80-T15

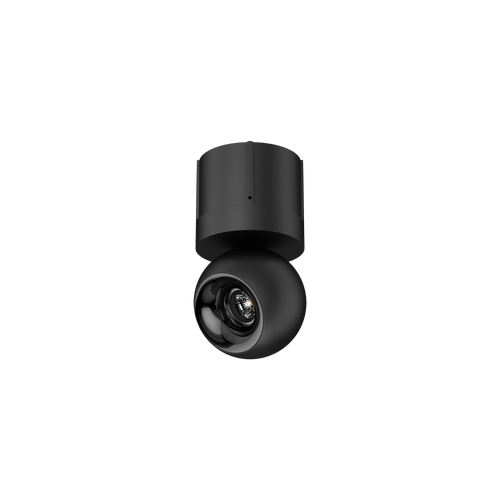

Cevon M80 Type 15 Dark Art Adjustable Spot Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15

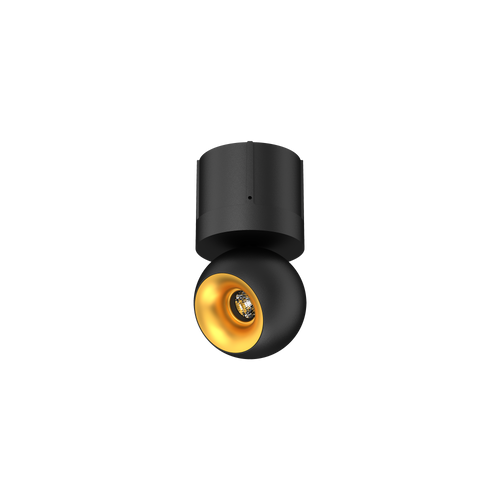

Cevon M80 Type 15 Dark Art Adjustable Spot Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15

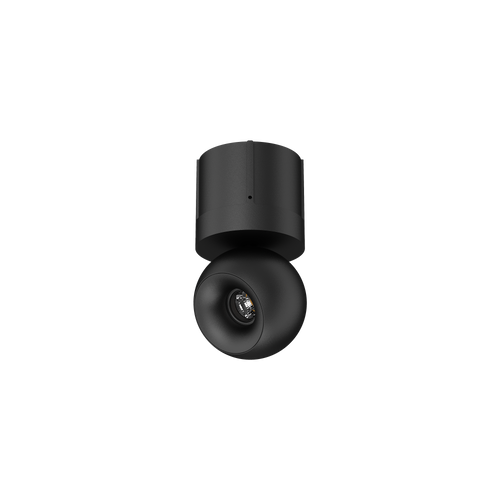

Cevon M80 Type 15 Dark Art Adjustable Spot Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
White
Colour Temp
3000K
Watts
9W
Lumens
790lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
60°
Rotate Angle
355°
Ingress Protection
IP43
Diameter
Base: Ø78mm, Spot: Ø80mm
Height
Base: 68mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
