M80 Series
M80-T15
- Custom Build - Request Availability
Configure your M80-T15 18 options
- White
- White, Black
- White, Gold
- White, High Gloss Black
- White, Silver
- Black
- Black, Gold
- Black, High Gloss Black (selected)
- Black, Silver

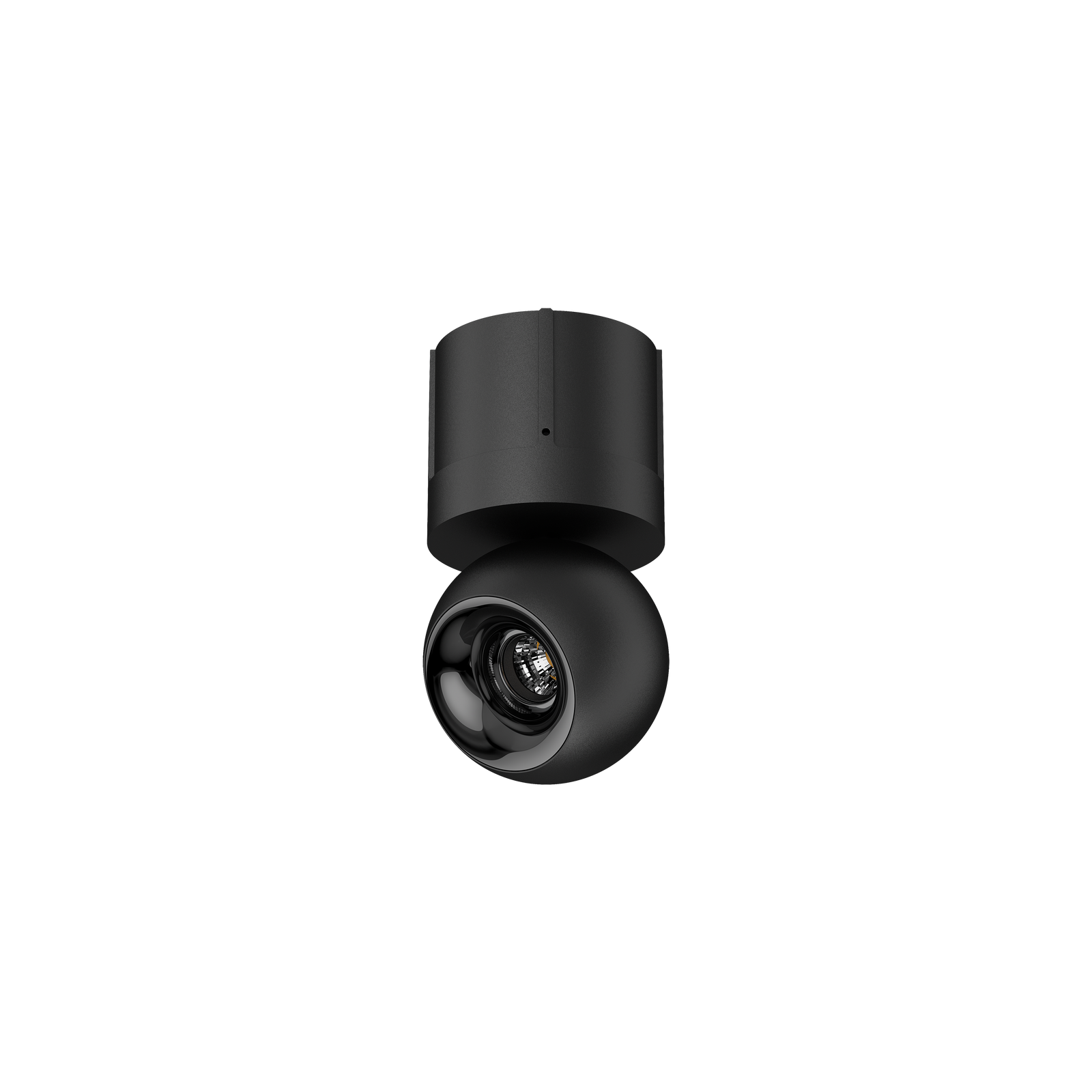

M80-T15-BHGB3K-45D Cevon M80 Type 15 Dark Art Sphere Black, High Gloss Black 3K
Lumens
Watts
Tilt Angle
760lm
9W
60°
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T15
Cevon M80 Type 15 Dark Art Sphere White 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
790lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
700lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
700lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
700lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
790lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
700lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
700lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
700lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M80-T15
Cevon M80 Type 15 Dark Art Sphere Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
790lm
Rotate Angle
355°
Watts
9W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T15-BHGB3K-45D
Finish
Black, High Gloss Black
Colour Temp
3000K Warm White
Watts
9W
Lumens
760lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
60°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
Base: Ø78mm, Spot: Ø80mm
Height
Base: 68mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T15-BHGB3K-45D
Specifications
None
Resources
