M80 Series
M80-T25
- Checking stock...
Configure your M80-T25 18 options

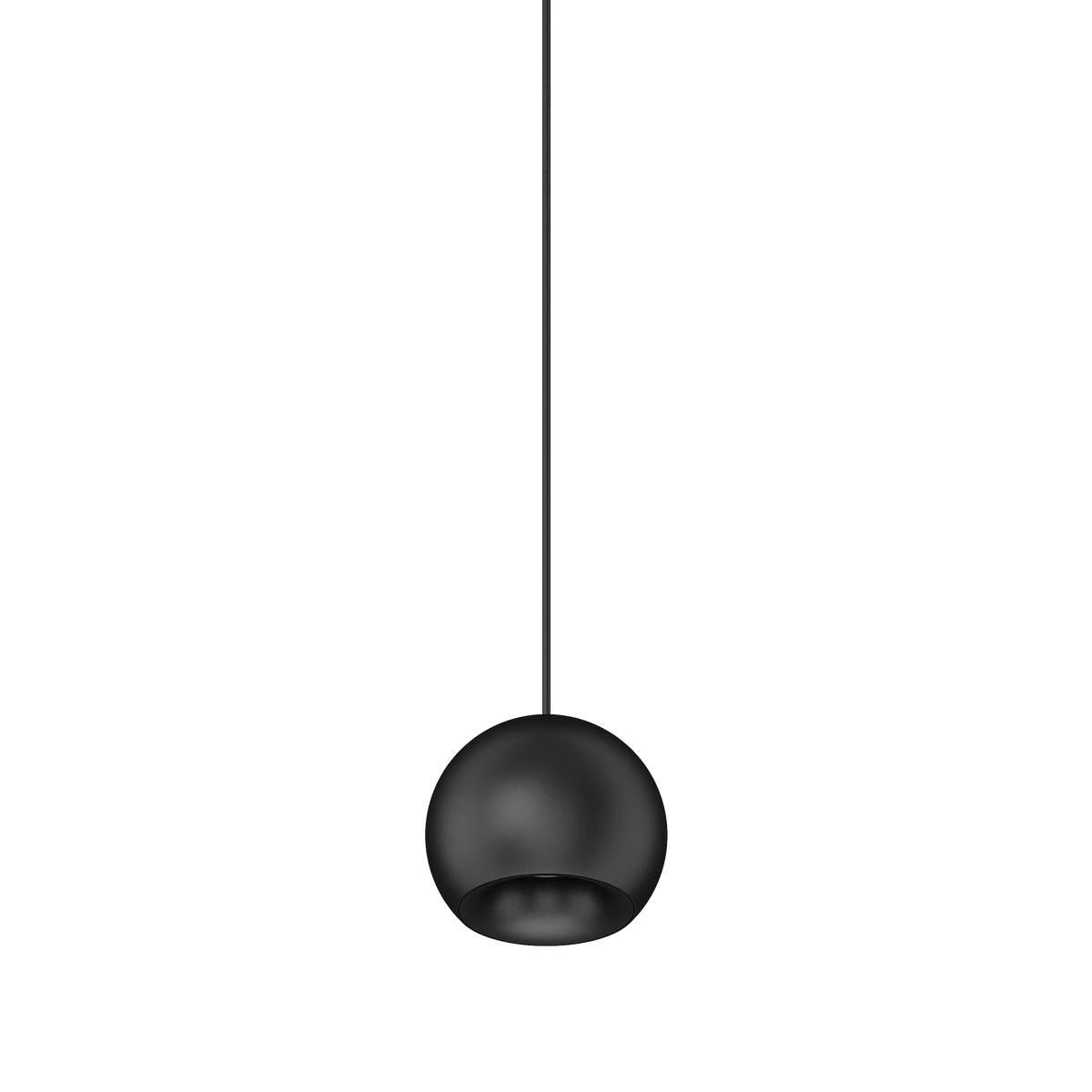

M80-T25-BB3K-45D Cevon M80 Type 25 Dark Art Pendant Spot Black 3000K
Lumens
Watts
760lm
9W
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White 2700K
Temp.
2700K Warm White
Lumens
765lm
Watts
9W
M80-T25

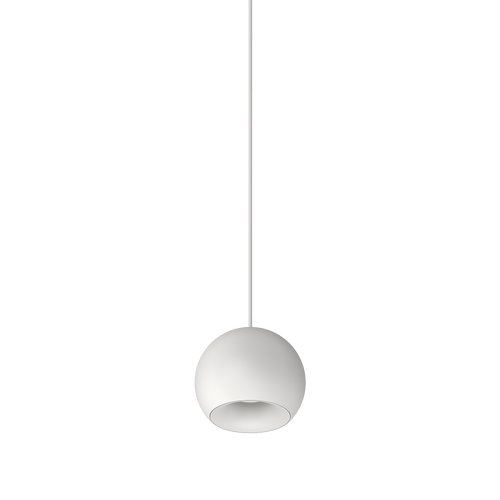

Cevon M80 Type 25 Dark Art Pendant Spot White 3000K
Temp.
3000K Warm White
Lumens
790lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, Black 2700K
Temp.
2700K Warm White
Lumens
710lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, Black 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, Gold 2700K
Temp.
2700K Warm White
Lumens
710lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, Gold 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
710lm
Watts
9W
M80-T25

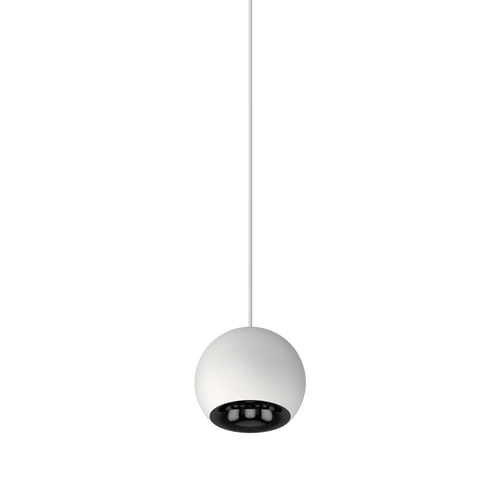

Cevon M80 Type 25 Dark Art Pendant Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, Silver 2700K
Temp.
2700K Warm White
Lumens
765lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot White, Silver 3000K
Temp.
3000K Warm White
Lumens
790lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black 2700K
Temp.
2700K Warm White
Lumens
710lm
Watts
9W
M80-T25

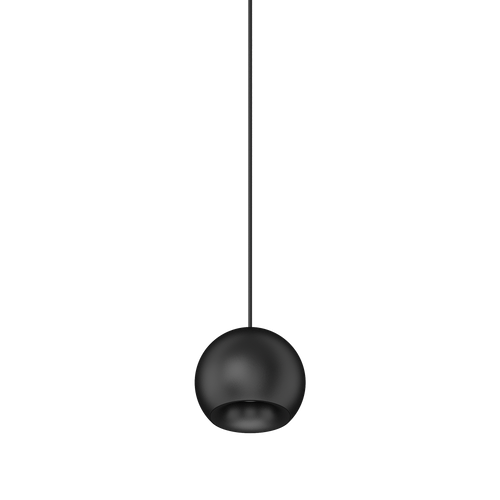

Cevon M80 Type 25 Dark Art Pendant Spot Black 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black, Gold 2700K
Temp.
2700K Warm White
Lumens
710lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black, Gold 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black, High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
710lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black, Silver 2700K
Temp.
2700K Warm White
Lumens
765lm
Watts
9W
M80-T25

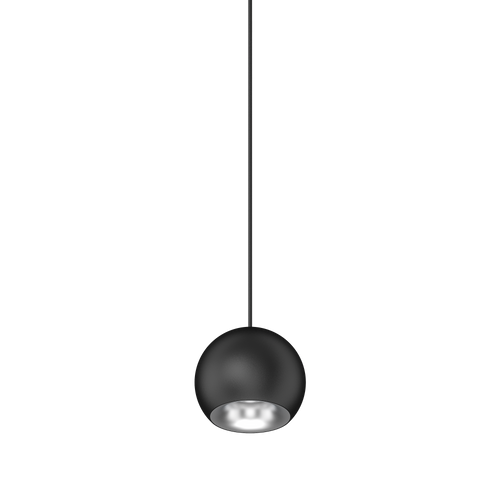

Cevon M80 Type 25 Dark Art Pendant Spot Black, Silver 3000K
Temp.
3000K Warm White
Lumens
790lm
Watts
9W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T25-BB3K-45D
Finish
Black
Colour Temp
3000K Warm White
Watts
9W
Lumens
760lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
80mm
Length
<2m (Adjustable)
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T25-BB3K-45D
Specifications
None
Resources
