Cevon M80 Type 9 Pinpoint Black Trim 3000K

M80 Series

Select your M80-T9

21 items

M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black 3000K
Watts9W
Lumens730lm
Tilt Angle25°
Rotate Angle355°
M80-T2
Cevon M80 Type 2 Lotus Black 3000K
Watts12W
Lumens990lm
M80-T3
Cevon M80 Type 3 Dark Art Fixed Black 3000K
Watts12W
Lumens1110lm
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Black 3000K
Watts17W
Lumens1390lm
M80-T5
Cevon M80 Type 5 Dark Art Adjustable Spot Black 3000K
Watts9W
Lumens700lm
Tilt Angle38°
Rotate Angle355°
M80-T6
Cevon M80 Type 6 Black Hole Black Trim 3000K
Watts12W
Lumens880lm
M80-T7
Cevon M80 Type 7 Adjustable Highlighter Black Trim 3000K
Watts9W
Lumens630lm
Tilt Angle30°
Rotate Angle355°
M80-T9
Cevon M80 Type 9 Pinpoint Black Trim 3000K
Watts12W
Lumens570lm
M80-T10
Cevon M80 Type 10 Wallwasher Black Trim 3000K
Watts12W
Lumens885lm
M80-T11
Cevon M80 Type 11 Classico Fixed Black 3000K
Watts12W
Lumens1110lm
M80-T12
Cevon M80 Type 12 Classico Adjustable Black 3000K
Watts12W
Lumens1110lm
Tilt Angle20°
Rotate Angle355°
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot Black 3000K
Watts12W
Lumens910lm
Tilt Angle40°
Rotate Angle355°
M80-T15
Cevon M80 Type 15 Dark Art Adjustable Spot Black 3000K
Watts9W
Lumens760lm
Tilt Angle60°
Rotate Angle355°
M80-T16
Cevon M80 Type 16 Dark Art Adjustable Spot Black 3000K
Watts12W
Lumens975lm
Tilt Angle60°
Rotate Angle355°
M80-T18
Cevon M80 Type 18 Dark Art Adjustable Spot Black 3000K
Watts9W
Lumens730lm
Tilt Angle90°
Rotate Angle355°
M80-T19
Cevon M80 Type 19 Dark Art Adjustable Spot Black 3000K
Watts17W
Lumens1370lm
Tilt Angle90°
Rotate Angle355°
M80-T21
Cevon M80 Type 21 Adjustable Spot Black 3000K
Watts25W
Lumens2500lm
Tilt Angle90°
Rotate Angle355°
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot Black 3000K
Watts12W
Lumens1020lm
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black 3000K
Watts17W
Lumens1370lm
M80-T25
Cevon M80 Type 25 Dark Art Pendant Spot Black 3000K
Watts9W
Lumens760lm
M80-T26
Cevon M80 Type 26 Dark Art Pendant Spot Black 3000K
Watts12W
Lumens975lm
Back

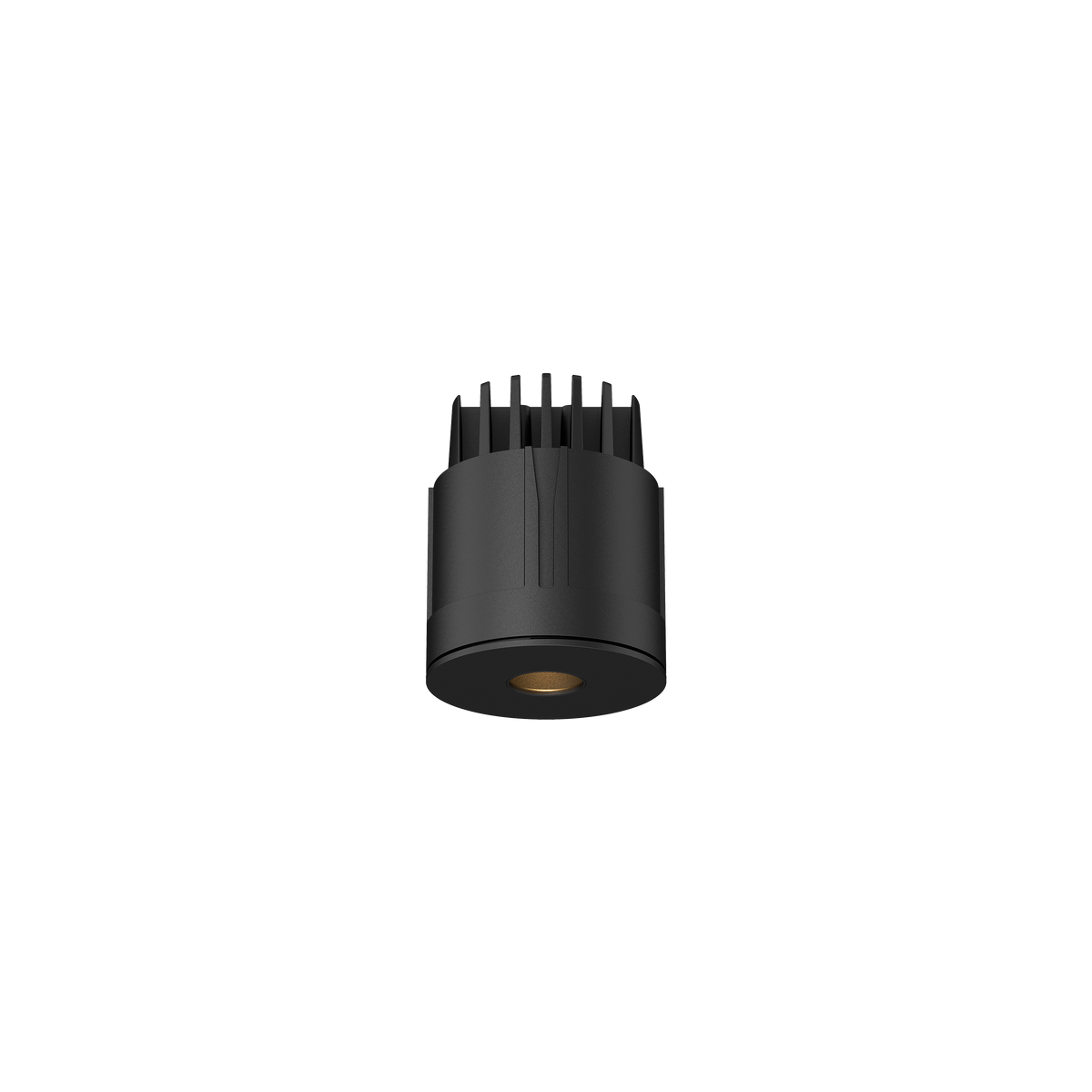

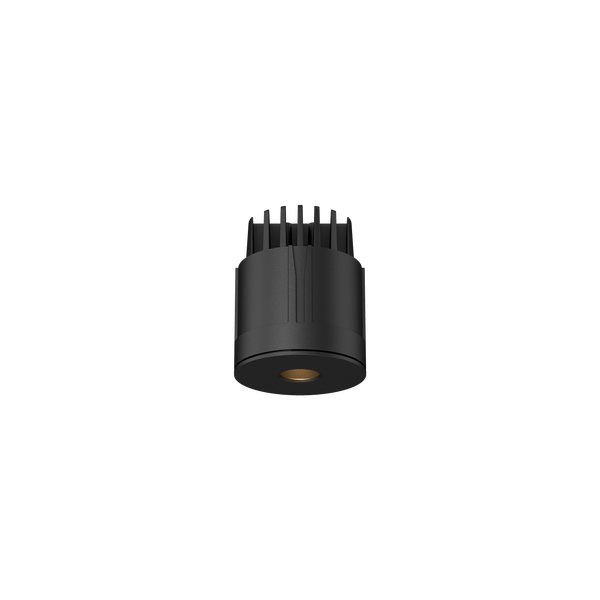

Cevon M80 Type 9 Pinpoint Black Trim 3000K

M80-T9-B3K-24D

All M80-T9-B3K-24D

M80-T9

  • Checking stock...
Cevon Type 9 Module - Pinpoint 12W 3000K 350mA 24° Black Trim
Module
Cevon M80 Type 9 Pinpoint Black Trim 3000K

M80-T9-B3K-24D Cevon M80 Type 9 Pinpoint Black Trim 3000K

Lumens

Watts

570lm

12W

View Options

Frame

Add Frame

Frame not included

View Options

Driver

Add Driver

driver not included

View Options

Add to

Jump to

Specifications Downloads

Select Module

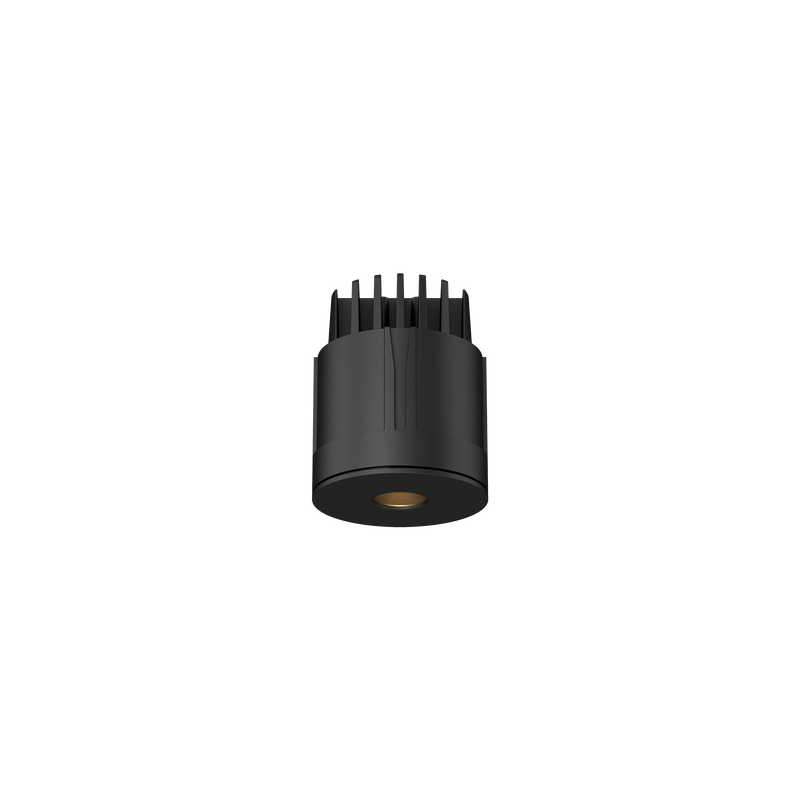

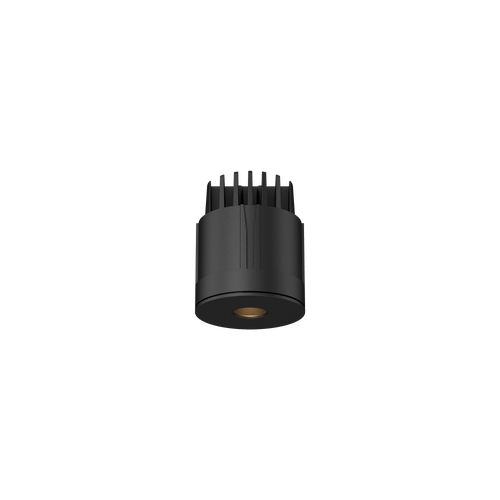

Cevon M80 Type 9 Pinpoint Black Trim 3000K

M80-T9

Cevon M80 Type 9 Pinpoint Black Trim 3000K

Temp.

3000K Warm White

Lumens

570lm

Watts

12W

View Details

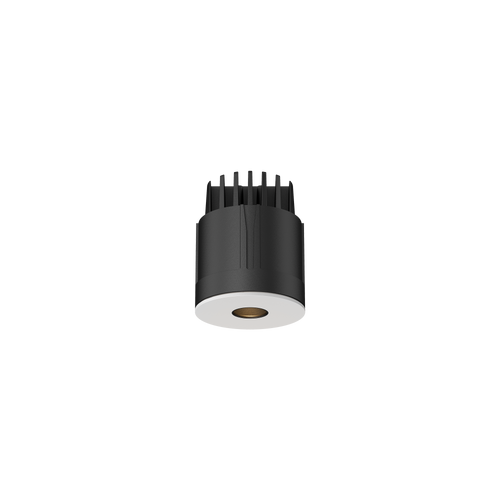

Cevon M80 Type 9 Pinpoint White Trim 3000K

M80-T9

Cevon M80 Type 9 Pinpoint White Trim 3000K

Temp.

3000K Warm White

Lumens

570lm

Watts

12W

View Details

Select Frame

Frame sold separately. Please select below.

Cevon Type Recessed Round Frame for M80 Black

F80-RR

Cevon Type Recessed Round Frame for M80 Black

Cut out

Ø95mm

View Details
Cevon Type Recessed Round Frame for M80 White

F80-RR

Cevon Type Recessed Round Frame for M80 White

Cut out

Ø95mm

View Details
Cevon Recessed Square Frame for M80 Black

F80-RSQ

Cevon Recessed Square Frame for M80 Black

Cut out

Ø95mm

View Details
Cevon Recessed Square Frame for M80 White

F80-RSQ

Cevon Recessed Square Frame for M80 White

Cut out

Ø95mm

View Details
Cevon Type Trimless Frame for M80 White

F80-TL

Cevon Type Trimless Frame for M80 White

Cut out

Ø130mm

View Details
Cevon Type Surface Cylinder for M80 Black

SF80-RR

Cevon Type Surface Cylinder for M80 Black

View Details
Cevon Type Surface Cylinder for M80 White

SF80-RR

Cevon Type Surface Cylinder for M80 White

View Details

Select driver

driver sold separately. Please select below.

Dimmable

350mA 20W Dimmable Constant Current DX Series Driver

DCC350-DX-20W

350mA 20W Dimmable Constant Current DX Series Driver

Watts

10W-20W

View Details

Dali

260-700mA 25W Constant Current Dali Driver

DCC260700-DD-1625W

260-700mA 25W Constant Current Dali Driver

Watts

16W-25W

View Details

Casambi

260-700mA 25W Constant Current Casambi Driver

DCC260700-CAS-1325W

260-700mA 25W Constant Current Casambi Driver

Watts

13W-25W

View Details

Specifications

Cevon M80 Type 9 Pinpoint Black Trim 3000K

Module

M80-T9-B3K-24D

Finish

Black

Colour Temp

3000K Warm White

Watts

12W

Lumens

570lm

Beam Angle

24°

Dimming / Control

Dimmable

CRI

97

Lifespan

105,000hrs (L90 B10)

Ingress Protection

IP43

Diameter

78mm

Height

100mm

Binning

SDCM 2

Classification

IC

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium

Electrical Class

Class III

Driver Output Current

350mA

Driver Included / Incorporated

Driver not included, sold separately

Warranty

5 Year Warranty

Frame

None

Driver

None

Downloads

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login
Download All
Cevon M80 Type 9 Pinpoint Black Trim 3000K
