M80 Series
M80-T12
- Checking stock...
Configure your M80-T12 6 options
- White (selected)
- Black

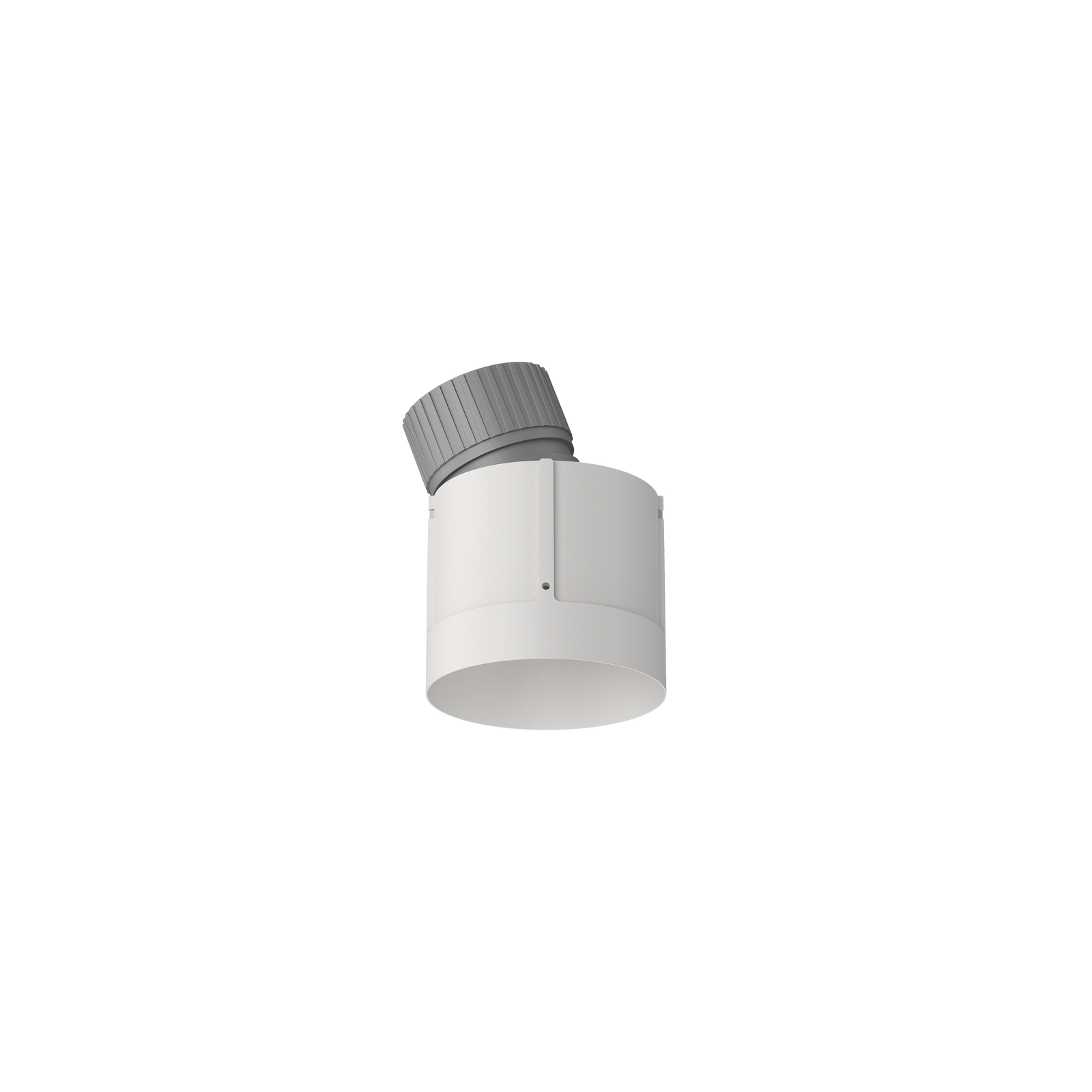

M80-T12-W3K-47D Cevon M80 Type 12 Classico Adjustable White 3000K
Lumens
Watts
Tilt Angle
1260lm
12W
20°
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T12
Cevon M80 Type 12 Classico Adjustable White 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
1125lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable White 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1260lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable White 4000K
Temp.
4000K Natural White
Tilt Angle
20°
Lumens
1325lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable Black 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T12

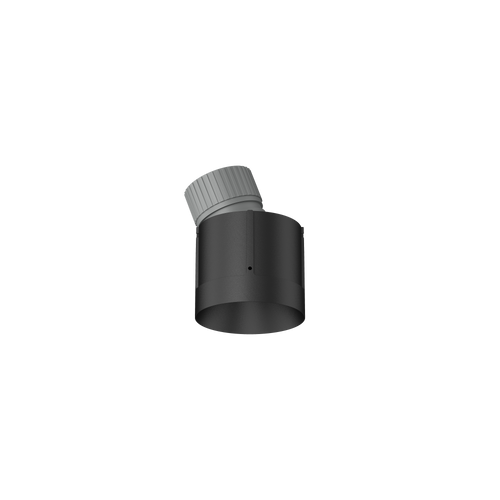

Cevon M80 Type 12 Classico Adjustable Black 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1110lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable Black 4000K
Temp.
4000K Natural White
Tilt Angle
20°
Lumens
1075lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T12-W3K-47D
Finish
White
Colour Temp
3000K Warm White
Watts
12W
Lumens
1260lm
Beam Angle
47°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
20°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
78mm
Height
109mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T12-W3K-47D
