M80 Series
M80-T12
- Checking stock...
Configure your M80-T12 6 options
- White
- Black (selected)

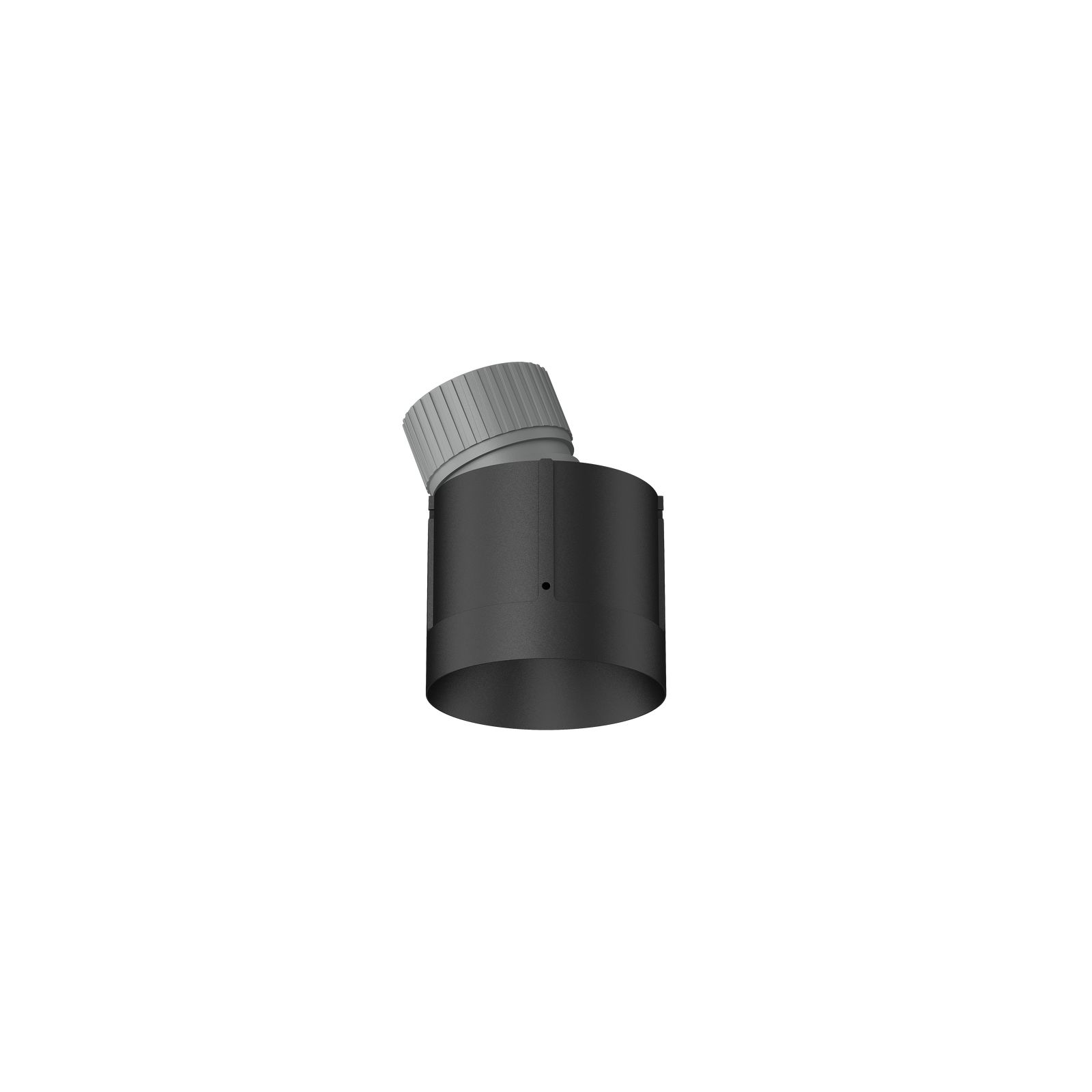

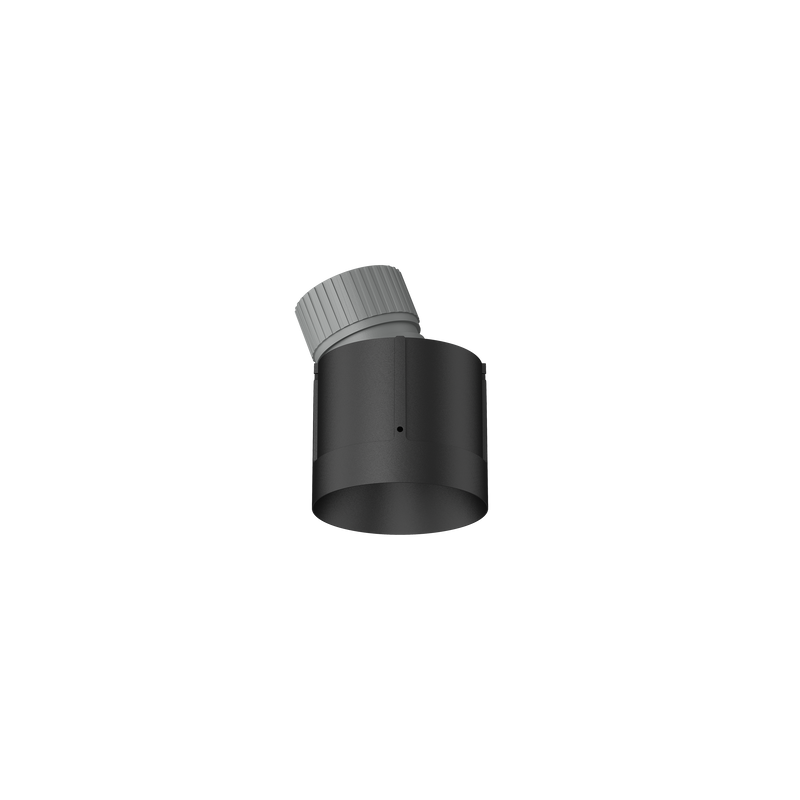

M80-T12-B4K-47D Cevon M80 Type 12 Classico Adjustable Black 4000K
Lumens
Watts
Tilt Angle
1075lm
12W
20°
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T12
Cevon M80 Type 12 Classico Adjustable White 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
1125lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable White 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1260lm
Rotate Angle
355°
Watts
12W
M80-T12

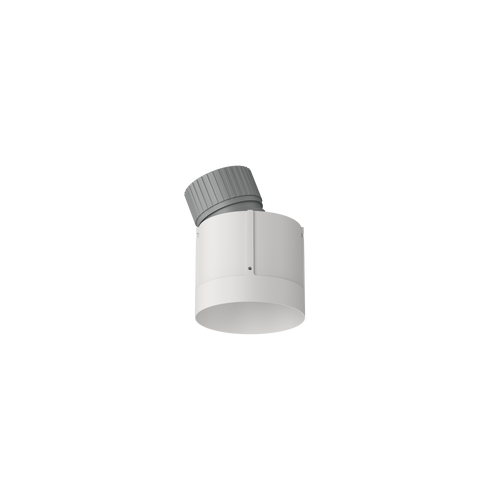

Cevon M80 Type 12 Classico Adjustable White 4000K
Temp.
4000K Natural White
Tilt Angle
20°
Lumens
1325lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable Black 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable Black 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1110lm
Rotate Angle
355°
Watts
12W
M80-T12
Cevon M80 Type 12 Classico Adjustable Black 4000K
Temp.
4000K Natural White
Tilt Angle
20°
Lumens
1075lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T12-B4K-47D
Finish
Black
Colour Temp
4000K Natural White
Watts
12W
Lumens
1075lm
Beam Angle
47°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
20°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
78mm
Height
109mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
