M80 Series
M80-T1
- Checking stock...
Configure your M80-T1 27 options
M80-T1-WW3K-45D Cevon M80 Type 1 Dark Art Adjustable White 3000K
Lumens
Watts
Tilt Angle
750lm
9W
25°
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M80-T1

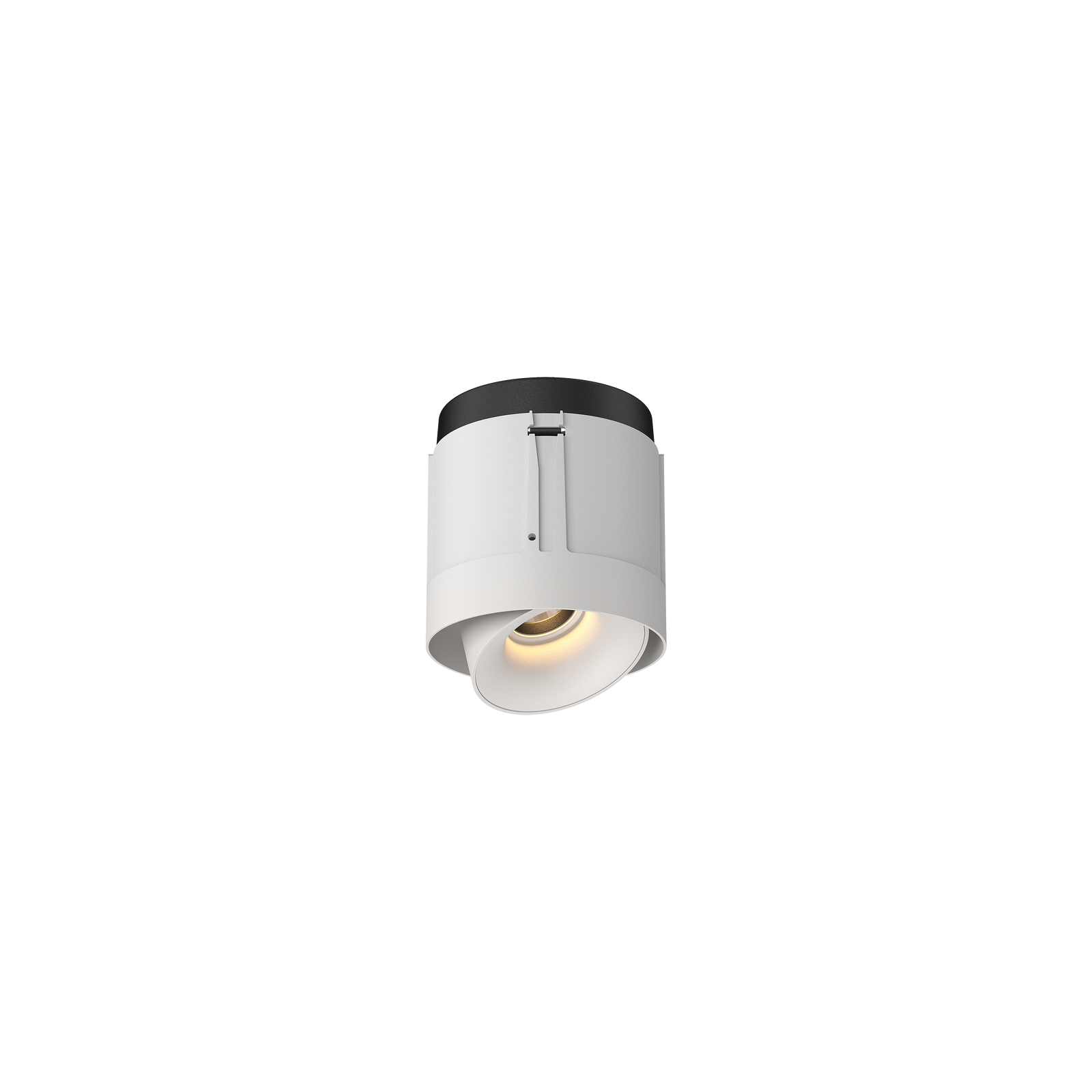

Cevon M80 Type 1 Dark Art Adjustable White 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
750lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
835lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Black 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
690lm
Rotate Angle
355°
Watts
9W
M80-T1

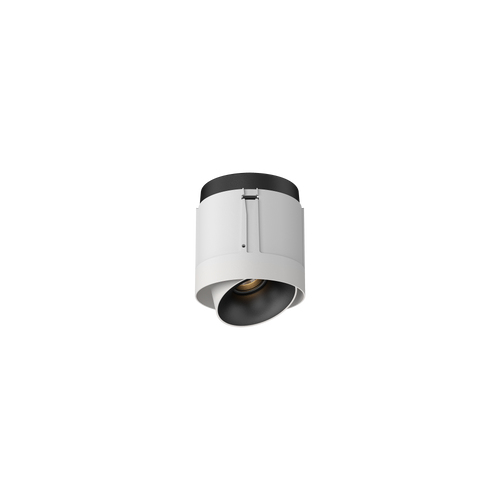

Cevon M80 Type 1 Dark Art Adjustable White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Black 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
810lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
690lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1

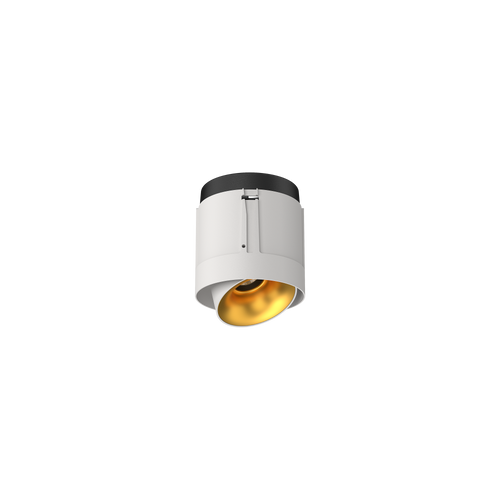

Cevon M80 Type 1 Dark Art Adjustable White, Gold 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
810lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
690lm
Rotate Angle
355°
Watts
9W
M80-T1

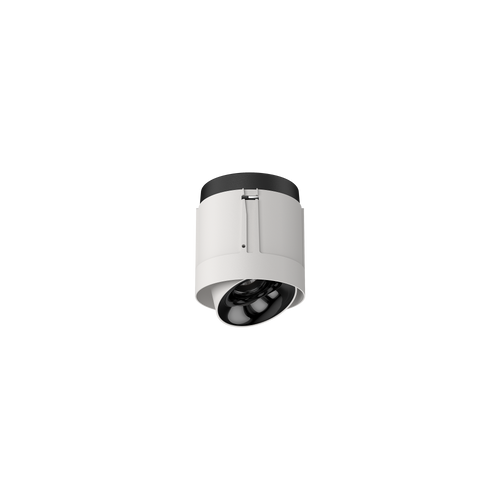

Cevon M80 Type 1 Dark Art Adjustable White, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, High Gloss Black 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
810lm
Rotate Angle
355°
Watts
9W
M80-T1

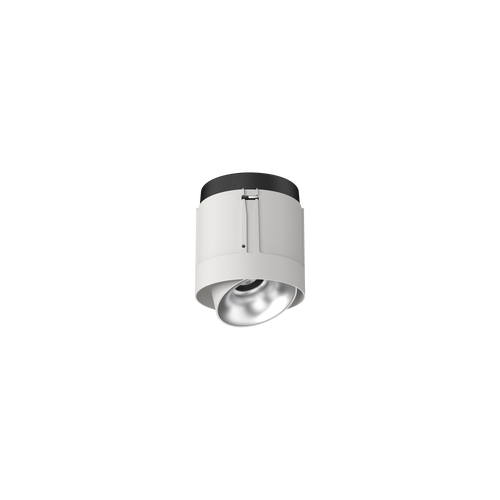

Cevon M80 Type 1 Dark Art Adjustable White, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
750lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable White, Silver 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
835lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
690lm
Rotate Angle
355°
Watts
9W
M80-T1

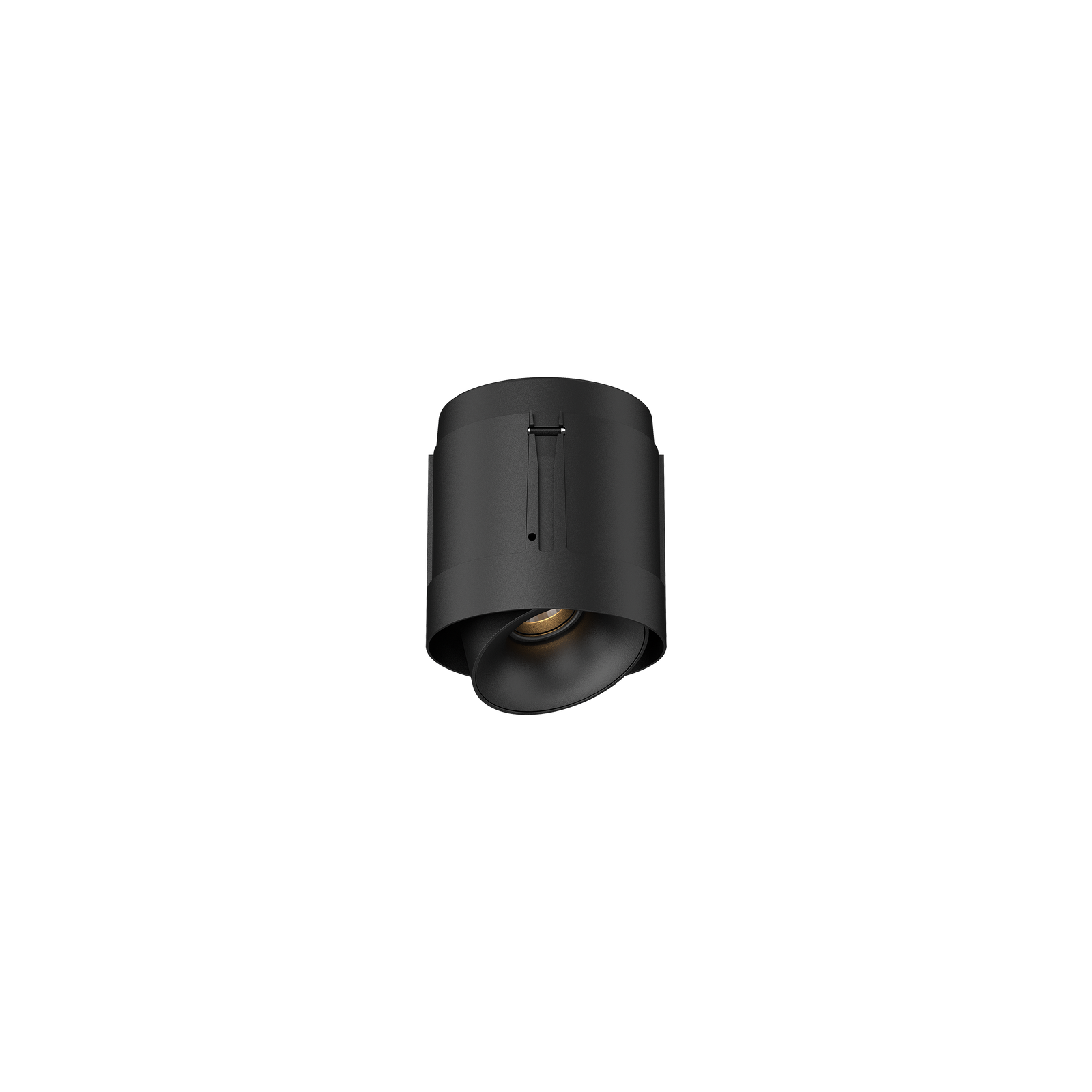

Cevon M80 Type 1 Dark Art Adjustable Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
810lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
690lm
Rotate Angle
355°
Watts
9W
M80-T1

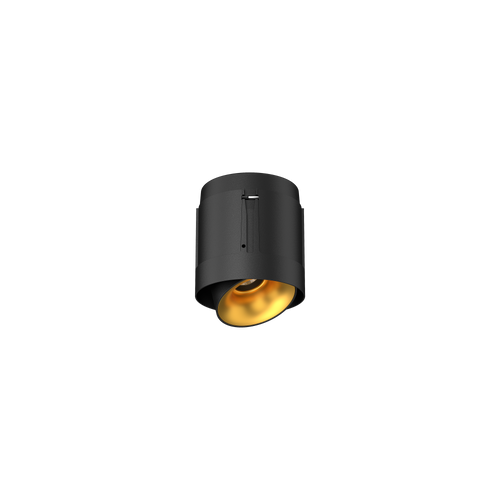

Cevon M80 Type 1 Dark Art Adjustable Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, Gold 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
810lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
690lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
730lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, High Gloss Black 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
810lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
25°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M80-T1

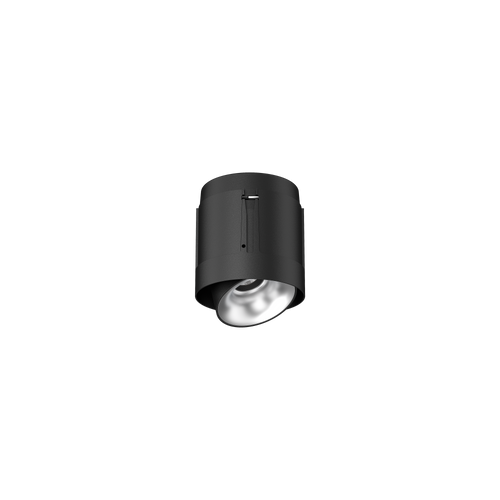

Cevon M80 Type 1 Dark Art Adjustable Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
25°
Lumens
750lm
Rotate Angle
355°
Watts
9W
M80-T1
Cevon M80 Type 1 Dark Art Adjustable Black, Silver 4000K
Temp.
4000K Natural White
Tilt Angle
25°
Lumens
835lm
Rotate Angle
355°
Watts
9W
Select Frame
Frame sold separately. Please select below.
F80-RR

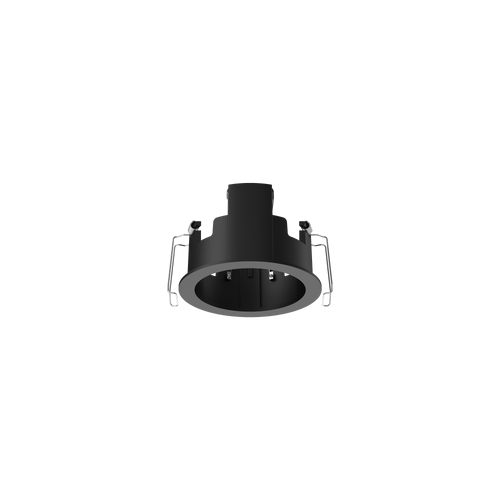

Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm

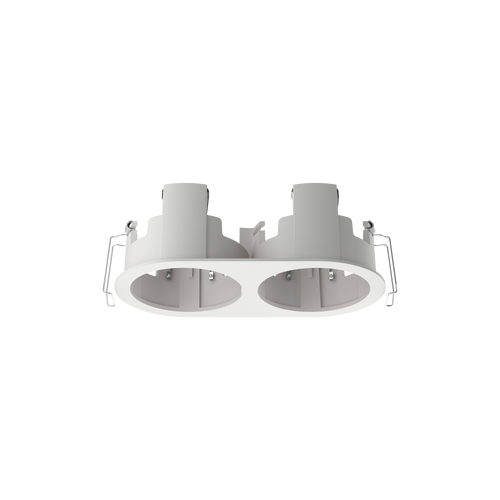

F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ

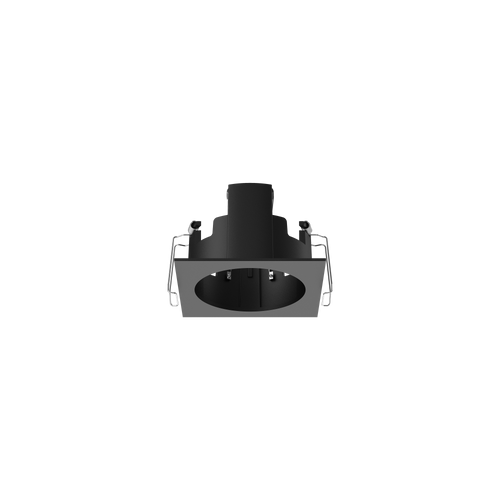

Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm

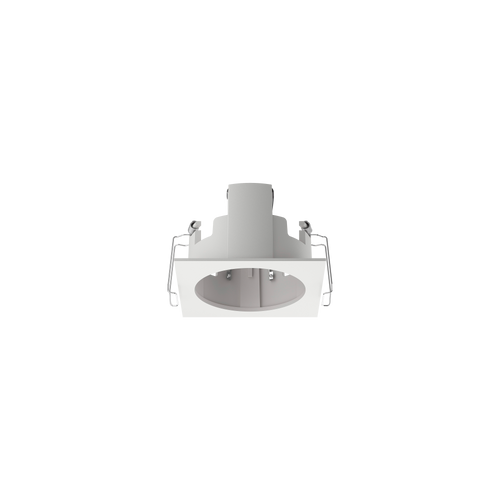

F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm

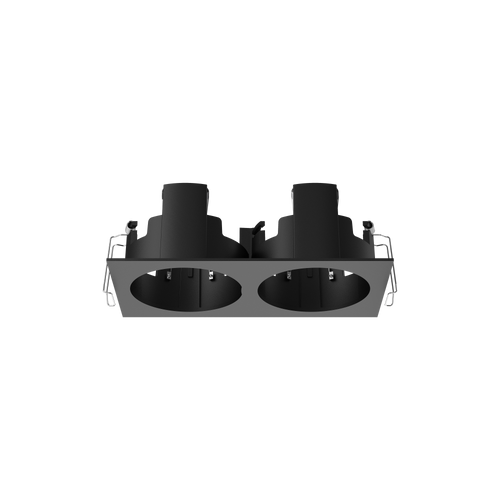

F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres

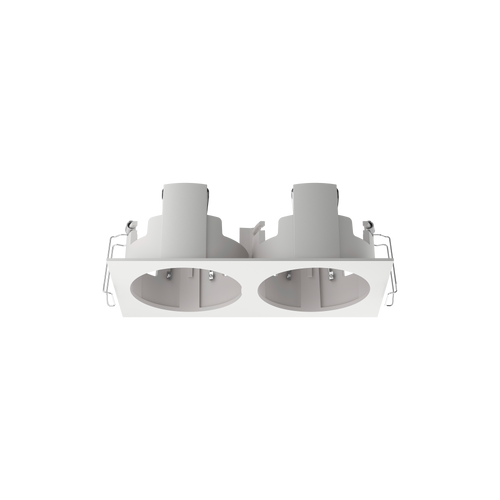

F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL

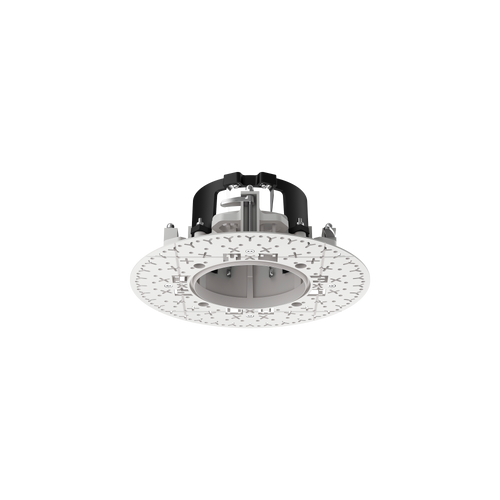

Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm

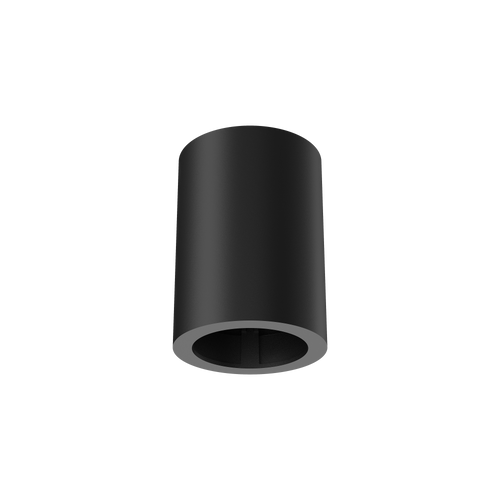

SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR

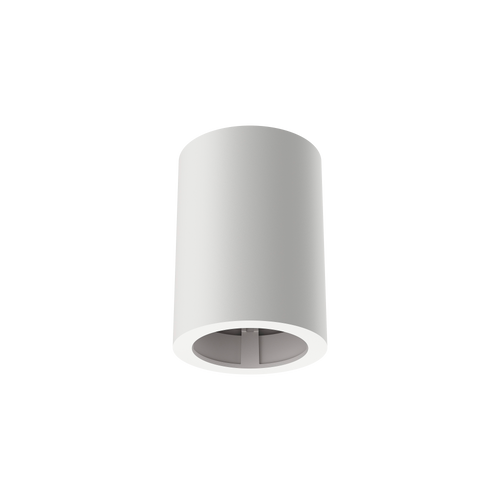

Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali

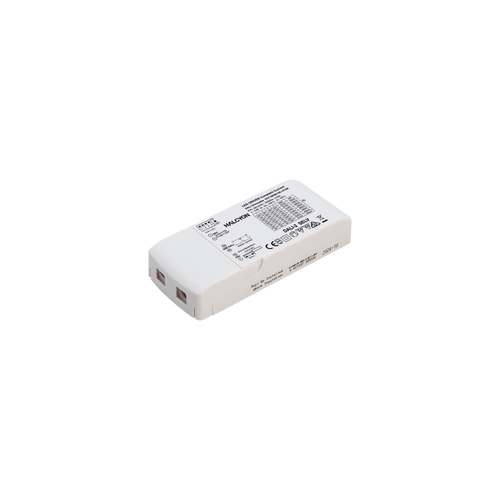

DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC260700-CAS-1325W

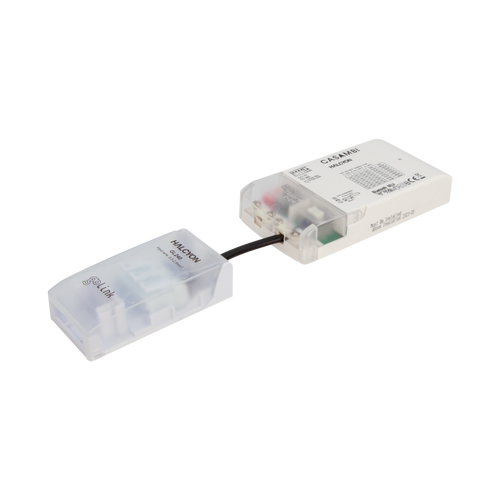

260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T1-WW3K-45D
Finish
White
Colour Temp
3000K Warm White
Watts
9W
Lumens
750lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
25°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
78mm
Height
82mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T1-WW3K-45D
Specifications
None
