M61-T1-W3K-38D
M61-T1
- Checking stock...
M61-T1-W3K-38D Cevon M61 Type 1 Dark Art Square Adjustable White 3000K
Lumens
Watts
Tilt Angle
560lm
6.5W
20°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M61-T1
Cevon M61 Type 1 Dark Art Square Adjustable White 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
560lm
Rotate Angle
355°
Watts
6.5W
M61-T1
Cevon M61 Type 1 Dark Art Square Adjustable Black 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
530lm
Rotate Angle
355°
Watts
6.5W
Select Frame
Frame sold separately. Please select below.

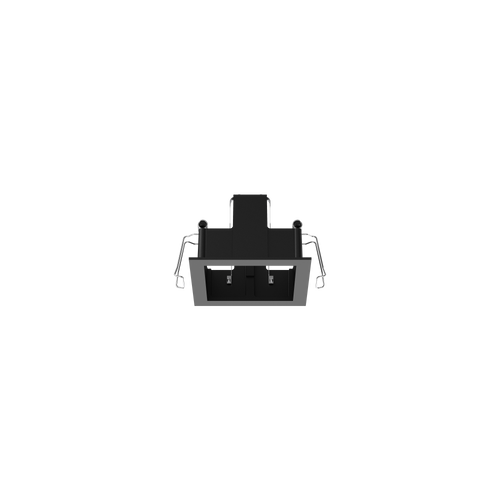

F61-SQ
Cevon Type Recessed Square Frame for M61 Black
Cut out
75 x 75mm

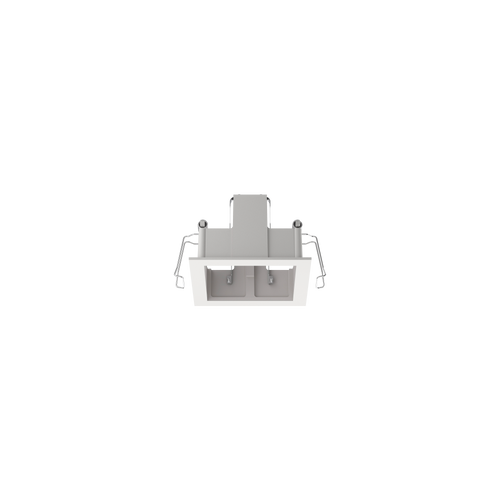

F61-SQ
Cevon Type Recessed Square Frame for M61 White
Cut out
75 x 75mm

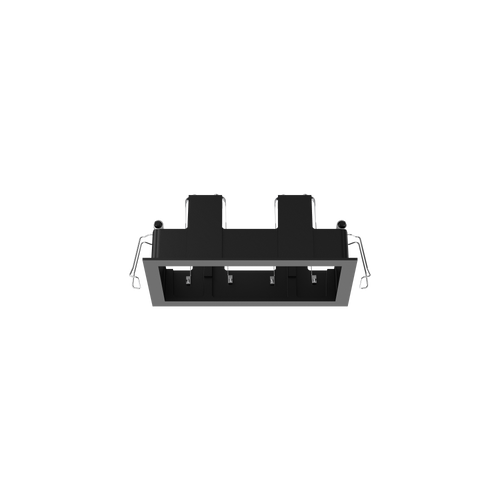

F61-SQ2
Cevon Type Recessed Rectangular Double Frame for M61 Black
Cut out
135x 75mm
F61-SQ2
Cevon Type Recessed Rectangular Double Frame for M61 White
Cut out
135x 75mm
F61-TL-SQ
Cevon Type Trimless Square Frame for M61 White
Cut out
105x 105mm

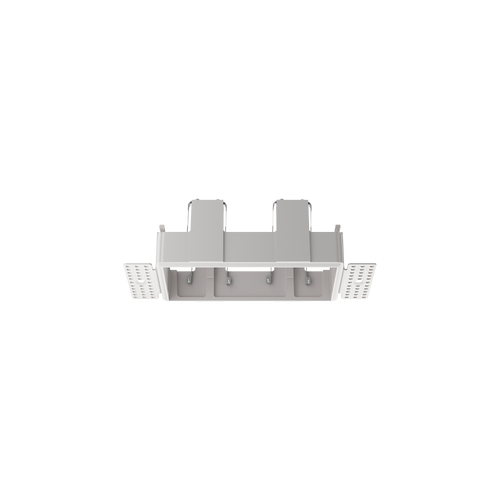

F61-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M61 White
Cut out
140 x 75mm

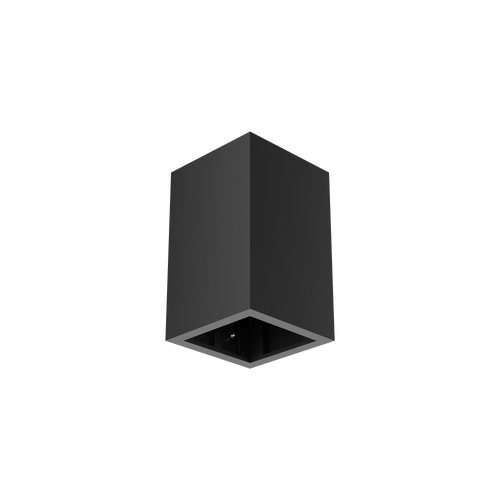

SF61-SQ
Cevon Type Surface Square Box for M61 Black

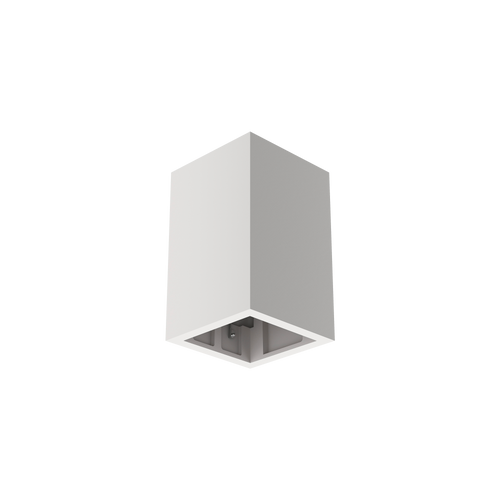

SF61-SQ
Cevon Type Surface Square Box for M61 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC200350-DX-815W
200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi

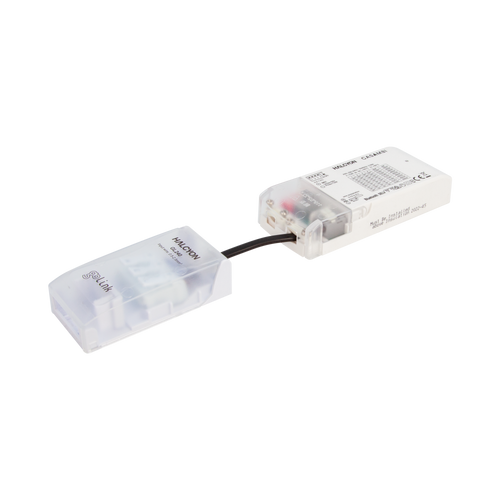

DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
6.5W
Lumens
560lm
Beam Angle
38°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
20°
Rotate Angle
355°
Ingress Protection
IP43
Height
70mm
Width
60mm
Length
60mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
