M61-T2
- Checking stock...
Configure your M61-T2 4 options
- White, Black
- Black (selected)
M61-T2-BB3K-45D Cevon M61 Type 2 Lotus Square Fixed Black 3000K
Lumens
Watts
760lm
9W
Not included
Please select from options
Not included
Please select from options
Select Module
M61-T2
Cevon M61 Type 2 Lotus Square Fixed White, Black Anti-glare Ring 2700K
Temp.
2700K Warm White
Lumens
770lm
Watts
9W
M61-T2

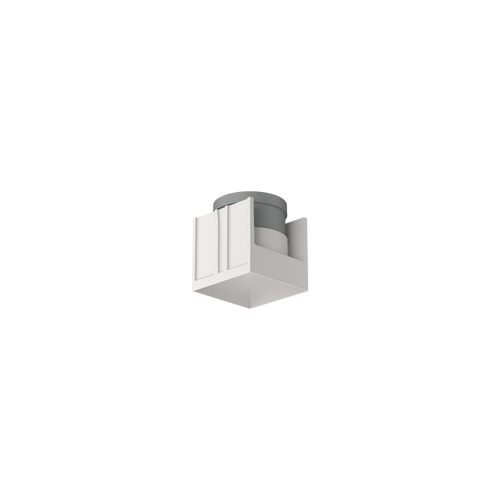

Cevon M61 Type 2 Lotus Square Fixed White, Black Anti-glare Ring 3000K
Temp.
3000K Warm White
Lumens
780lm
Watts
9W
M61-T2
Cevon M61 Type 2 Lotus Square Fixed Black 2700K
Temp.
2700K Warm White
Lumens
760lm
Watts
9W
M61-T2

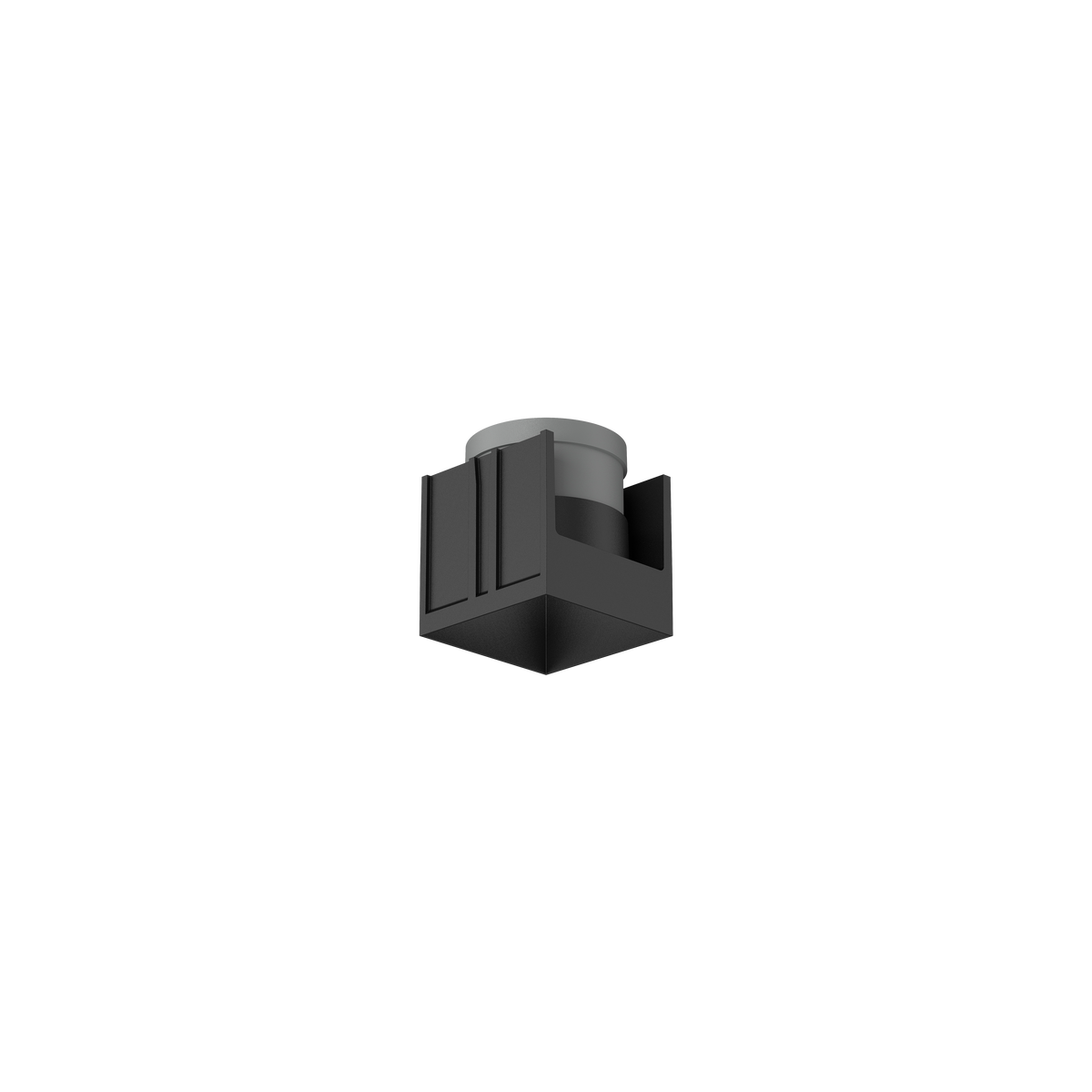

Cevon M61 Type 2 Lotus Square Fixed Black 3000K
Temp.
3000K Warm White
Lumens
760lm
Watts
9W
Select Frame
Frame sold separately. Please select below.
F61-SQ
Cevon Type Recessed Square Frame for M61 Black
Cut out
75 x 75mm
F61-SQ
Cevon Type Recessed Square Frame for M61 White
Cut out
75 x 75mm
F61-SQ2
Cevon Type Recessed Rectangular Double Frame for M61 Black
Cut out
135x 75mm
F61-SQ2
Cevon Type Recessed Rectangular Double Frame for M61 White
Cut out
135x 75mm
F61-TL-SQ
Cevon Type Trimless Square Frame for M61 White
Cut out
105x 105mm
F61-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M61 White
Cut out
140 x 75mm
SF61-SQ
Cevon Type Surface Square Box for M61 Black
SF61-SQ
Cevon Type Surface Square Box for M61 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M61-T2-BB3K-45D
Finish
Black
Colour Temp
3000K Warm White
Watts
9W
Lumens
760lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
70mm
Width
60mm
Length
60mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M61-T2-BB3K-45D
Specifications
None
