M61-T1
- Checking stock...
Configure your M61-T1 4 options
- White
- Black (selected)
M61-T1-B3K-38D Cevon M61 Type 1 Dark Art Square Adjustable Black 3000K
Lumens
Watts
Tilt Angle
540lm
6.5W
20°
Not included
Please select from options
Not included
Please select from options
Select Module
M61-T1

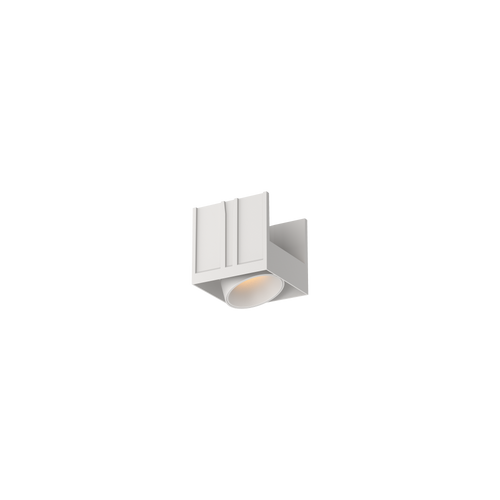

Cevon M61 Type 1 Dark Art Square Adjustable White 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
520lm
Rotate Angle
355°
Watts
6.5W
M61-T1
Cevon M61 Type 1 Dark Art Square Adjustable White 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
560lm
Rotate Angle
355°
Watts
6.5W
M61-T1
Cevon M61 Type 1 Dark Art Square Adjustable Black 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
490lm
Rotate Angle
355°
Watts
6.5W
M61-T1
Cevon M61 Type 1 Dark Art Square Adjustable Black 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
540lm
Rotate Angle
355°
Watts
6.5W
Select Frame
Frame sold separately. Please select below.
F61-SQ
Cevon Type Recessed Square Frame for M61 Black
Cut out
75 x 75mm
F61-SQ
Cevon Type Recessed Square Frame for M61 White
Cut out
75 x 75mm
F61-SQ2
Cevon Type Recessed Rectangular Double Frame for M61 Black
Cut out
135x 75mm
F61-SQ2
Cevon Type Recessed Rectangular Double Frame for M61 White
Cut out
135x 75mm
F61-TL-SQ
Cevon Type Trimless Square Frame for M61 White
Cut out
105x 105mm
F61-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M61 White
Cut out
140 x 75mm
SF61-SQ
Cevon Type Surface Square Box for M61 Black
SF61-SQ
Cevon Type Surface Square Box for M61 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W-STR
120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M61-T1-B3K-38D
Finish
Black
Colour Temp
3000K Warm White
Watts
6.5W
Lumens
540lm
Beam Angle
38°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
20°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
70mm
Width
60mm
Length
60mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
180mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
