LED441

  • Checking stock...
Batten 1200mm 350/500/550/700mA 20/28/31/40W Pri:240V 4K/6K Select
Battens

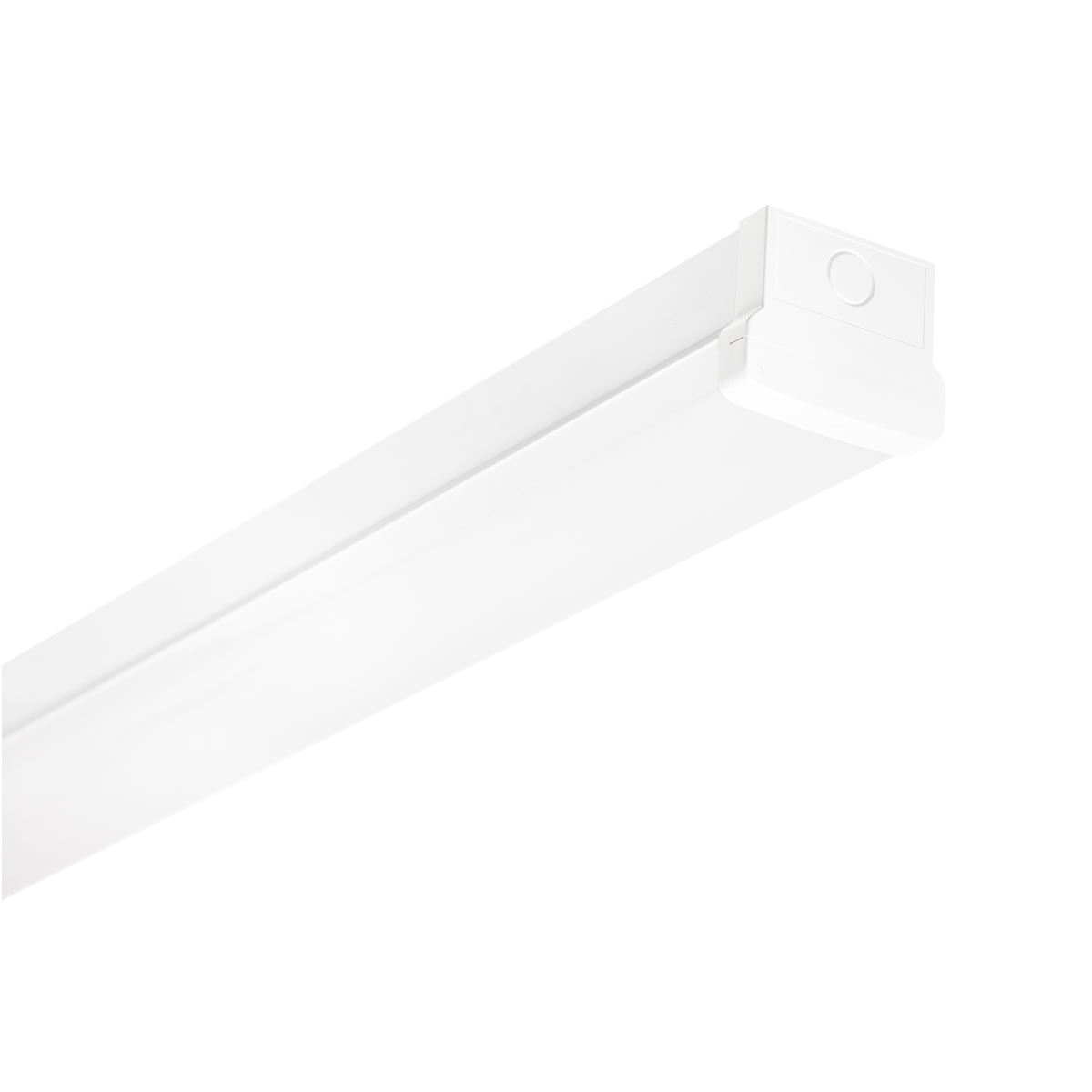

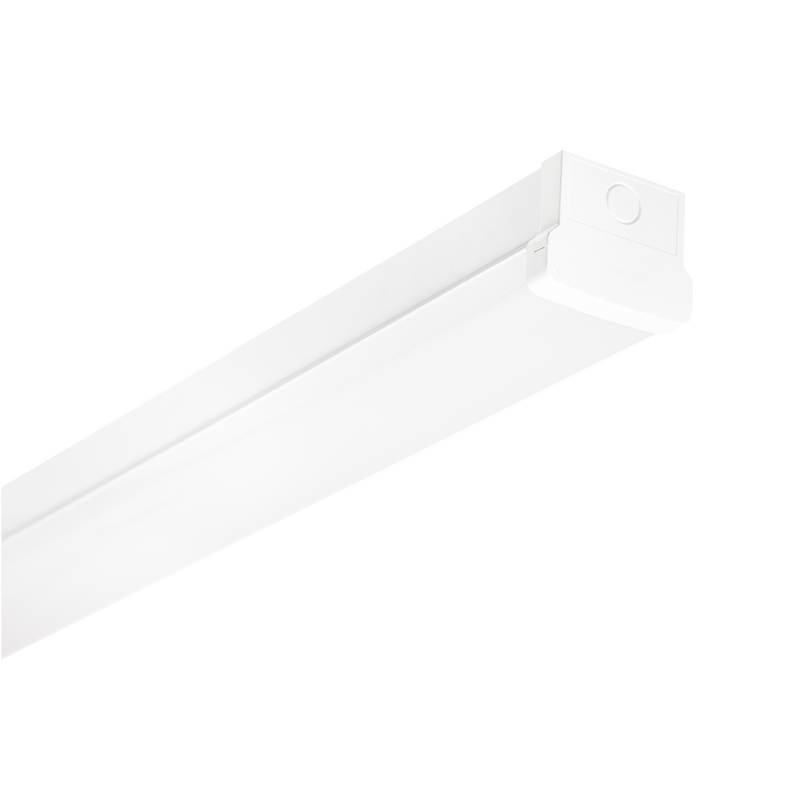

LEDE 20-40W 4ft Batten White 4000K / 6000K

LED441 W46 LEDE 20-40W 4ft Batten White 4000K / 6000K

Lumens

Watts

2600lm / 3500lm / 3800lm / 4850lm

20W / 28W / 31W / 40W

View Options

Add to

Select Battens

Select driver

driver sold separately. Please select below.

Specifications

LEDE 20-40W 4ft Batten White 4000K / 6000K

Battens

LED441 W46

Finish

White

Colour Temp

4000K or 6000K (Selectable)

Watts

20W / 28W / 31W / 40W

Lumens

2600lm / 3500lm / 3800lm / 4850lm

Beam Angle

120°

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

CRI

80

Lifespan

54,000hrs (L70 B10)

Ingress Protection

IP20

Height

70mm

Width

84mm

Length

1223mm

Binning

SDCM 5

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

SPCC (Steel), PC Plastic

Electrical Class

Class I luminaire, requires earth

Driver Output Current

Adjustable 350mA, 500mA, 550mA, 700mA

Driver Included / Incorporated

Driver Incorporated

Impact Rating

IK09

Warranty

5 Year Warranty
