LED612-W34KA-EM
LED612
- Checking stock...

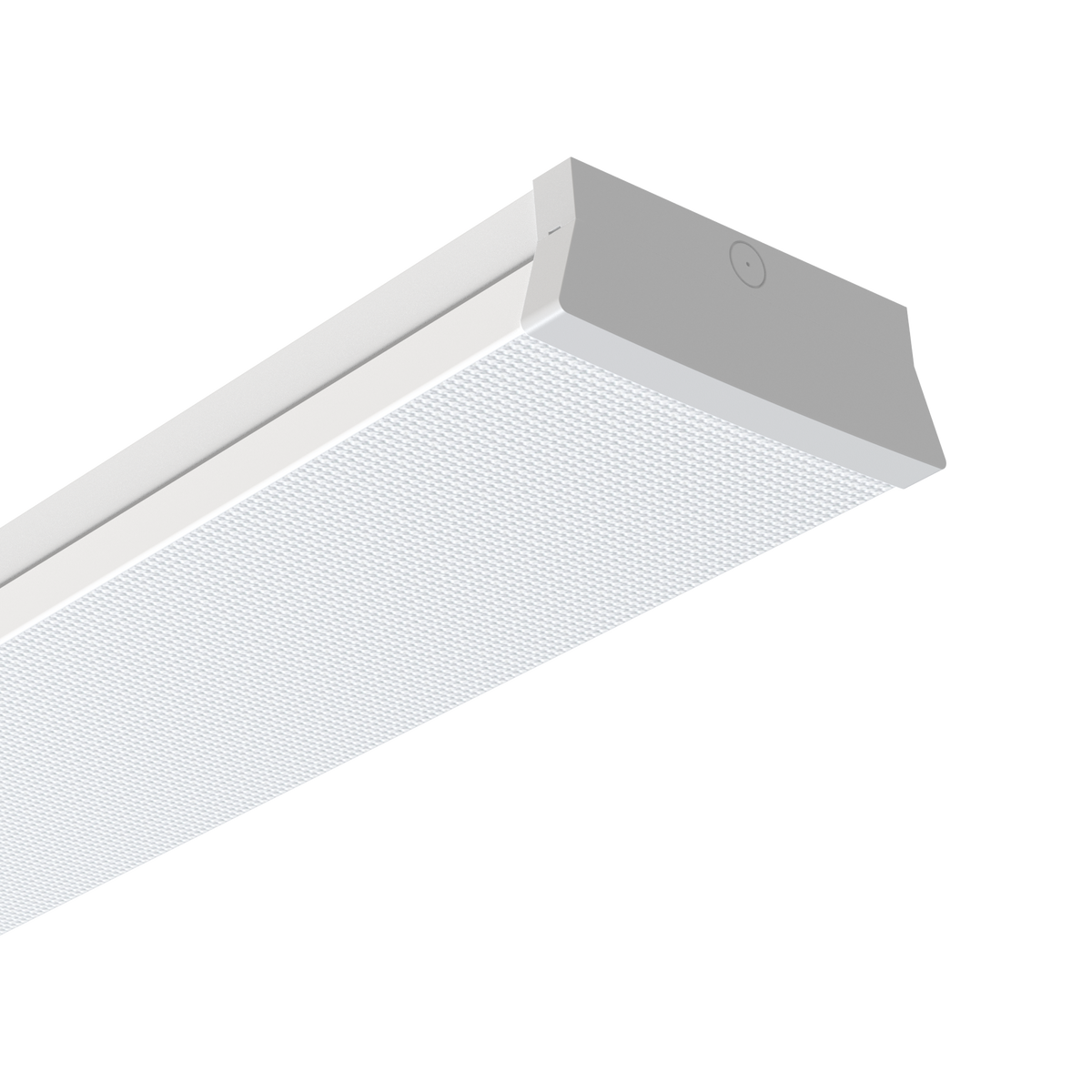

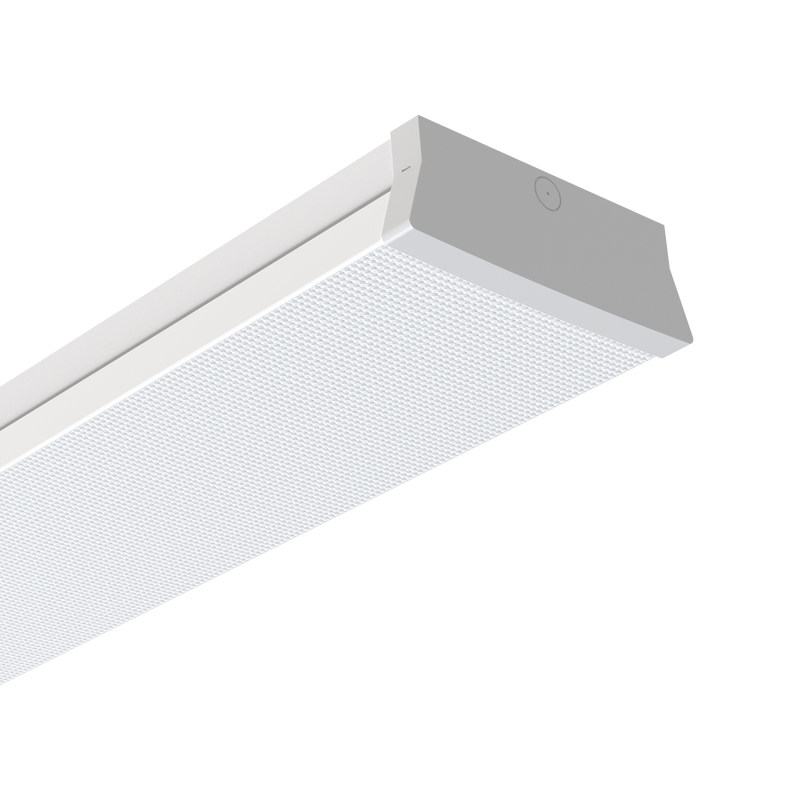

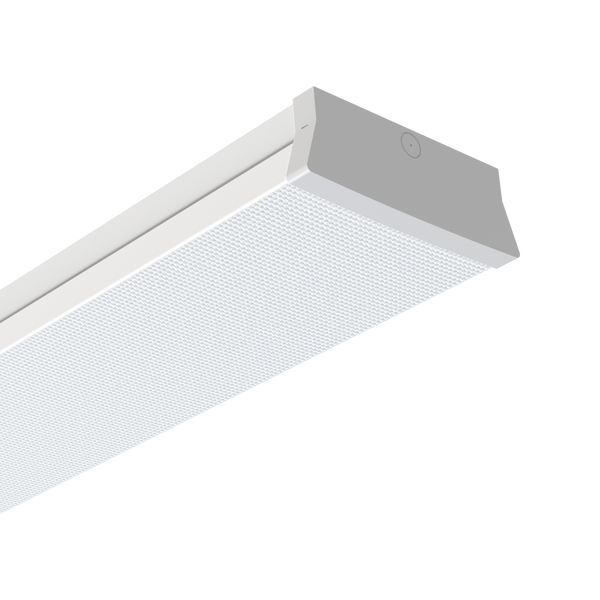

LED612-W34KA-EM Genesis 1220mm 3K/4K Batten Emergency 3000K / 4000K
Lumens
Watts
3100lm, 3800lm, 4000lm or 4700lm (Selectable)
28W, 34W, 36W or 42W
View Options
Select Battens
LED612
Genesis 1220mm 3K/4K Batten Emergency 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3100lm, 3800lm, 4000lm or 4700lm (Selectable)
Watts
28W, 34W, 36W or 42W
LED612
Genesis 1220mm Batten Standard 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
2700lm, 3350lm, 3960lm or 4500lm (Selectable)
Watts
20W, 25W, 30W or 35W
LED612
Genesis 1220mm Batten Dimmable 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3550lm, 4000lm, 4250lm or 4700lm (Selectable)
Watts
30W, 34W, 36W or 40W
LED612
Genesis 1220mm Batten Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4500lm
Watts
35W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
28W, 34W, 36W or 42W
Lumens
3100lm, 3800lm, 4000lm or 4700lm (Selectable)
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Non-dimmable
CRI
90
Lifespan
70,000hrs (L80 B50)
Ingress Protection
IP20
Height
72mm
Width
210mm
Length
1220mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
Emergency: 540lm 90mins (C0/D40, C90/D32)
Material
Steel, PC
Electrical Class
Class I luminaire, requires earth
Driver Included / Incorporated
Driver Incorporated
Ambient Operating Temperature
25°C
Power Factor
0
Impact Rating
IK02
Warranty
5 Year Warranty
