M40-T8-WB4K-36D
M40-T8
- Indent Order - Request Leadtime & Availability
M40-T8-WB4K-36D Cevon M40 Type 8 Adjustable Scopic White, Black 4000K
Lumens
Watts
Tilt Angle
170lm
4W
30°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M40-T8
Cevon M40 Type 8 Adjustable Scopic White, Black 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Lumens
170lm
Rotate Angle
360°
Watts
4W
M40-T8
Cevon M40 Type 8 Adjustable Scopic White, Black 2700K
Temp.
2700K Warm White
Tilt Angle
30°
Lumens
160lm
Rotate Angle
360°
Watts
4W
M40-T8
Cevon M40 Type 8 Adjustable Scopic White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Lumens
165lm
Rotate Angle
360°
Watts
4W
M40-T8
Cevon M40 Type 8 Adjustable Scopic Black 2700K
Temp.
2700K Warm White
Tilt Angle
30°
Lumens
160lm
Rotate Angle
360°
Watts
4W
M40-T8

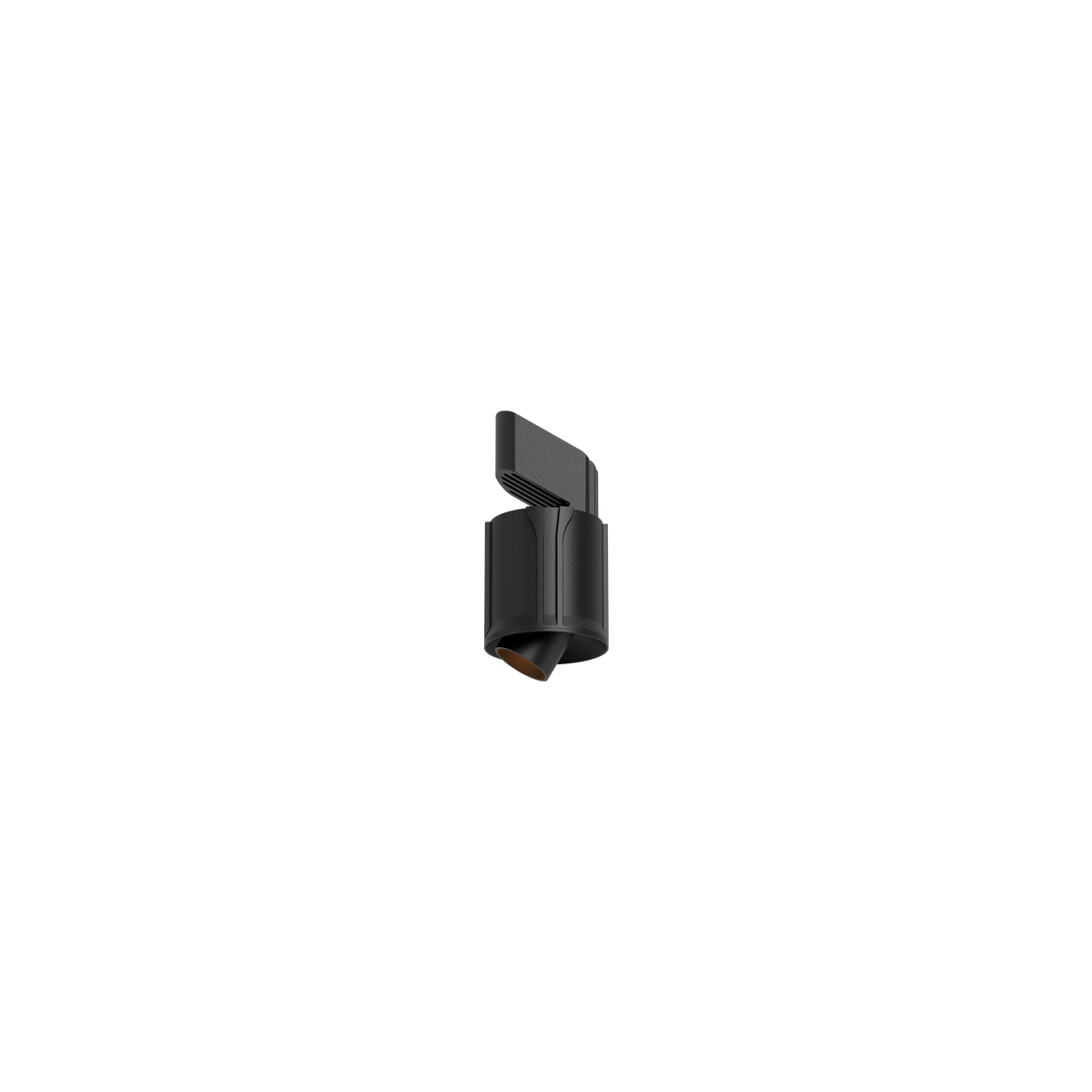

Cevon M40 Type 8 Adjustable Scopic Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Lumens
165lm
Rotate Angle
360°
Watts
4W
M40-T8
Cevon M40 Type 8 Adjustable Scopic Black 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Lumens
170lm
Rotate Angle
360°
Watts
4W
Select Frame
Frame sold separately. Please select below.
F40-RR
Cevon Type Recessed Round Frame for M40 Black
Cut out
Ø57mm
F40-RR
Cevon Type Recessed Round Frame for M40 White
Cut out
Ø57mm
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 Black
Cut out
2xØ57mm @53mm centres
F40-RR2
Cevon Type Recessed Oval Double Frame for M40 White
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ
Cevon Type Recessed Square Frame for M40 Black
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RSQ
Cevon Type Recessed Square Frame for M40 White
Temp.
4000K Natural White
Cut out
Ø57mm
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 Black
Temp.
4000K Natural White
Cut out
2xØ57mm @53mm centres
F40-RSQ2
Cevon Type Recessed Rectangular Double Frame for M40 White
Cut out
2xØ57mm @53mm centres
F40-TL
Cevon Type Trimless Frame for M40 White
Cut out
Ø85mm
Select driver
driver sold separately. Please select below.
Dimmable

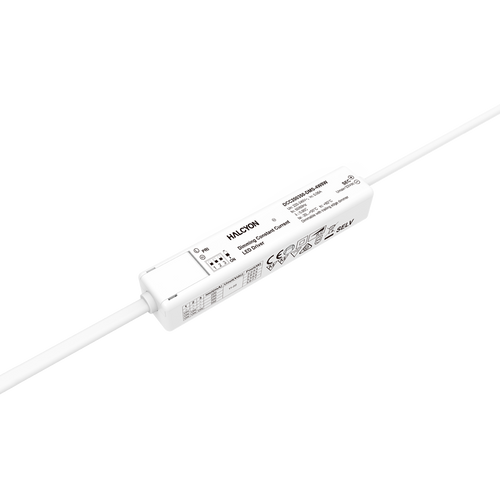

DCC200350-DMS-4W8W
200-350mA 7.7W Constant Current Mini Slim Phase-cut Dimmable Driver
Watts
4W-8W
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
White, Black
Colour Temp
4000K Natural White
Watts
4W
Lumens
170lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
30°
Rotate Angle
360°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
40mm
Height
90mm
Binning
SDCM 3
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
Resources
