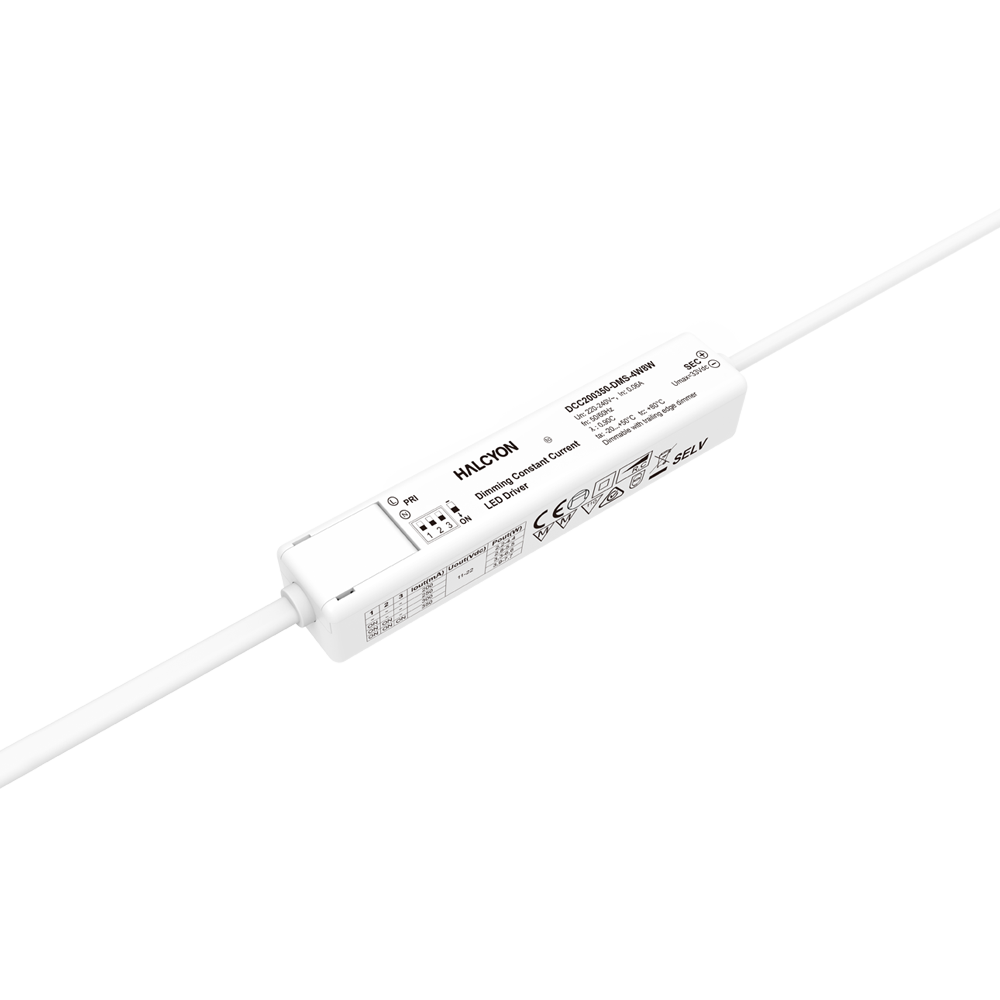

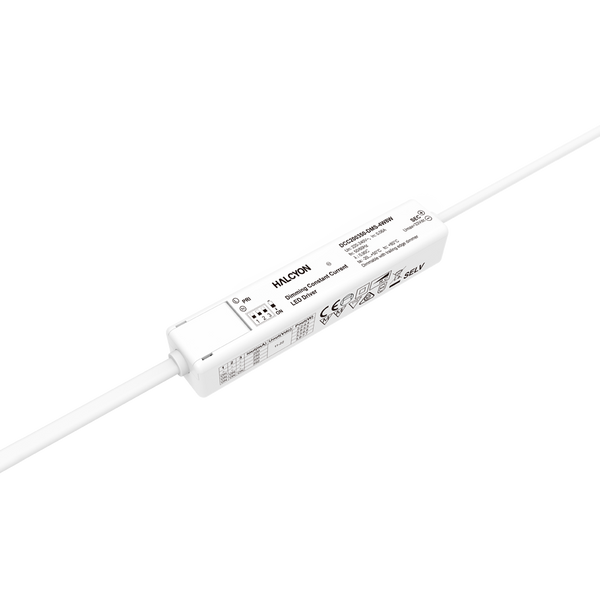

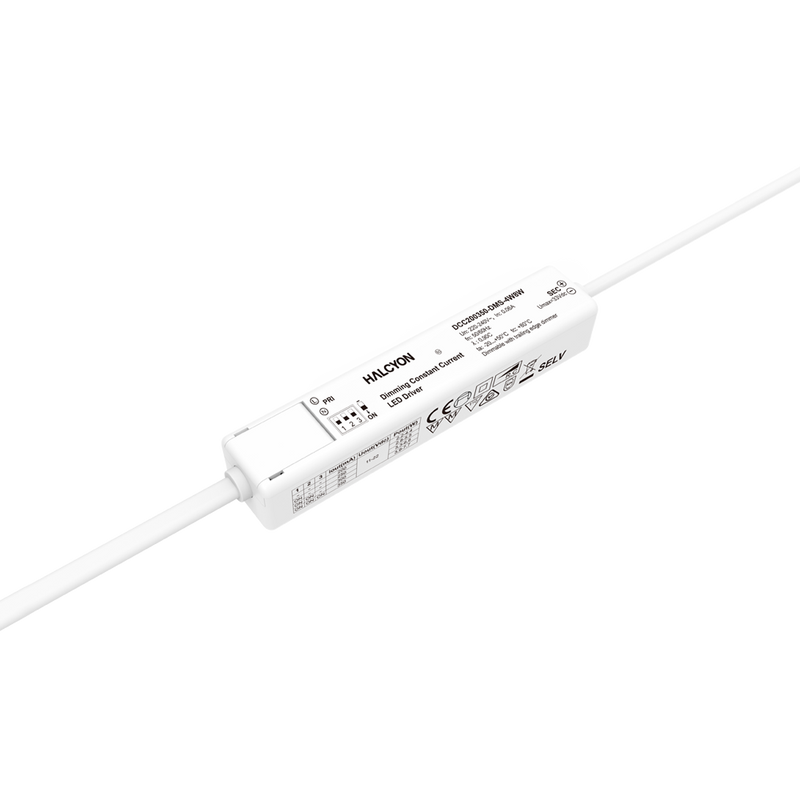

200-350mA 7.7W Constant Current Mini Slim Phase-cut Dimmable Driver

DCC200350-DMS-4W8W

All DCC200350-DMS-4W8W

DCC200350-DMS-4W8W

  • Checking stock...
Driver Mini Slim Phase-Cut Dimmable Pri:240V Sec:11-22V 200-350mA CC 4-8W Pre-wired Primary and secondary
Dimmable (phase-cut)
200-350mA 7.7W Constant Current Mini Slim Phase-cut Dimmable Driver

DCC200350-DMS-4W8W 200-350mA 7.7W Constant Current Mini Slim Phase-cut Dimmable Driver

Watts

4W-8W

Watts

4W-8W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

200-350mA 7.7W Constant Current Mini Slim Phase-cut Dimmable Driver

Dimmable (phase-cut)

DCC200350-DMS-4W8W

Watts

4W-8W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

18.5mm

Width

20mm

Length

100mm

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

11-22V

Driver Output Current

Adjustable 200mA, 250mA, 300mA, 350mA

Power Factor

0.90C

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
