R782 WW
R782
- Checking stock...

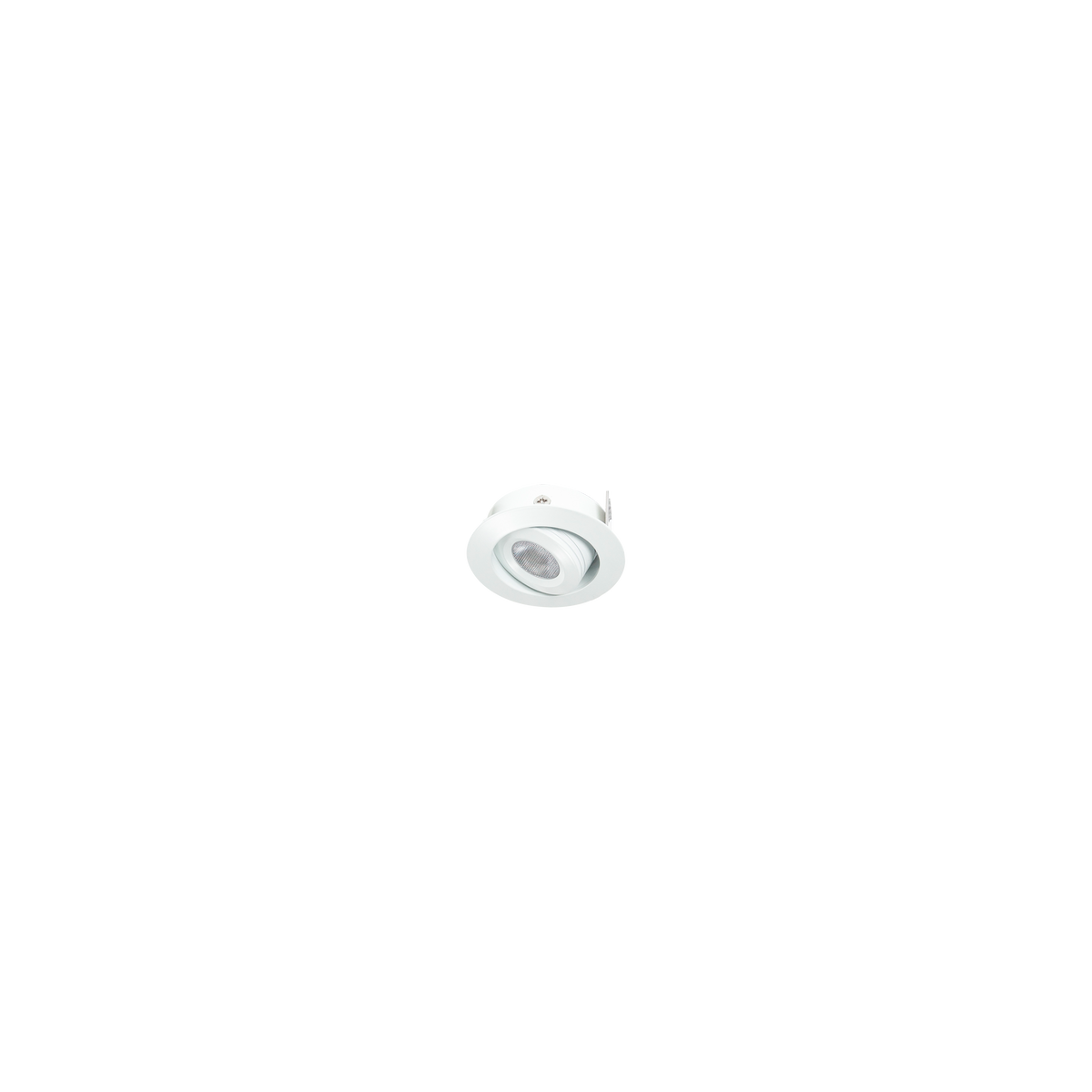

R782 WW Mini Semi Narrow Beam Tilt White 3000K
Lumens
Watts
Tilt Angle
120lm
3W
30°
View Options
Add Driver
driver not included
View Options
Select Cabinet & Display

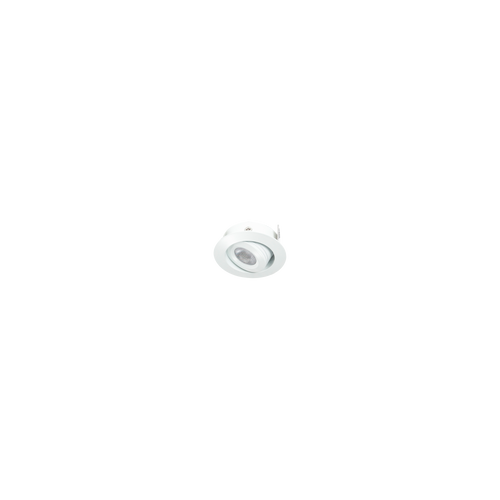

R782
Mini Semi Narrow Beam Tilt White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
46mm
Lumens
120lm
Watts
3W

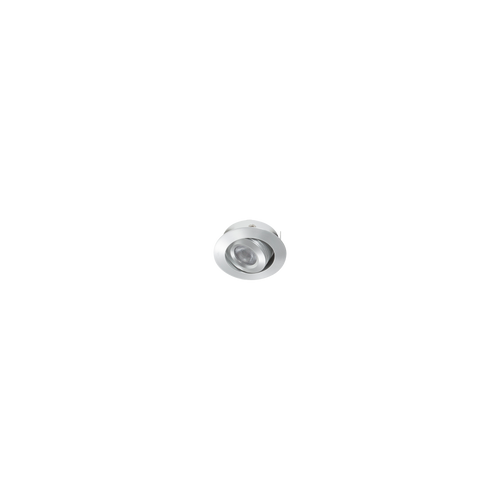

R782
Mini Semi Narrow Beam Tilt Brushed Aluminium 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
46mm
Lumens
120lm
Watts
3W
Select driver
driver sold separately. Please select below.
Dimmable
DCC700-DM-4W-IP
IP65 700mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W

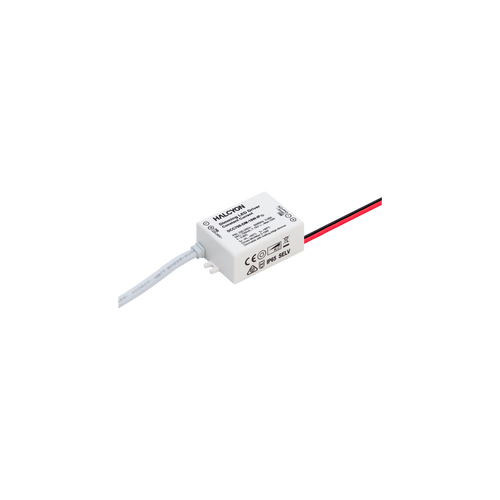

DCC700-DM-10W-IP
IP65 700mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC700-DX-12W
700mA 12W Dimmable Constant Current DX Series Driver
Watts
7W-12W

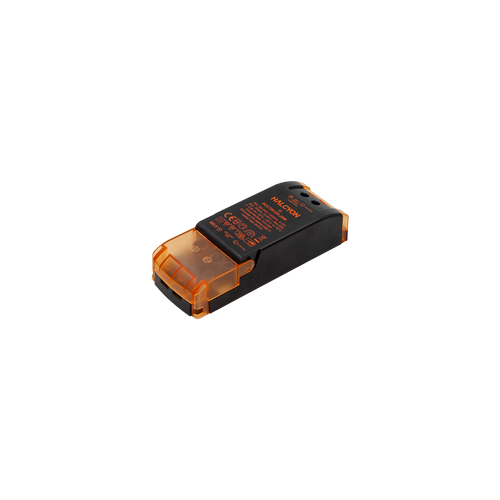

DCC700-DX-20W
700mA 20W Dimmable Constant Current DX Series Driver
Watts
10.5W-20W

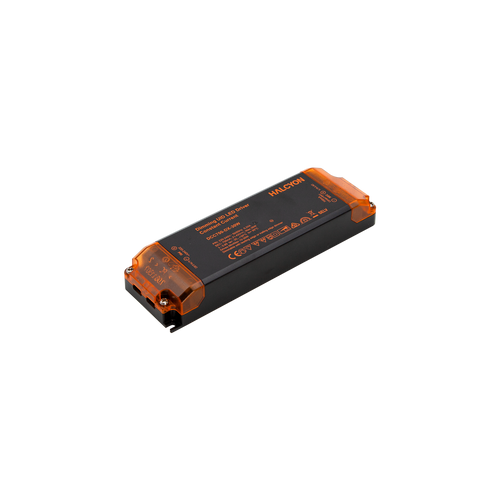

DCC700-DX-30W
700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W

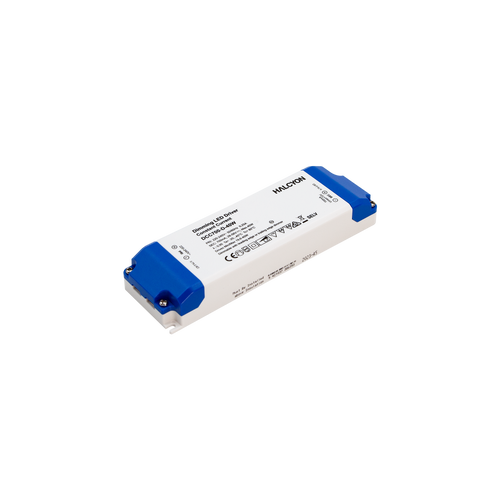

DCC700-D-40W
700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Non Dimmable

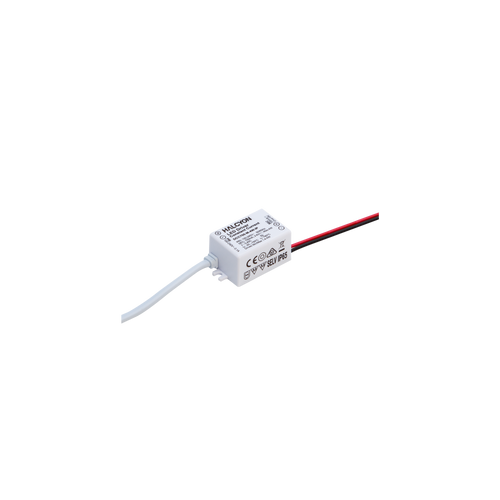

DCC700-M-4W-IP
IP65 700mA 4W Constant Current Mini Non-dimmable Driver
Watts
1.4W-4W

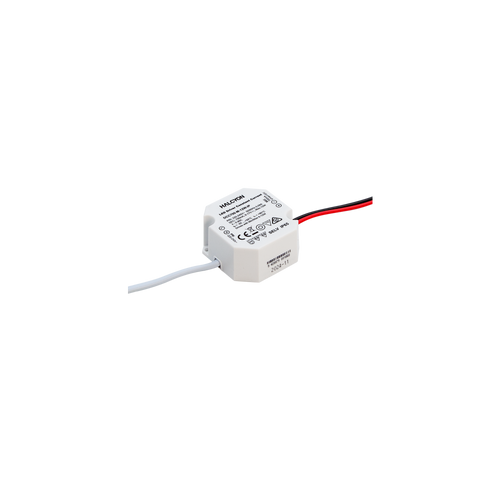

DCC700-M-12W-IP
IP65 700mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W

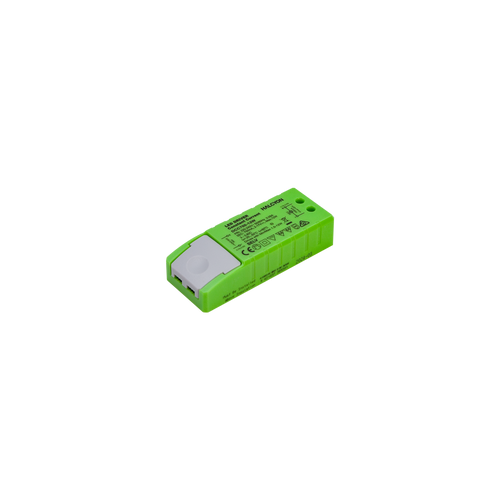

DCC700-12W
700mA 12W Constant Current Non-dimmable Driver
Watts
1.5W-12W

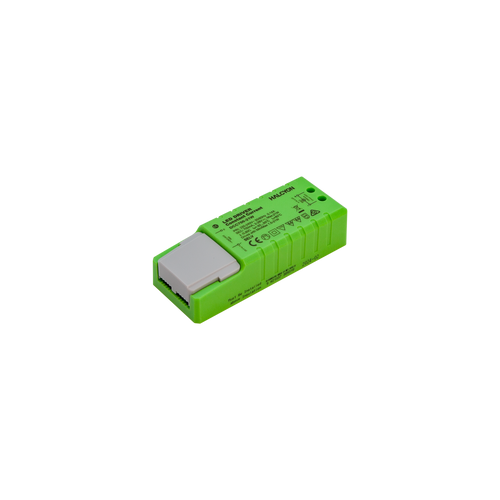

DCC700-21W
700mA 21W Constant Current Non-dimmable Driver
Watts
1.5W-21W

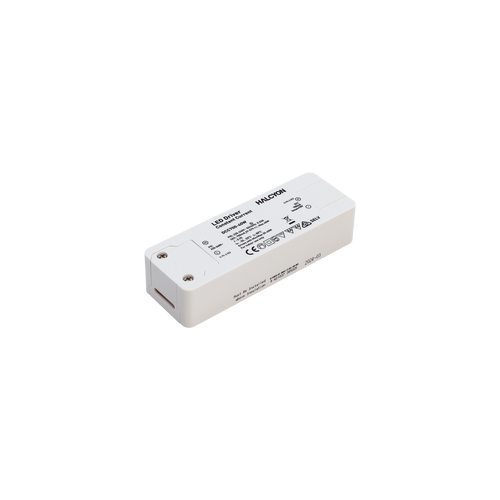

DCC700-40W
700mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
3W
Lumens
120lm
Beam Angle
36°
Input
700mA
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs
Tilt Angle
30°
Ingress Protection
IP20
Cut Out
46mm
Diameter
52mm
Height
25mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
700mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
