R762 WB3UK
R762
- Checking stock...

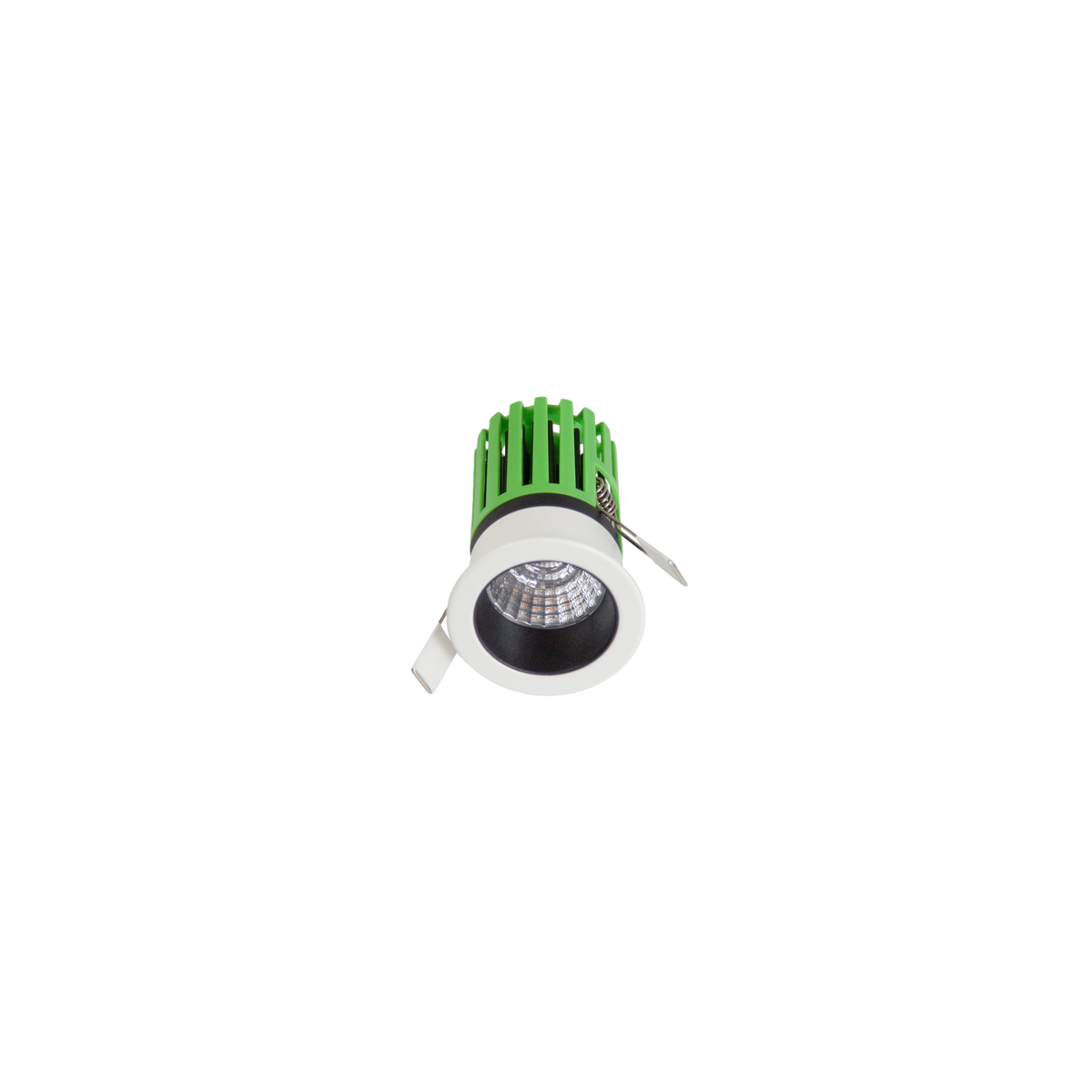

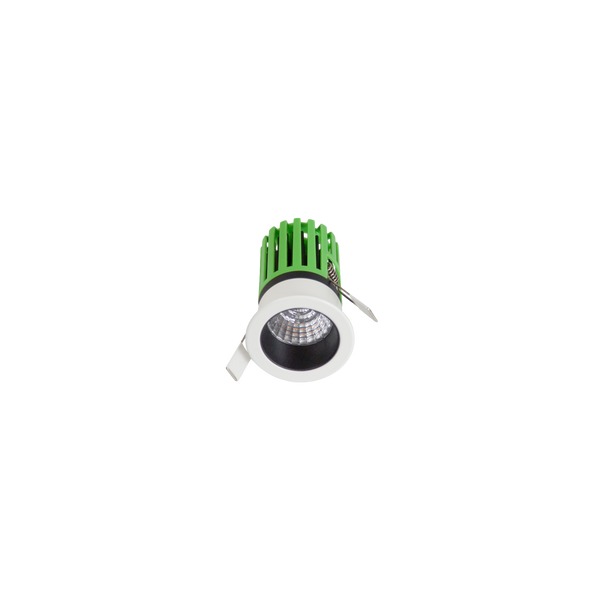

R762 WB3UK Design Series Small Downlight Kit White, Black 3000K
Lumens
Watts
540lm
12W
Lumens
Watts
540lm
12W
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Specifications
Finish
White, Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
540lm
Beam Angle
45°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs
Ingress Protection
IP44
Cut Out
57mm
Diameter
64mm
Height
93mm
Binning
SDCM 5
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium with Patented Heat Shield
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
