R741 W34
R741
- Checking stock...

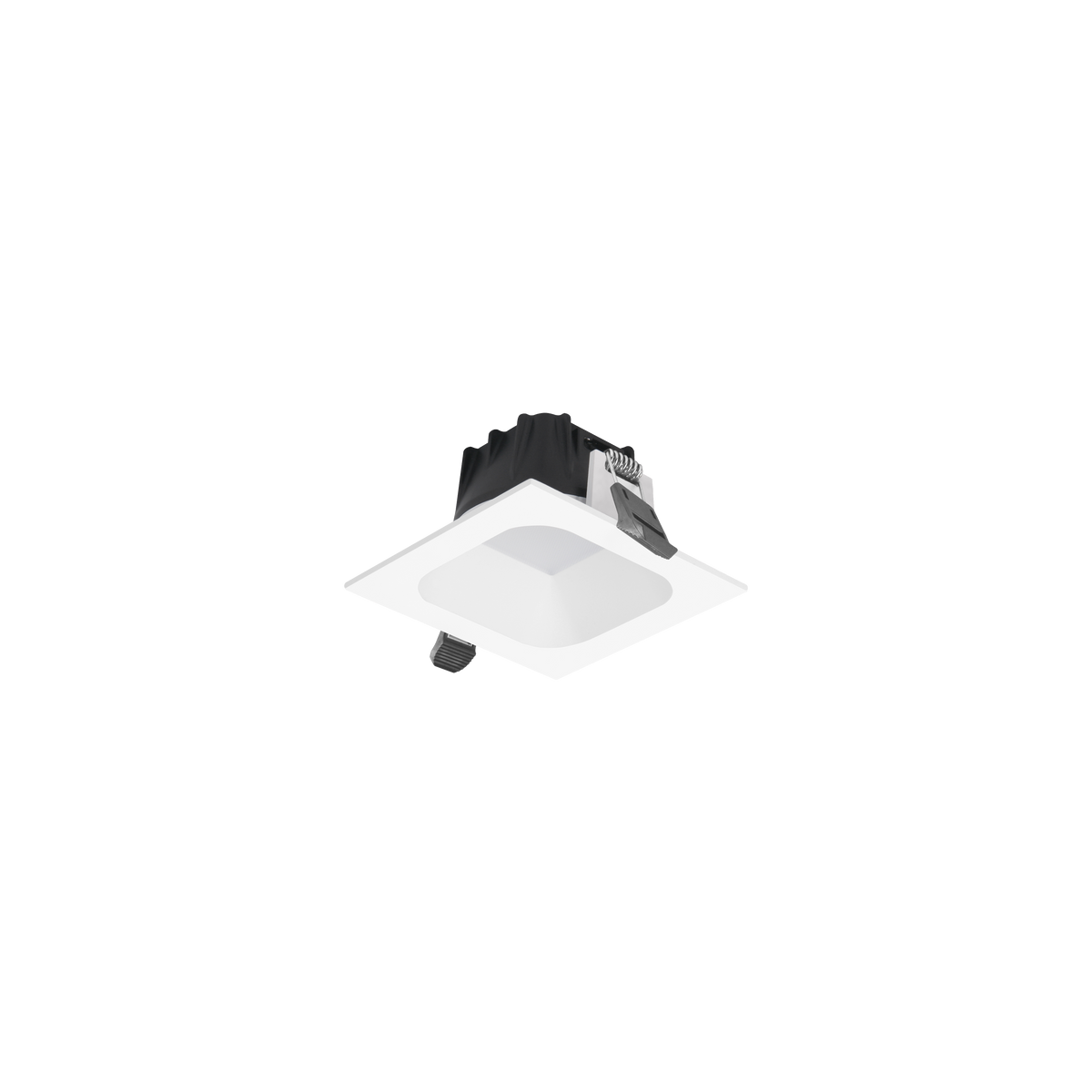

R741 W34 Square Commercial Small Downlight Kit White 3000K / 4000K
Lumens
Watts
1190lm (See Spec Sheet)
10W
Lumens
Watts
1190lm (See Spec Sheet)
10W
DCC500-DX-12W
Watts
6W-12W
Watts
6W-12W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
10W
Lumens
1190lm (See Spec Sheet)
Beam Angle
75°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
Cut Out
90mm
Height
52mm
Width
100mm
Length
100mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
500mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

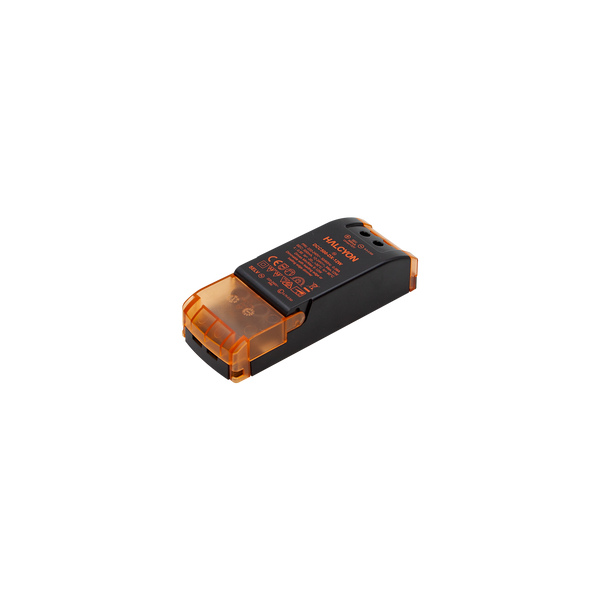

500mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
