R602 W4KA
R602
- Checking stock...

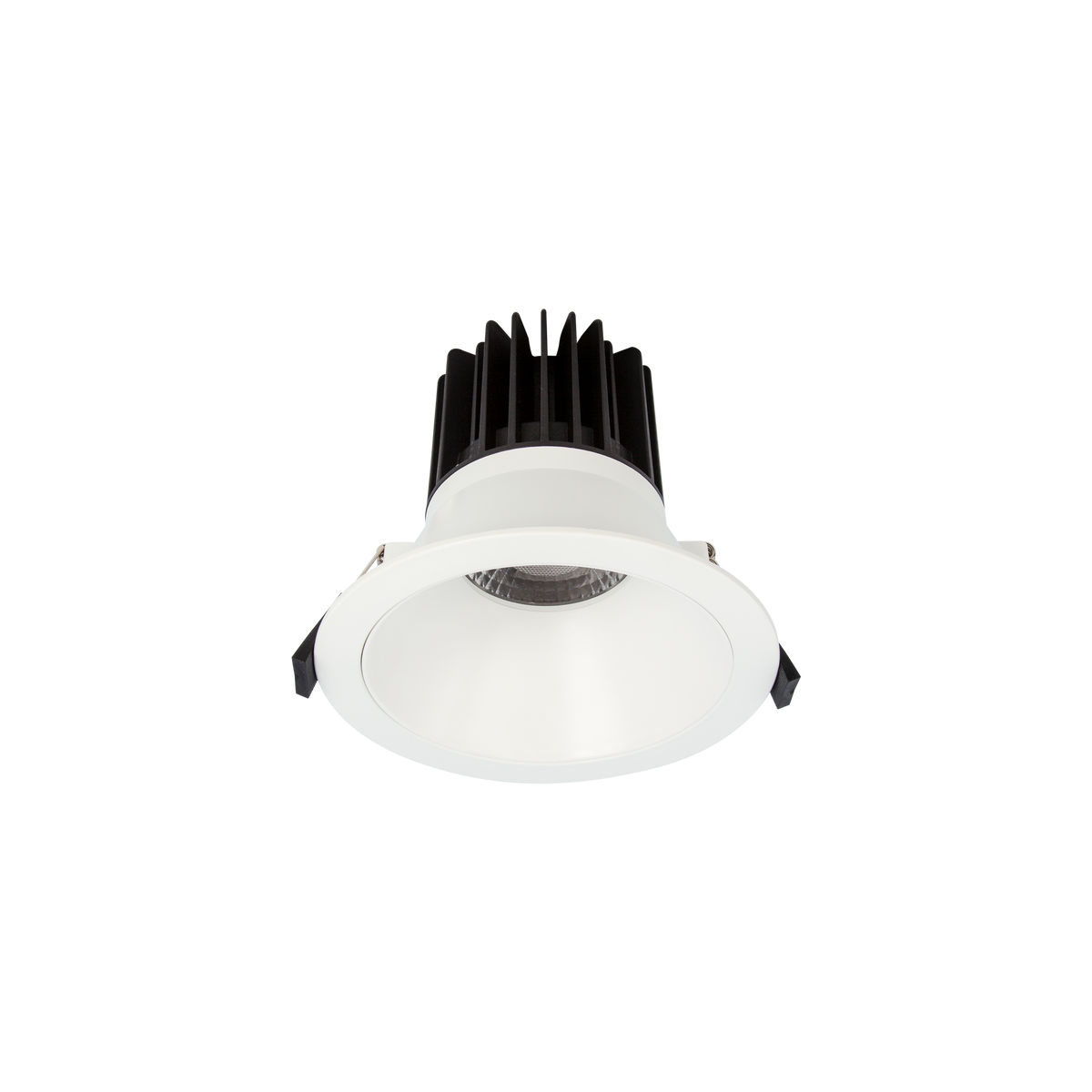

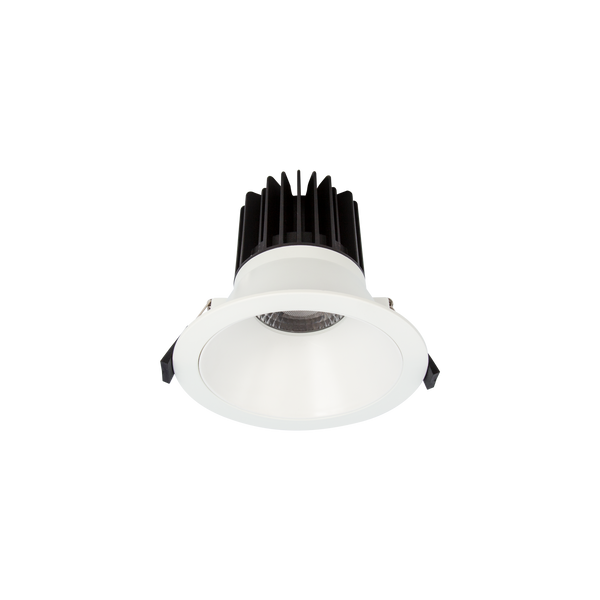

R602 W4KA Design Standard Large Downlight Kit - Triple Wattage White 4000K
Lumens
Watts
1010lm, 1360lm or 1870lm (Selectable)
11W, 15W or 19W
View Options
DCC260600-DX-1020W
Watts
10.4W-19.8W
Watts
10.4W-19.8W
Select Downlights
R602
Design Standard Large Downlight Kit - Triple Wattage White 4000K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
1010lm, 1360lm or 1870lm (Selectable)
Watts
11W, 15W or 19W
R602
Design Standard Large Downlight Kit - Triple Wattage White 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
1000lm, 1350lm or 1850lm (Selectable)
Watts
11W, 15W or 19W
R602
Design Standard Large Downlight Kit - Triple Wattage Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
950lm, 1280lm or 1750lm (Selectable)
Watts
11W, 15W or 19W
R602
Design Standard Large Downlight Kit - Triple Wattage Black 4000K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
960lm, 1290lm or 1770lm (Selectable)
Watts
11W, 15W or 19W
R602
Design Standard Large Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for retrofit Applications)
Lumens
940lm
Watts
12W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
11W, 15W or 19W
Lumens
1010lm, 1360lm or 1870lm (Selectable)
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP54
RAL Colour
RAL9016
Cut Out
130-140mm (Suitable for Retrofit Applications)
Diameter
150mm
Height
130mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC, PMMA
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260-600mA 19.8W Dimmable CC DX Series Driver
Watts
10.4W-19.8W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
