R602 B3K
R602
- Checking stock...

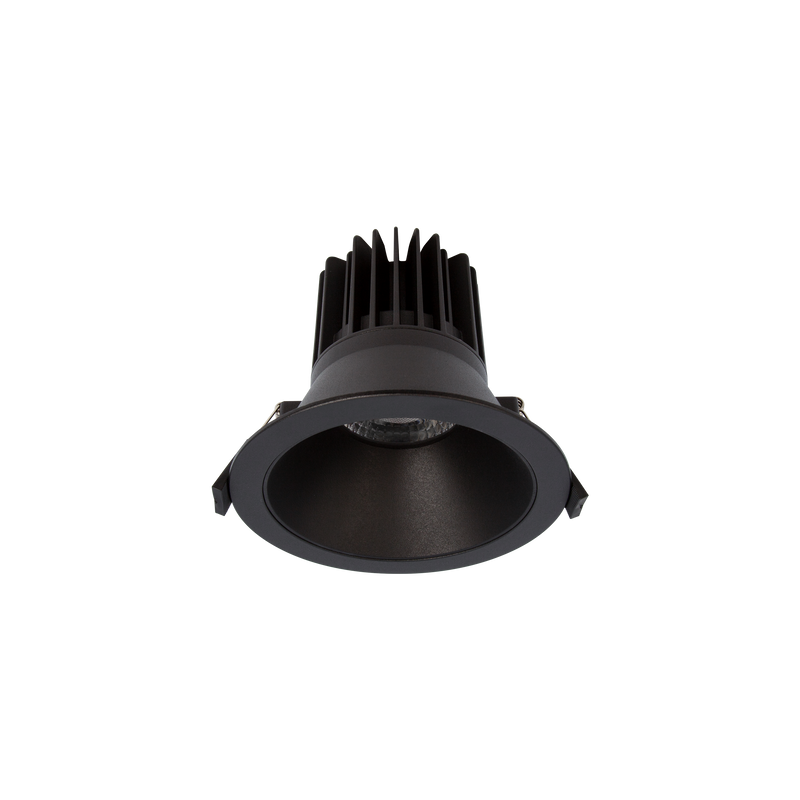

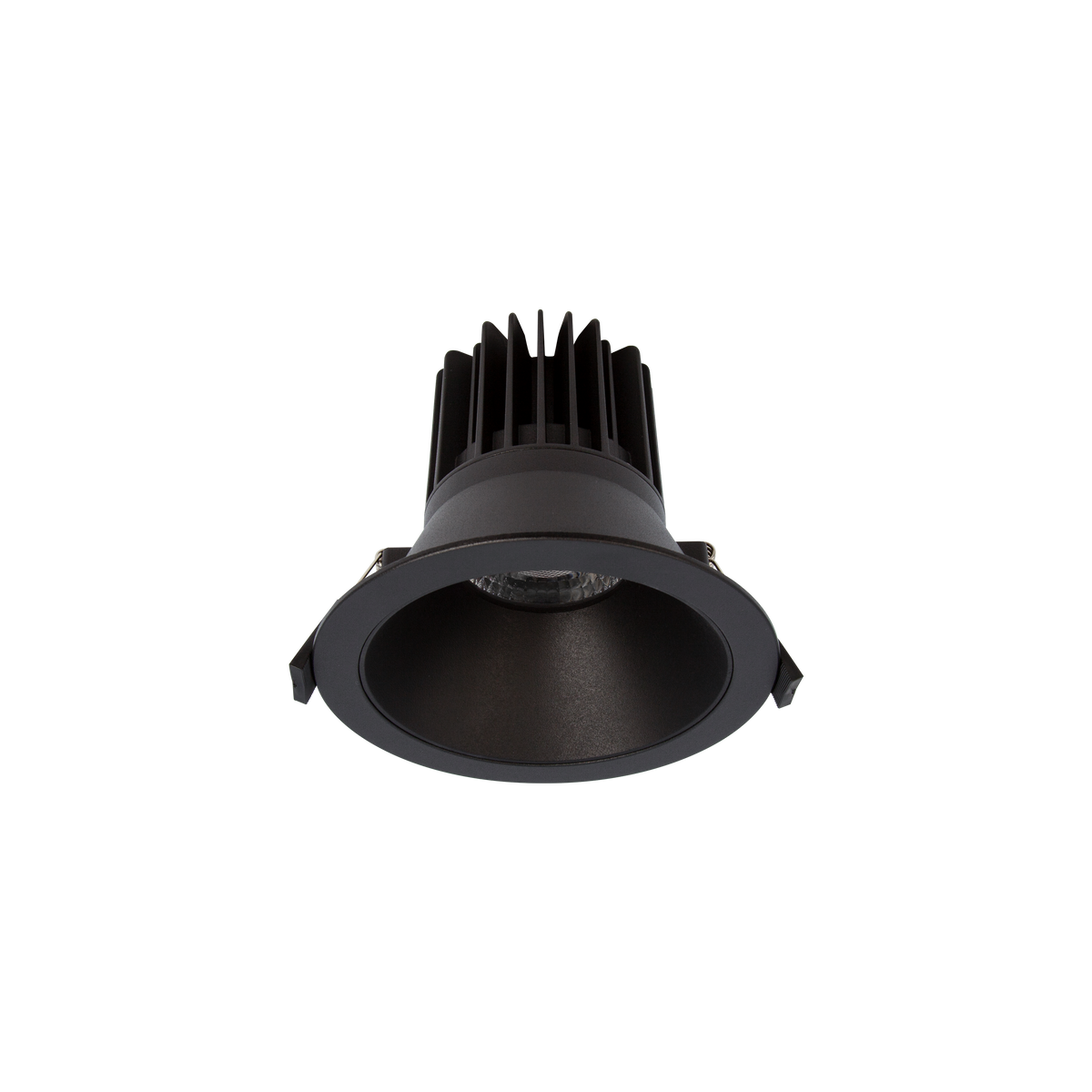

R602 B3K Design Standard Large Downlight Kit Black 3000K
Lumens
Watts
940lm
12W
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R602
Design Standard Large Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for retrofit Applications)
Lumens
940lm
Watts
12W
R602
Design Standard Large Downlight Kit - Triple Wattage White 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
1000lm / 1350lm / 1850lm
Watts
11W / 15W / 19W
R602

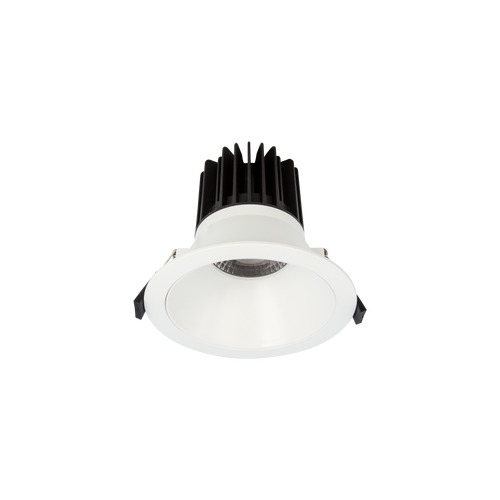

Design Standard Large Downlight Kit - Triple Wattage White 4000K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
1010lm / 1360lm / 1870lm
Watts
11W / 15W / 19W
R602
Design Standard Large Downlight Kit - Triple Wattage Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
?1750lm (See Spec Sheet)
Watts
11W / 15W / 19W
R602
Design Standard Large Downlight Kit - Triple Wattage Black 4000K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
960lm / 1290lm / 1770lm
Watts
11W / 15W / 19W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
940lm
Beam Angle
60°
Dimming / Control
Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
Cut Out
130-140mm (Suitable for retrofit Applications)
Diameter
150mm
Height
130.5mm
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC, PMMA
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
