R602 W3KA
R602
- Checking stock...

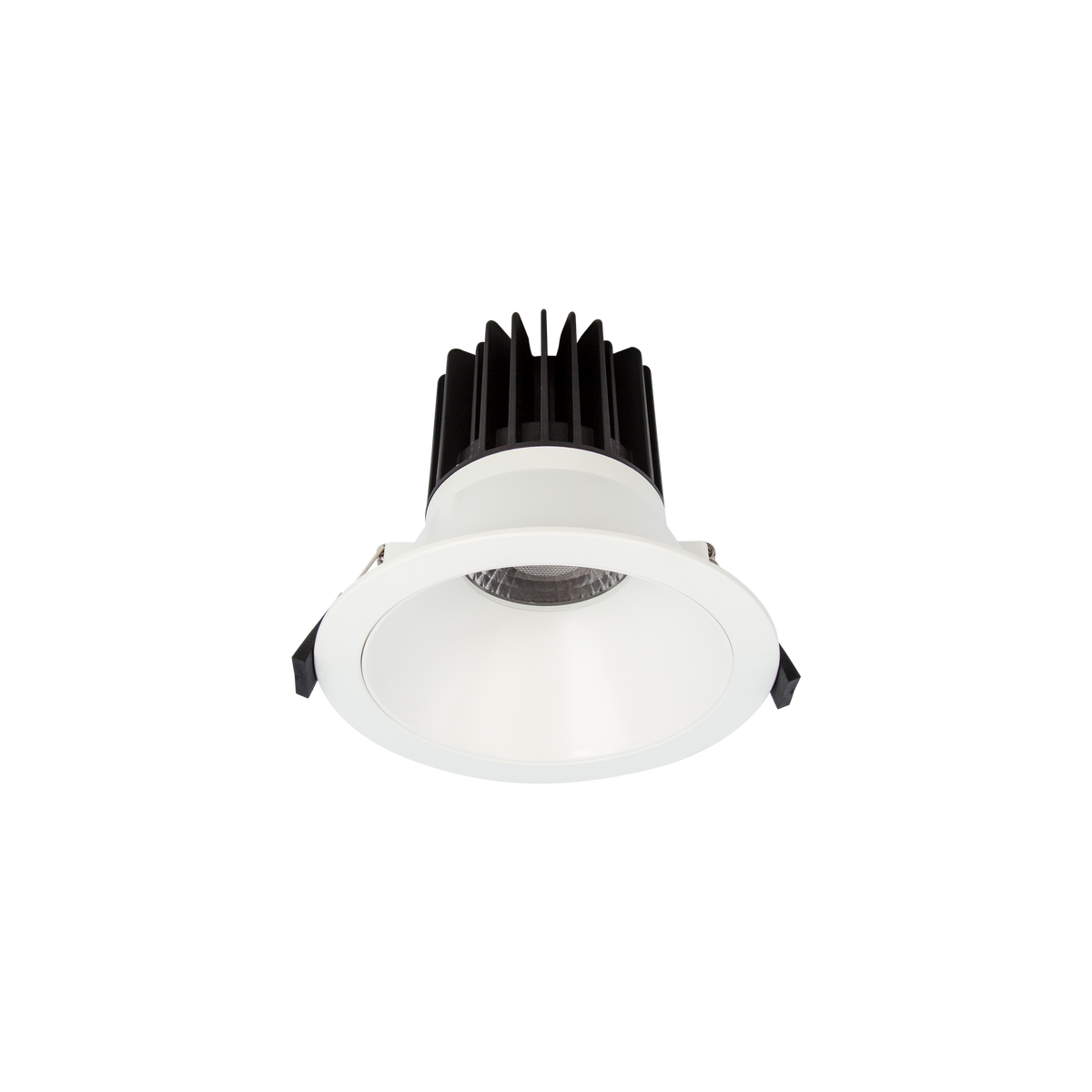

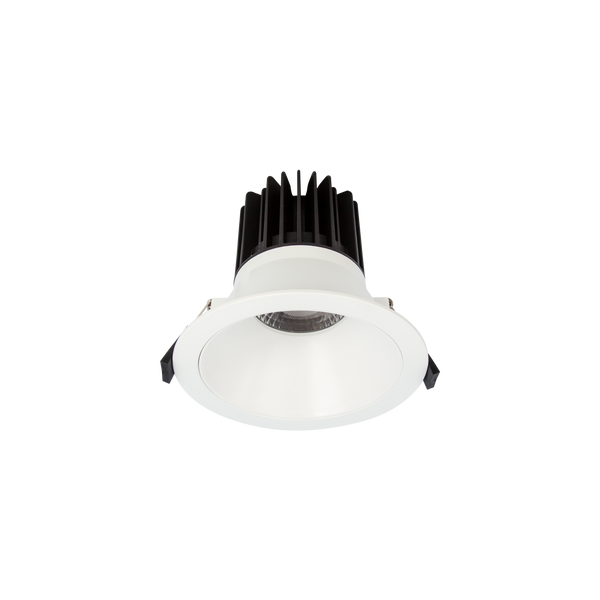

R602 W3KA Design Standard Large Downlight Kit - Triple Wattage White 3000K
Lumens
Watts
1000lm / 1350lm / 1850lm
11W / 15W / 19W
View Options
DCC260600-DX-1020W
Watts
10.4W-19.8W
Watts
10.4W-19.8W
Select Downlights
R602
Design Standard Large Downlight Kit - Triple Wattage White 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
1000lm / 1350lm / 1850lm
Watts
11W / 15W / 19W
R602
Design Standard Large Downlight Kit - Triple Wattage White 4000K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
1010lm / 1360lm / 1870lm
Watts
11W / 15W / 19W
R602
Design Standard Large Downlight Kit - Triple Wattage Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
?1750lm (See Spec Sheet)
Watts
11W / 15W / 19W
R602
Design Standard Large Downlight Kit - Triple Wattage Black 4000K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
960lm / 1290lm / 1770lm
Watts
11W / 15W / 19W

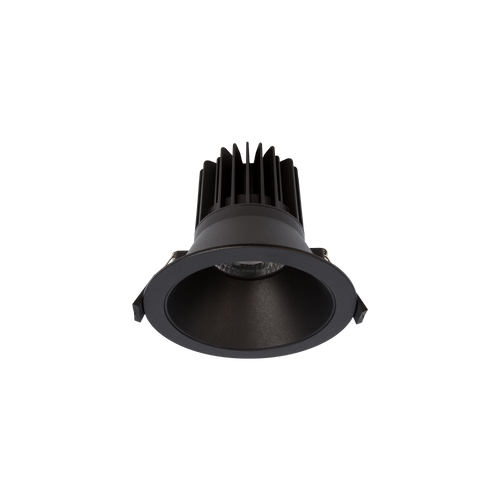

R602
Design Standard Large Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for retrofit Applications)
Lumens
940lm
Watts
12W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
11W / 15W / 19W
Lumens
1000lm / 1350lm / 1850lm
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP54
RAL Colour
RAL9016
Cut Out
130-140mm (Suitable for Retrofit Applications)
Diameter
150mm
Height
130mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC, PMMA
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260-600mA 19.8W Dimmable CC DX Series Driver
Watts
10.4W-19.8W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
