R534-BHGB3K-D-24D
R534
- Checking stock...

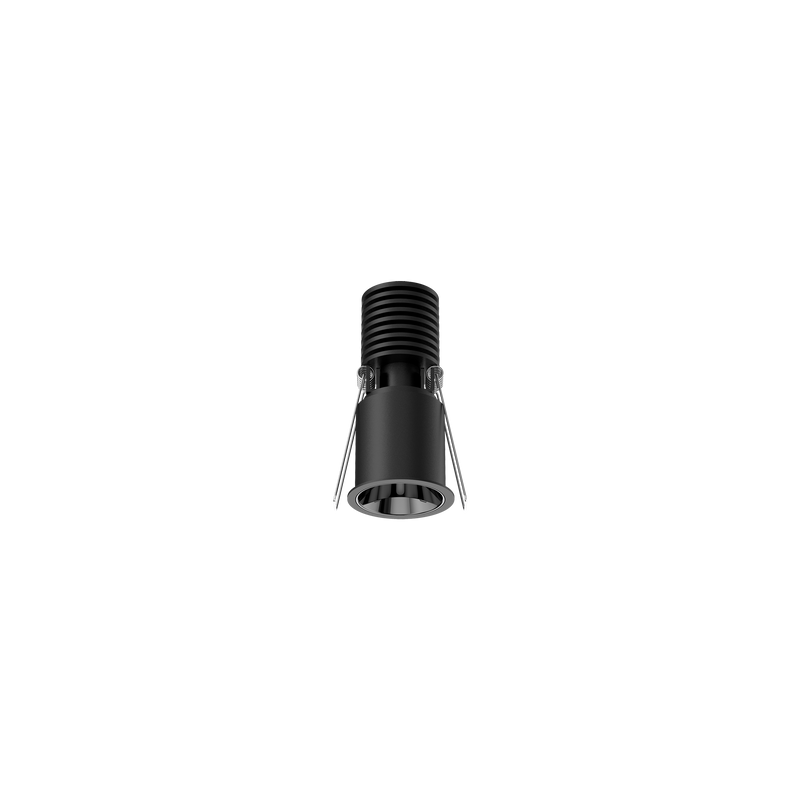

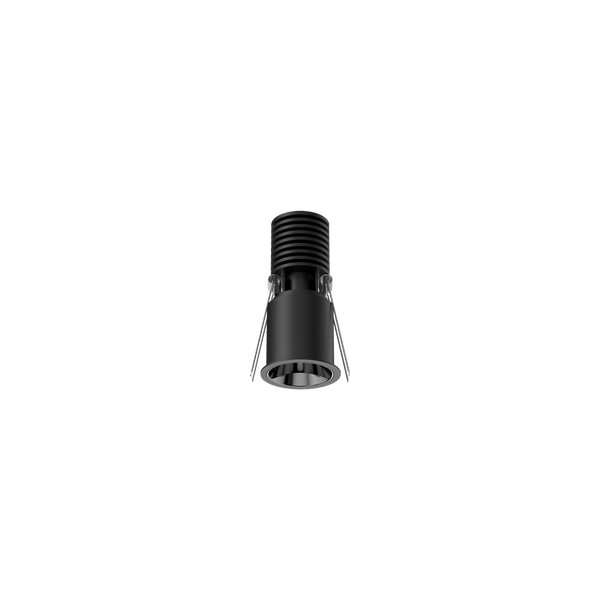

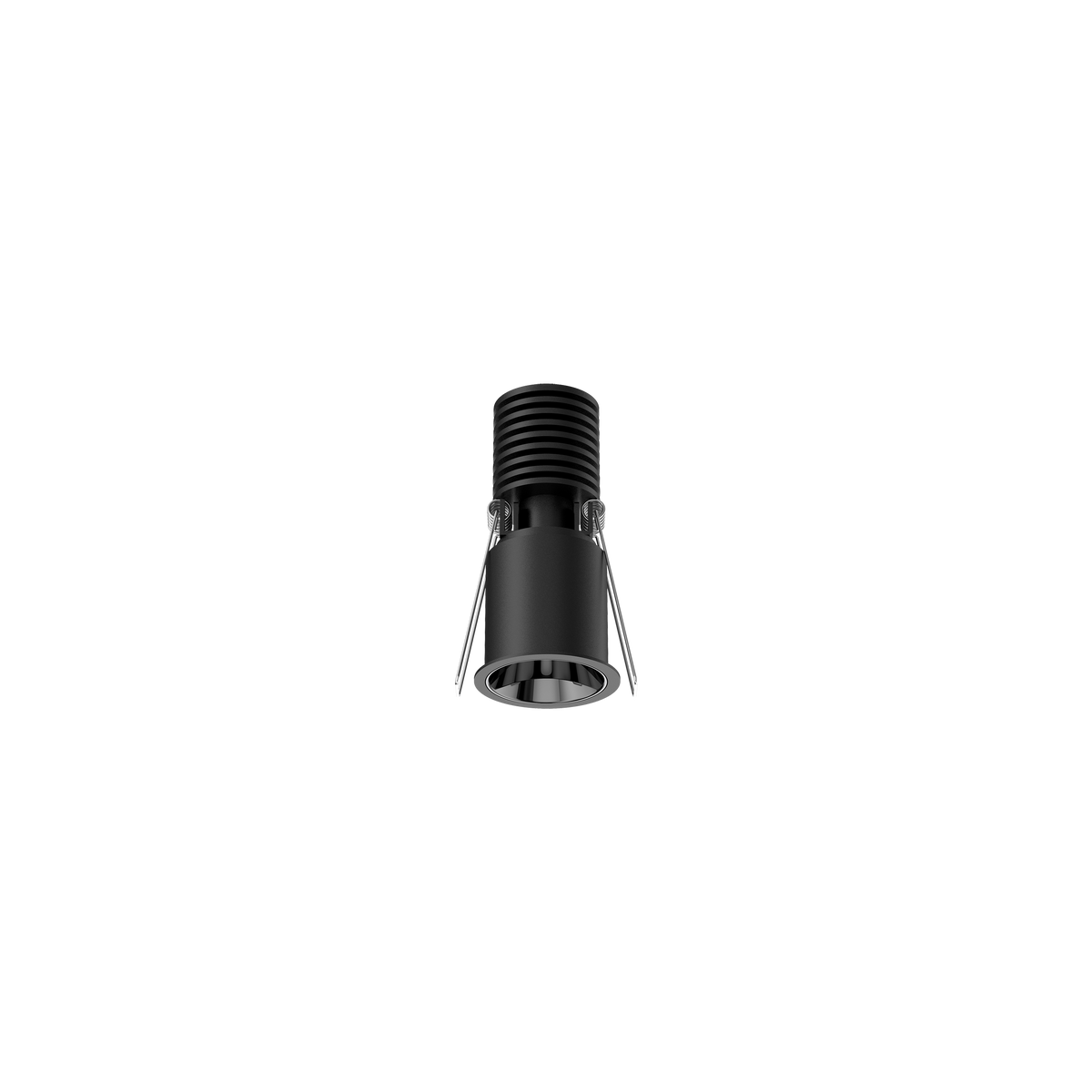

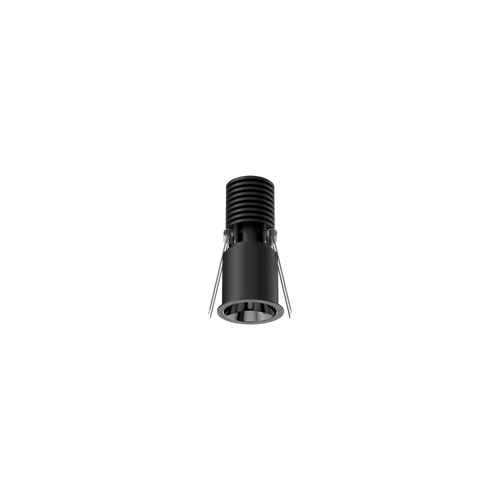

R534-BHGB3K-D-24D Cevon Mini Darklight Slim Trim Downlight Black, High Gloss Black 3K
Lumens
Watts
330lm, 410lm, 495lm or 550lm (Selectable)
4.3W, 5.4W, 6.5W or 8W
View Options
DCC120200-DMS-5W8W-STR
Watts
8.4W (See Spec Sheet)
Watts
8.4W (See Spec Sheet)
Select Downlights
R534
Cevon Mini Darklight Slim Trim Downlight Black, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm, 410lm, 495lm or 550lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
350lm, 435lm, 520lm or 580lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534

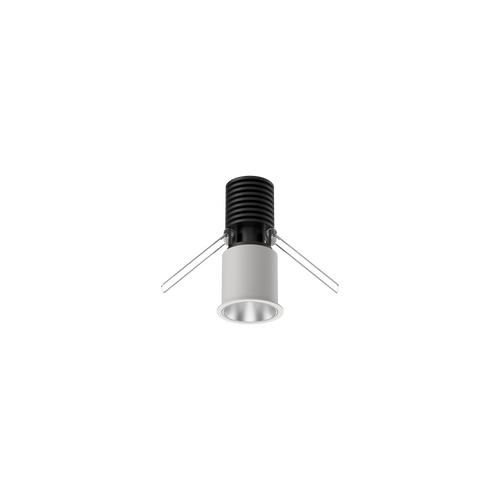

Cevon Mini Darklight Slim Trim Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
335lm, 420lm, 505lm or 560lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534
Cevon Mini Darklight Slim Trim Downlight White, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm, 410lm, 495lm or 550lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm, 410lm, 495lm or 550lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534

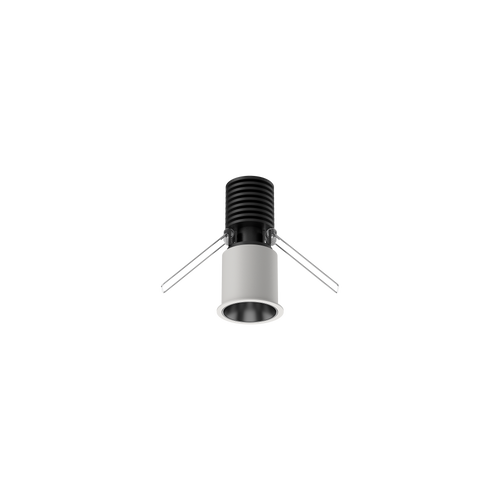

Cevon Mini Darklight Slim Trim Downlight Kit White, Black 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
320lm, 400lm, 475lm or 530lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534

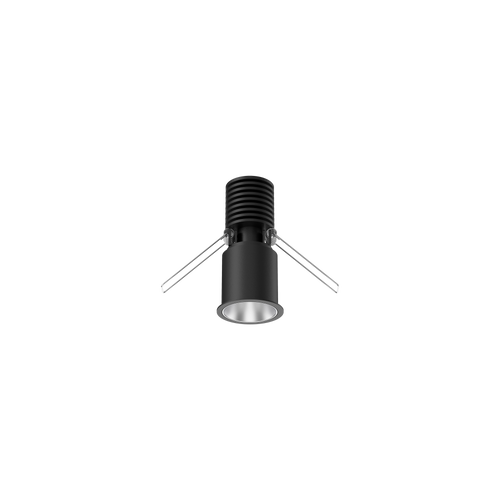

Cevon Mini Darklight Slim Trim Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
335lm, 420lm, 505lm or 560lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534

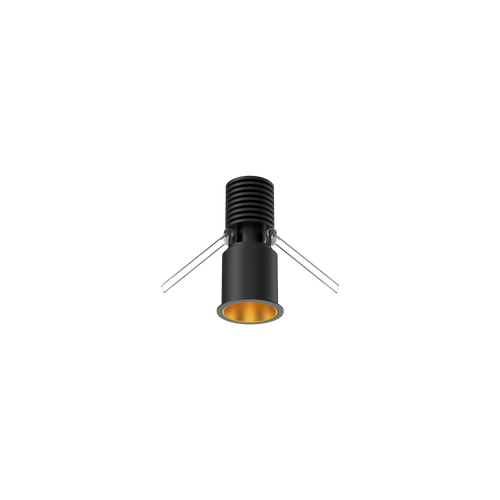

Cevon Mini Darklight Slim Trim Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm, 410lm, 495lm or 550lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
R534

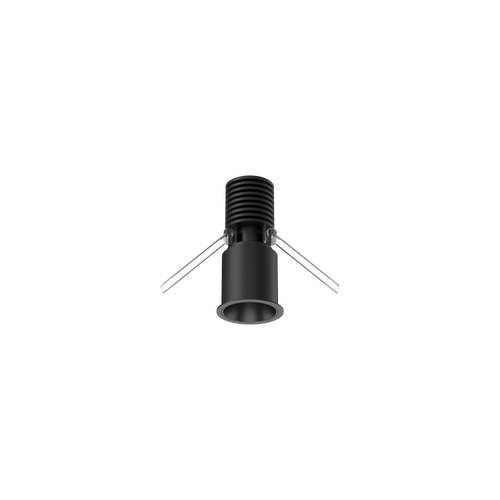

Cevon Mini Darklight Slim Trim Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
320lm, 400lm, 475lm or 530lm (Selectable)
Watts
4.3W, 5.4W, 6.5W or 8W
Specifications
Finish
Black, High Gloss Black
Colour Temp
3000K Warm White
Watts
4.3W, 5.4W, 6.5W or 8W
Lumens
330lm, 410lm, 495lm or 550lm (Selectable)
Beam Angle
24°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Cut Out
40mm
Diameter
46mm
Height
105mm
Binning
SDCM 2
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Glass
Electrical Class
Class II
Driver Output Current
200mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver
Watts
8.4W (See Spec Sheet)
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Height
18.5mm
Width
25mm
Length
100mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
