R534-BG3K-D-24D
R534
- Custom Build - Stock Available

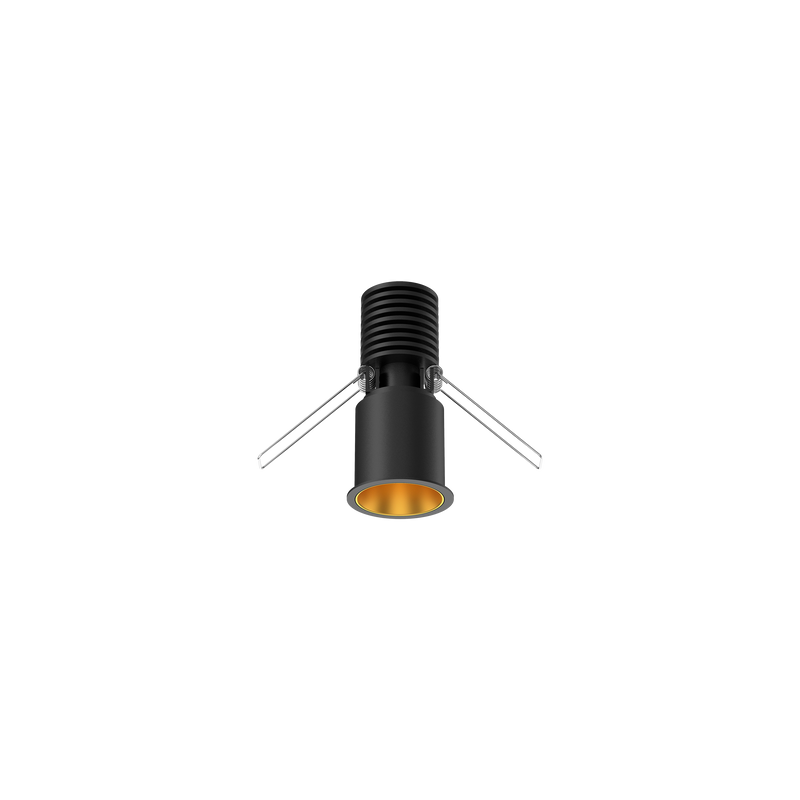

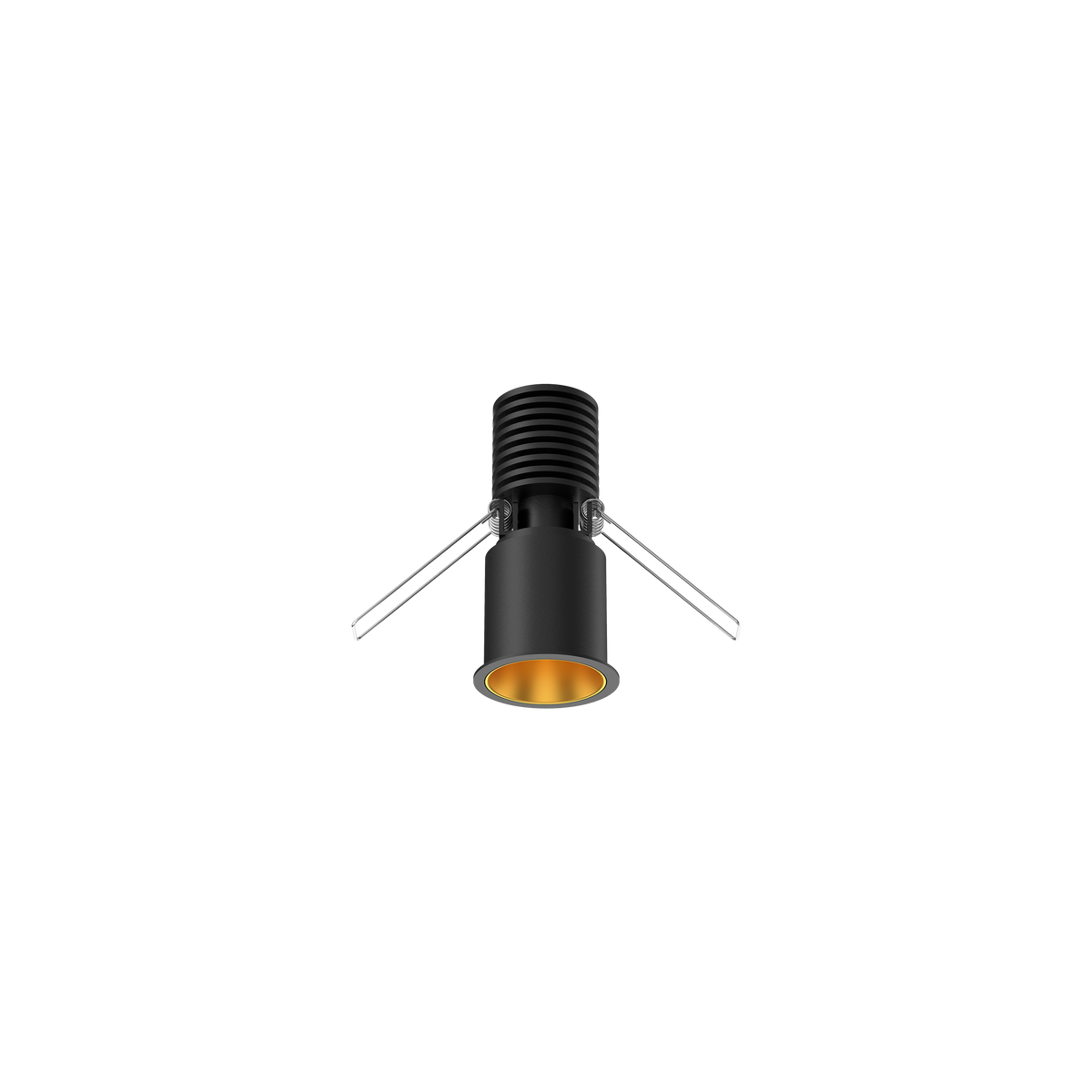

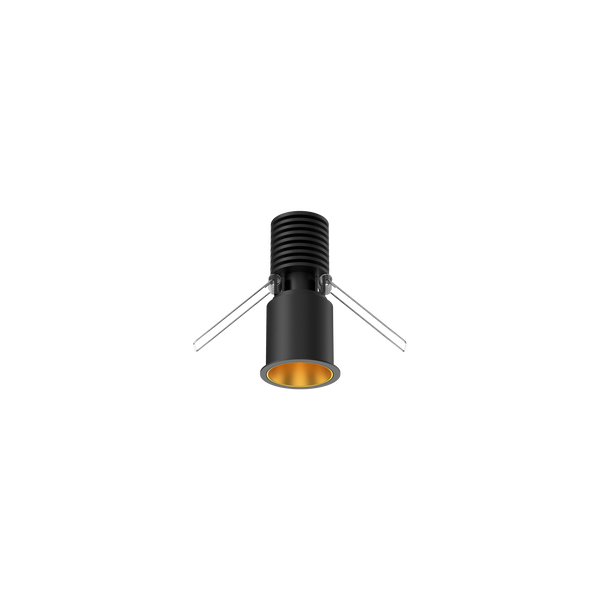

R534-BG3K-D-24D Cevon Mini Darklight Slim Trim Downlight Kit Black, Gold 3000K
Lumens
Watts
330lm / 410lm / 495lm / 550lm
4.3W / 5.4W / 6.5W / 8W
View Options
Select Downlights
R534
Cevon Mini Darklight Slim Trim Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm / 410lm / 495lm / 550lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
350lm / 435lm / 520lm / 580lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
335lm / 420lm / 505lm / 560lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight White, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm / 410lm / 495lm / 550lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm / 410lm / 495lm / 550 lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit White, Black 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
320lm / 400lm / 475lm / 530lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
335lm / 420lm / 505lm / 560lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Black, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
40mm
Lumens
330lm / 410lm / 495lm / 550lm
Watts
4.3W / 5.4W / 6.5W / 8W
R534
Cevon Mini Darklight Slim Trim Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
40mm
Lumens
320lm / 400lm / 475lm / 530lm
Watts
4.3W / 5.4W / 6.5W / 8W
Specifications
Finish
Black, Gold
Colour Temp
3000K Warm White
Watts
4.3W / 5.4W / 6.5W / 8W
Lumens
330lm / 410lm / 495lm / 550lm
Beam Angle
24°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Cut Out
40mm
Diameter
46mm
Height
105mm
Binning
SDCM 2
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Glass
Electrical Class
Class II
Driver Output Current
200mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
