M81-T2
- Checking stock...
Configure your M81-T2 4 options
- White, Black (selected)
- Black

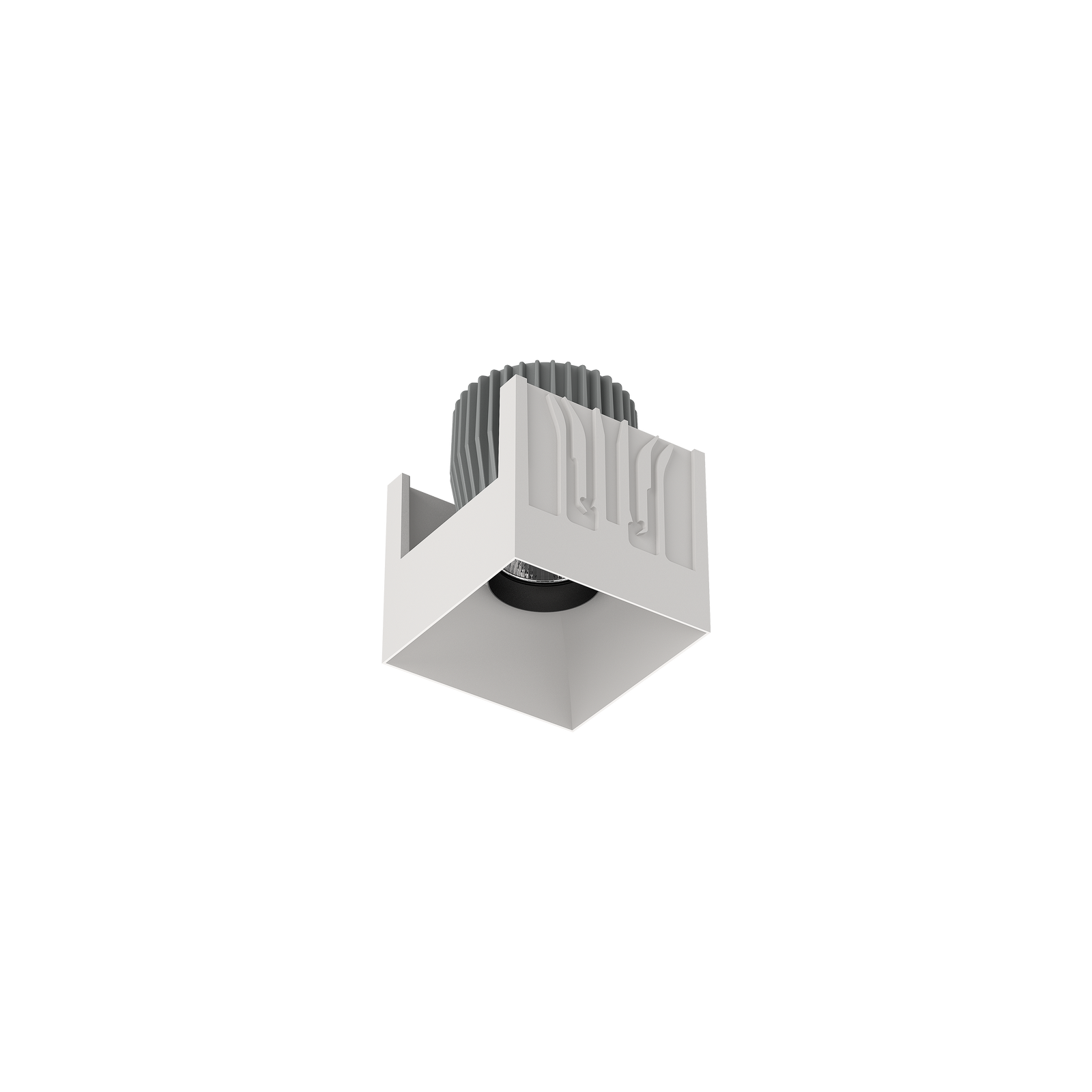

M81-T2-WB3K-40D Cevon M81 Type 2 Lotus Square White 3000K
Lumens
Watts
Tilt Angle
1050lm
12W
20°
Not included
Please select from options
Not included
Please select from options
Select Module
M81-T2
Cevon M81 Type 2 Lotus Square White 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
1045lm
Rotate Angle
355°
Watts
12W
M81-T2
Cevon M81 Type 2 Lotus Square White 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M81-T2
Cevon M81 Type 2 Lotus Square Black 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
1020lm
Rotate Angle
355°
Watts
12W
M81-T2

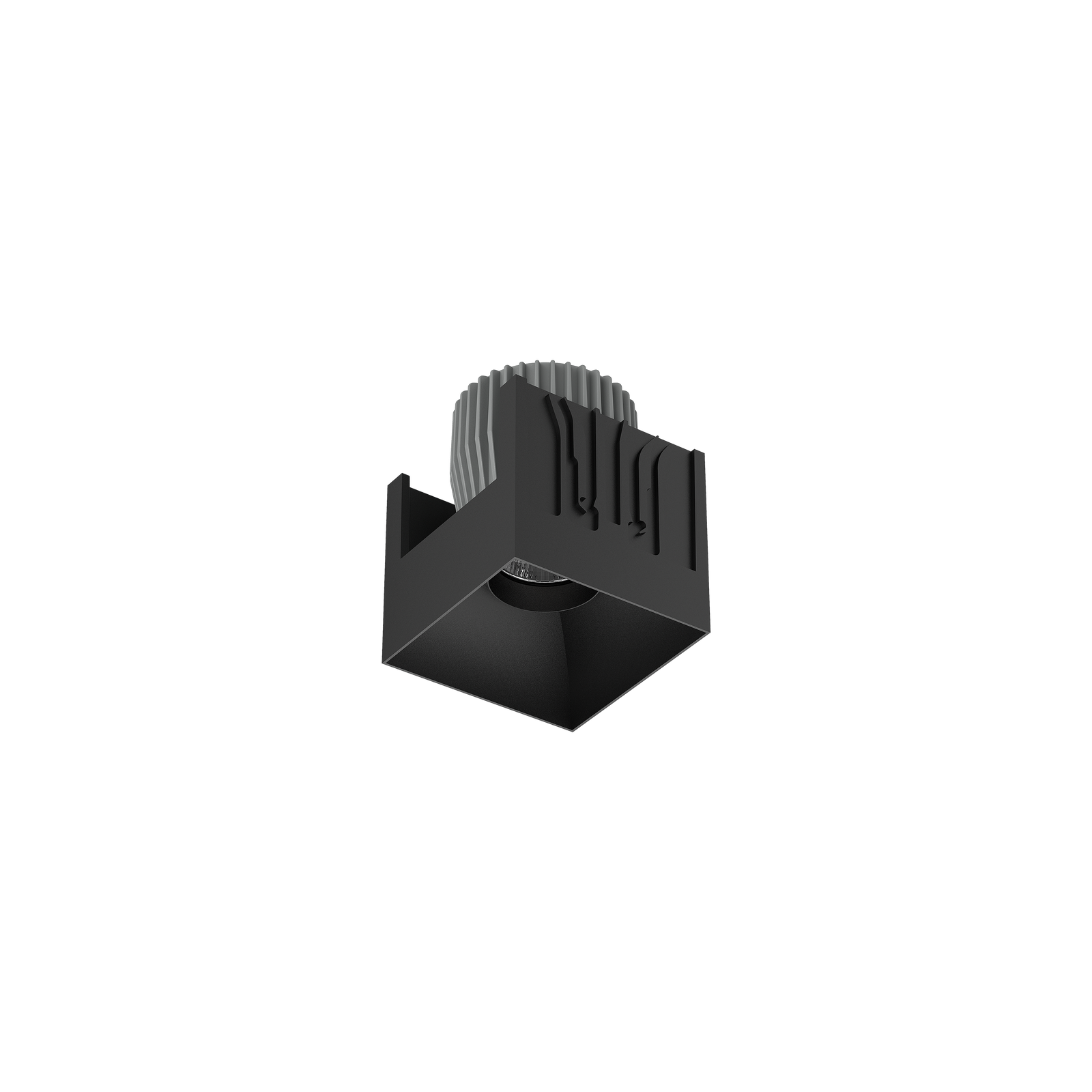

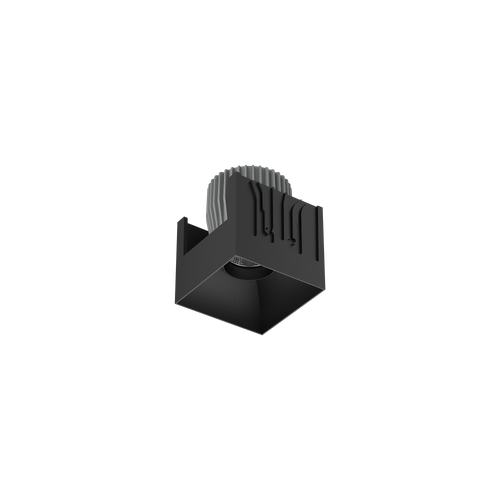

Cevon M81 Type 2 Lotus Square Black 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1025lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F81-SQ
Cevon Type Recessed Square Frame for M81 Black
Cut out
95 x 95mm
F81-SQ
Cevon Type Recessed Square Frame for M81 White
Cut out
95 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 Black
Cut out
173 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 White
Cut out
173 x 95mm
F81-TL-SQ
Cevon Type Trimless Square Frame for M81
Cut out
130 x 130mm
F81-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M81
Cut out
177 x 94mm
Cevon Type Surface Square Box for M81 Black
Cevon Type Surface Square Box for M81 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M81-T2-WB3K-40D
Finish
White, Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
1050lm
Beam Angle
40°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
20°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
113mm
Width
78mm
Length
78mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M81-T2-WB3K-40D
Specifications
None
Resources
