M81-T2
- Checking stock...
Configure your M81-T2 4 options
- White, Black (selected)
- Black

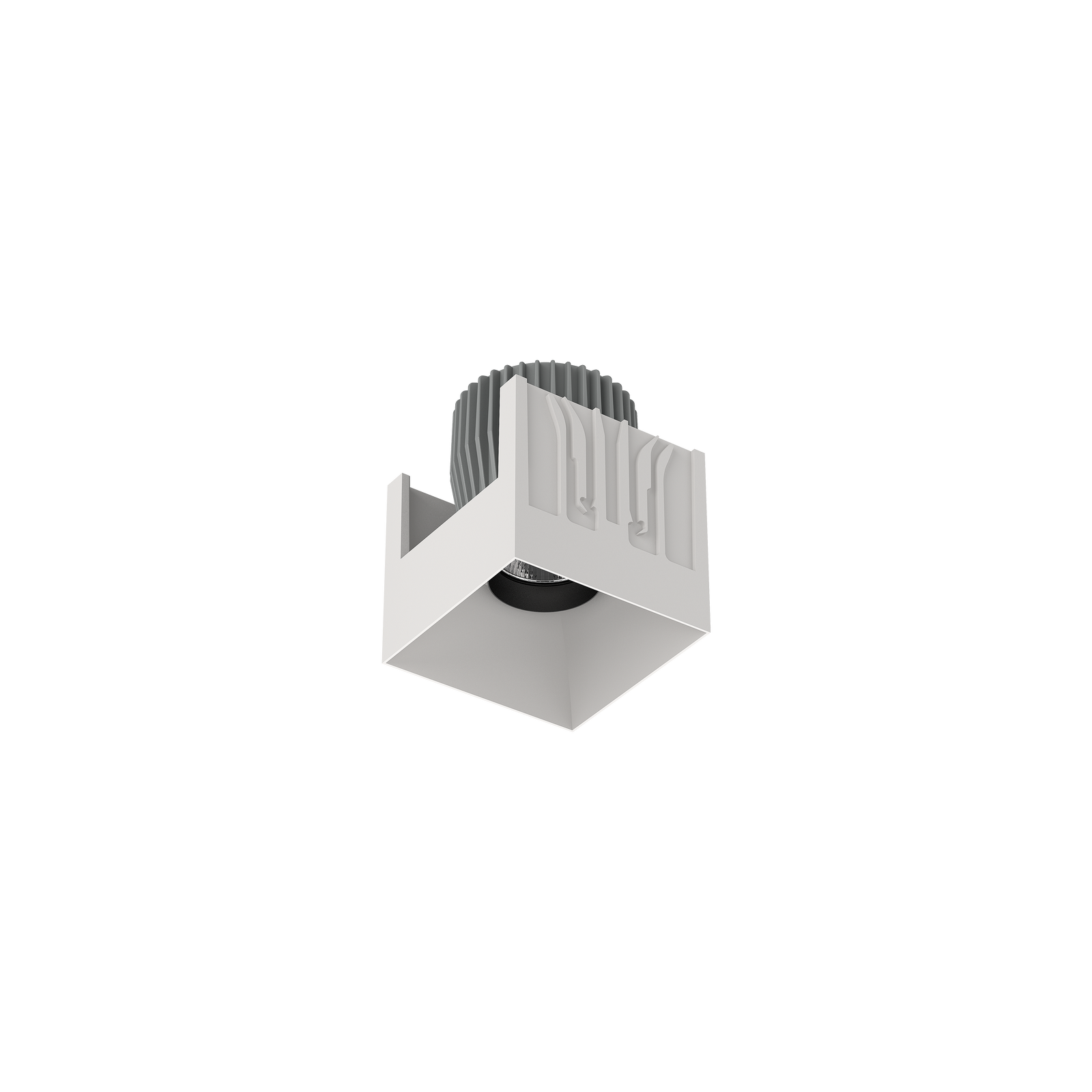

M81-T2-WB27K-55D Cevon M81 Type 2 Lotus Square White 2700K
Lumens
Watts
Tilt Angle
1045lm
12W
20°
Not included
Please select from options
Not included
Please select from options
Select Module
M81-T2
Cevon M81 Type 2 Lotus Square White 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
1045lm
Rotate Angle
355°
Watts
12W
M81-T2
Cevon M81 Type 2 Lotus Square White 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M81-T2
Cevon M81 Type 2 Lotus Square Black 2700K
Temp.
2700K Warm White
Tilt Angle
20°
Lumens
1020lm
Rotate Angle
355°
Watts
12W
M81-T2
Cevon M81 Type 2 Lotus Square Black 3000K
Temp.
3000K Warm White
Tilt Angle
20°
Lumens
1025lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F81-SQ
Cevon Type Recessed Square Frame for M81 Black
Cut out
95 x 95mm
F81-SQ
Cevon Type Recessed Square Frame for M81 White
Cut out
95 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 Black
Cut out
173 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 White
Cut out
173 x 95mm
F81-TL-SQ
Cevon Type Trimless Square Frame for M81
Cut out
130 x 130mm
F81-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M81
Cut out
177 x 94mm
Cevon Type Surface Square Box for M81 Black
Cevon Type Surface Square Box for M81 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M81-T2-WB27K-55D
Finish
White, Black
Colour Temp
2700K Warm White
Watts
12W
Lumens
1045lm
Beam Angle
55°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
20°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
113mm
Width
78mm
Length
78mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M81-T2-WB27K-55D
Specifications
None
