M81-T3
- Checking stock...
Configure your M81-T3 2 options
- White
- Black (selected)

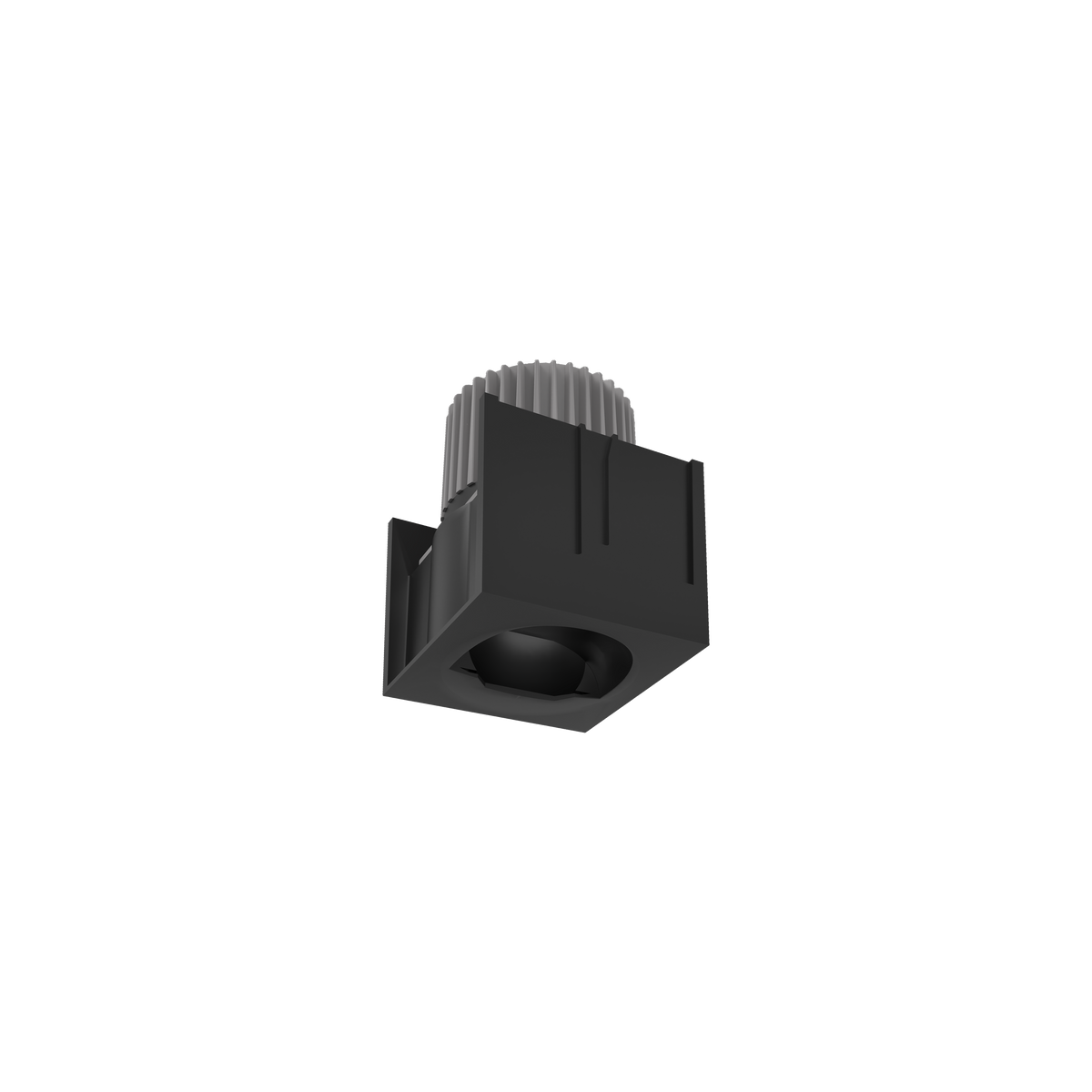

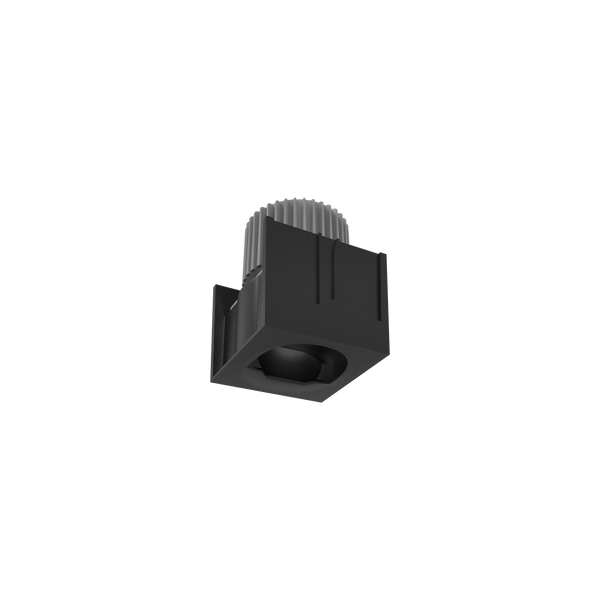

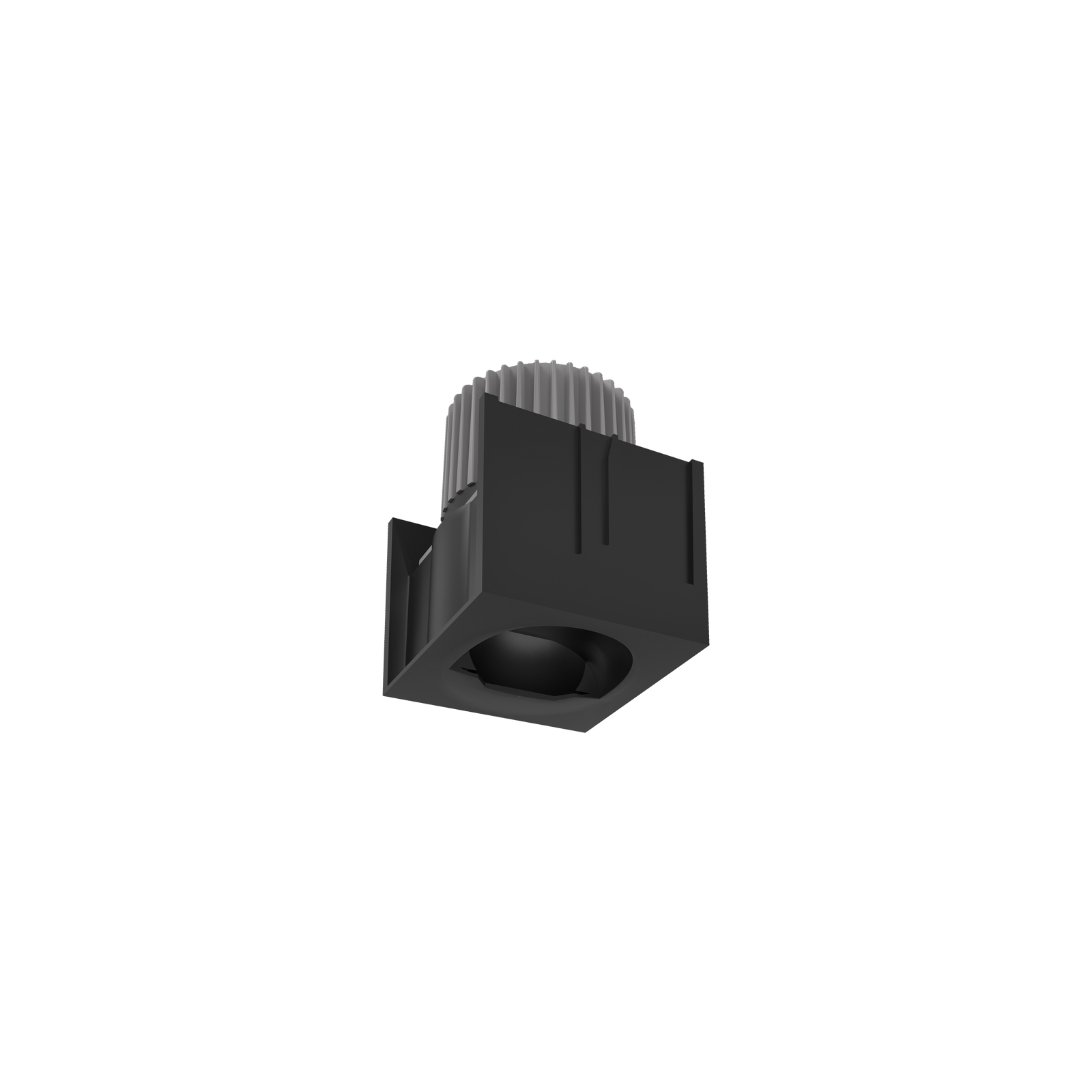

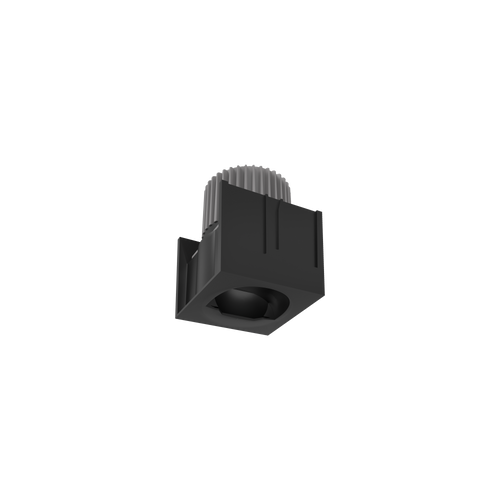

M81-T3-B3K Cevon M81 Type 3 Square Wallwasher Black 3000K
Lumens
Watts
890lm
12W
Not included
Please select from options
Not included
Please select from options
Select Module

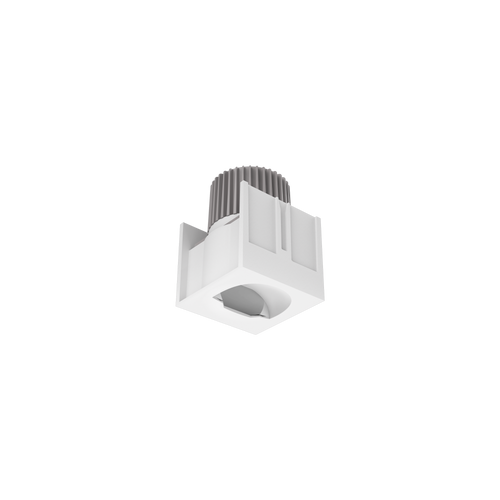

M81-T3
Cevon M81 Type 3 Square Wallwasher White 3000K
Temp.
3000K Warm White
Lumens
890lm
Watts
12W
M81-T3
Cevon M81 Type 3 Square Wallwasher Black 3000K
Temp.
3000K Warm White
Lumens
890lm
Watts
12W
Select Frame
Frame sold separately. Please select below.

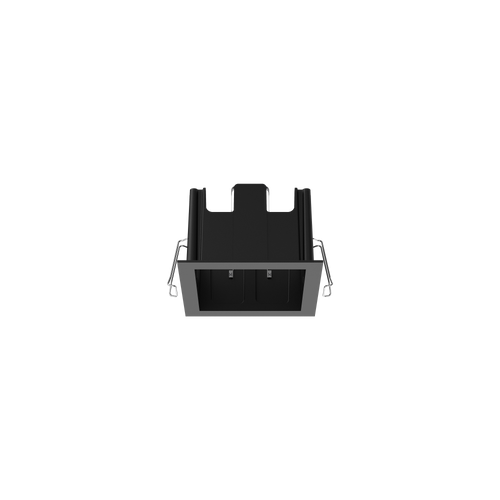

F81-SQ
Cevon Type Recessed Square Frame for M81 Black
Cut out
95 x 95mm

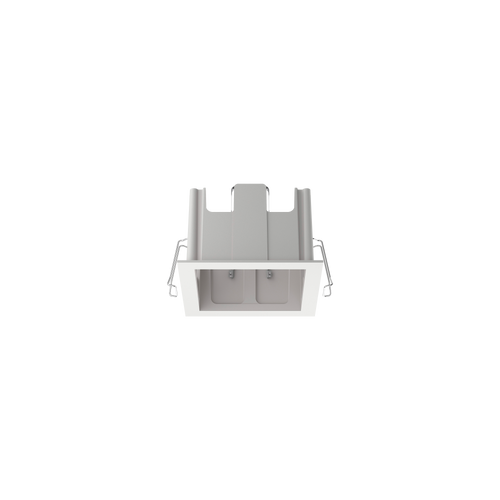

F81-SQ
Cevon Type Recessed Square Frame for M81 White
Cut out
95 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 Black
Cut out
173 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 White
Cut out
173 x 95mm

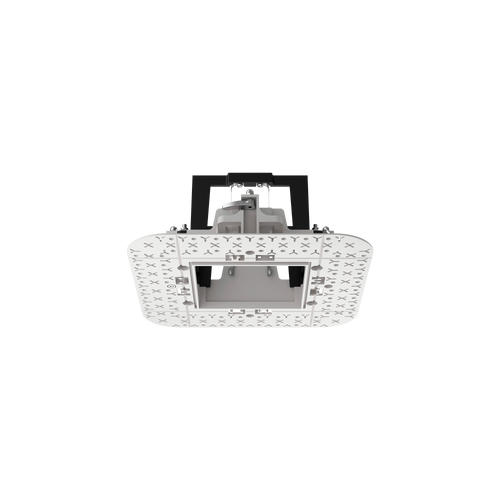

F81-TL-SQ
Cevon Type Trimless Square Frame for M81
Cut out
130 x 130mm

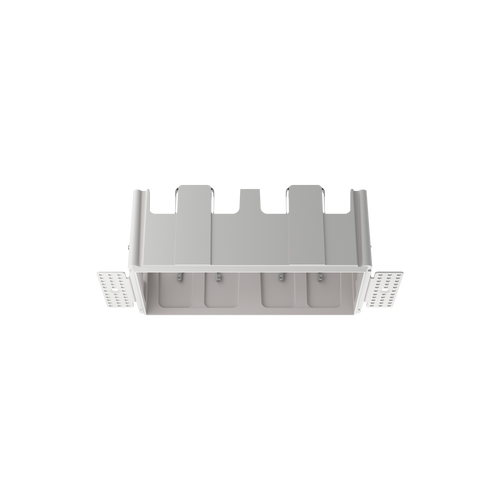

F81-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M81
Cut out
177 x 94mm

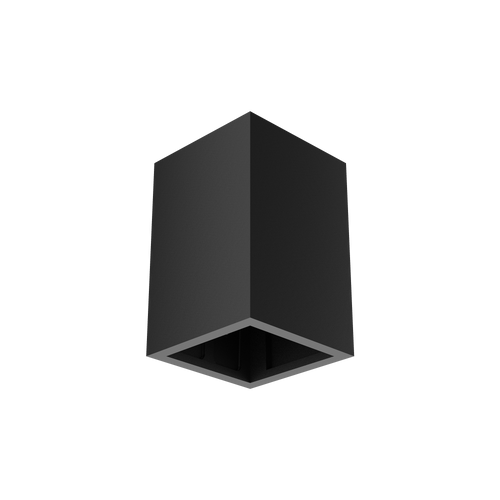

Cevon Type Surface Square Box for M81 Black

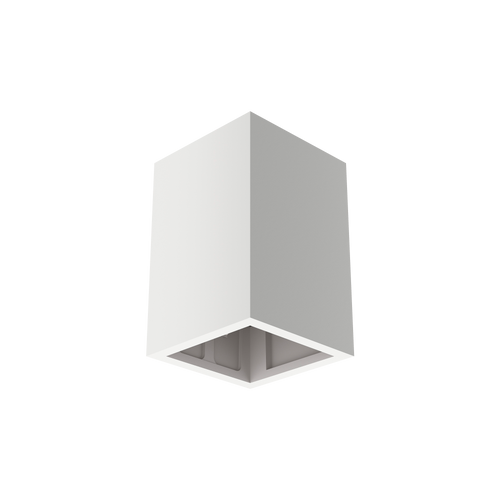

Cevon Type Surface Square Box for M81 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M81-T3-B3K
Finish
Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
890lm
Beam Angle
40°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
106mm
Width
78mm
Length
78mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M81-T3-B3K
Specifications
None
Resources
