M80 Series
M80-T9
- Checking stock...
Configure your M80-T9 6 options
- White (selected)
- Black

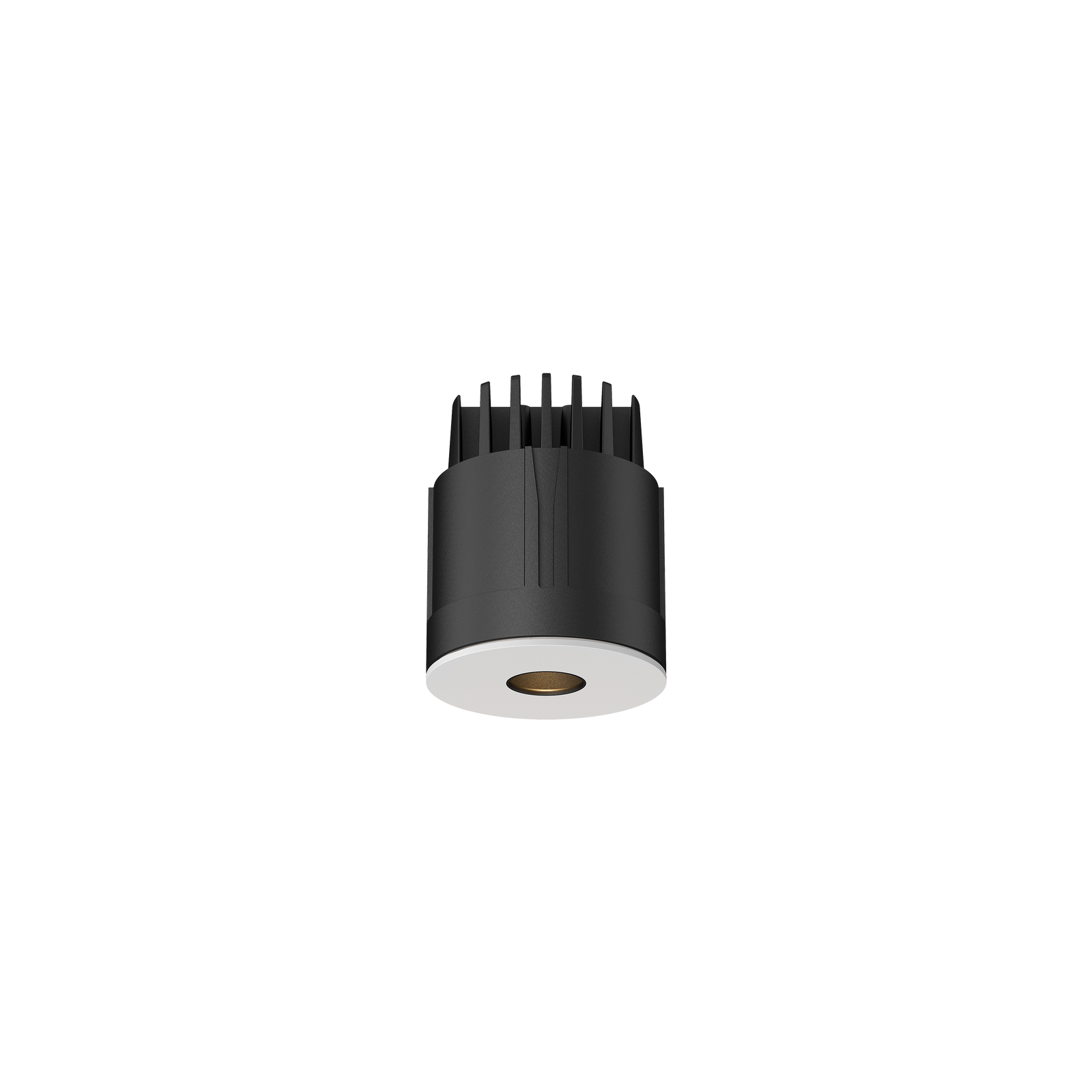

M80-T9-W4K-24D Cevon M80 Type 9 Pinpoint White Trim 4000K
Lumens
Watts
600lm
12.5W
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T9
Cevon M80 Type 9 Pinpoint White Trim 2700K
Temp.
2700K Warm White
Lumens
550lm
Watts
12.5W
M80-T9
Cevon M80 Type 9 Pinpoint White Trim 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
12.5W
M80-T9
Cevon M80 Type 9 Pinpoint White Trim 4000K
Temp.
4000K Natural White
Lumens
600lm
Watts
12.5W
M80-T9
Cevon M80 Type 9 Pinpoint Black Trim 2700K
Temp.
2700K Warm White
Lumens
550lm
Watts
12.5W
M80-T9
Cevon M80 Type 9 Pinpoint Black Trim 3000K
Temp.
3000K Warm White
Lumens
570lm
Watts
12.5W
M80-T9
Cevon M80 Type 9 Pinpoint Black Trim 4000K
Temp.
4000K Natural White
Lumens
600lm
Watts
12.5W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T9-W4K-24D
Finish
White
Colour Temp
4000K Natural White
Watts
12.5W
Lumens
600lm
Beam Angle
24°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
RAL Colour
RAL9003
Diameter
78mm
Height
100mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T9-W4K-24D
Specifications
None
Resources
