M80 Series
M80-T22-BHGB3K-45D
M80-T22
- Custom Build - Stock Available

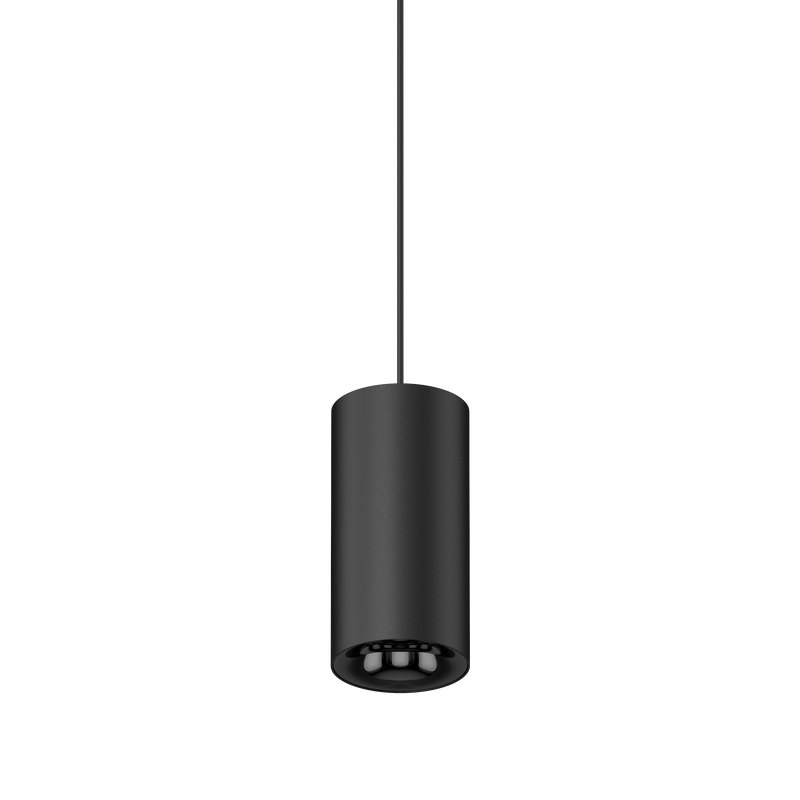

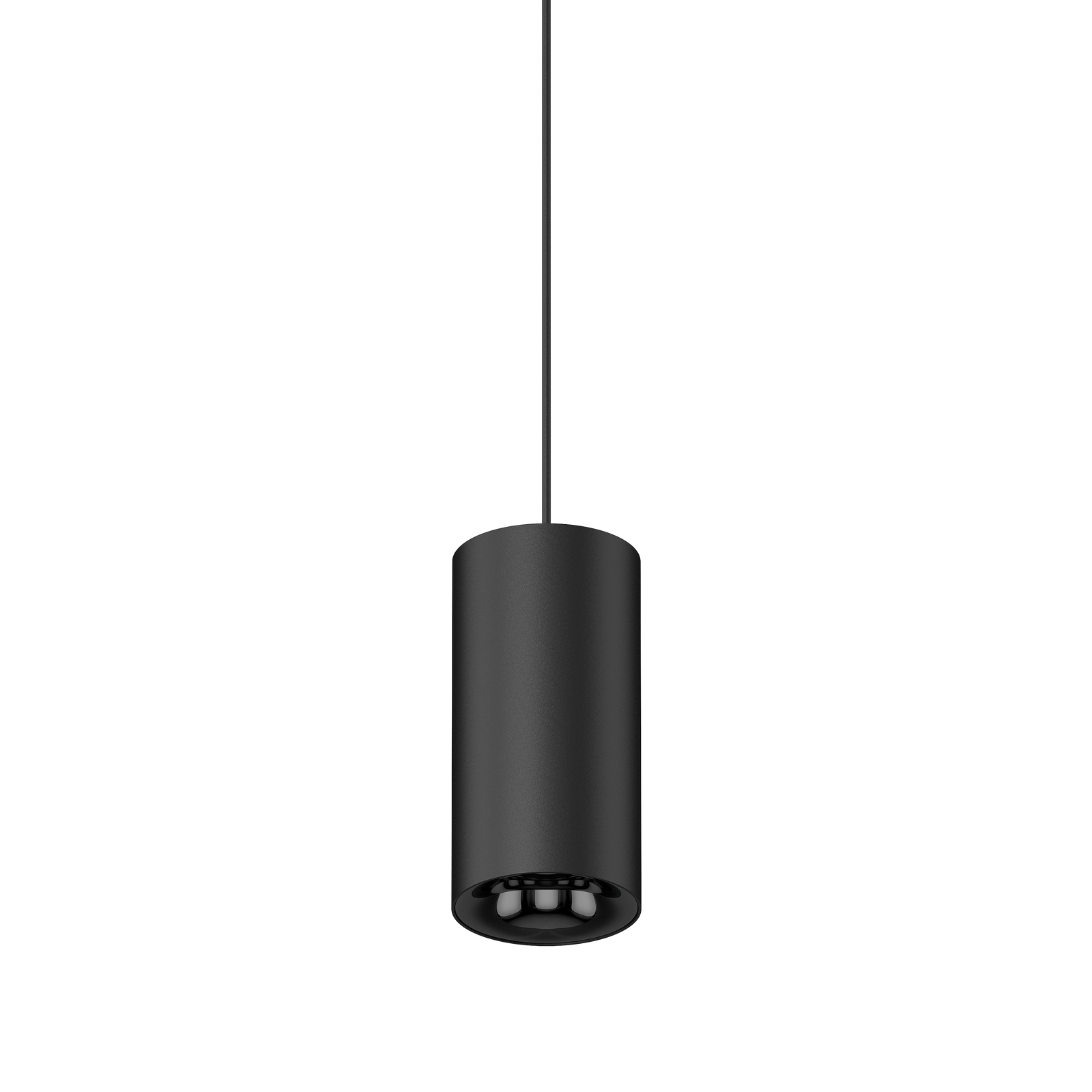

M80-T22-BHGB3K-45D Cevon M80 Type 22 Dark Art Pendant Spot Black, High Gloss Black 3000K
Lumens
Watts
1020lm
12W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot White 3000K
Temp.
3000K Warm White
Lumens
1030lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot White, Silver 3000K
Temp.
3000K Warm White
Lumens
1030lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot White, Gold 3000K
Temp.
3000K
Lumens
1020lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot White, Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot Black, Silver 3000K
Temp.
3000K Warm White
Lumens
1030lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot Black, Gold 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M80-T22
Cevon M80 Type 22 Dark Art Pendant Spot Black 3000K
Temp.
3000K
Lumens
1020lm
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
Black, High Gloss Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
1020lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
60mm
Length
<2m (Adjustable)
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
