M80 Series
M80-T13-BS3K-45D
M80-T13
- Custom Build - Stock Available

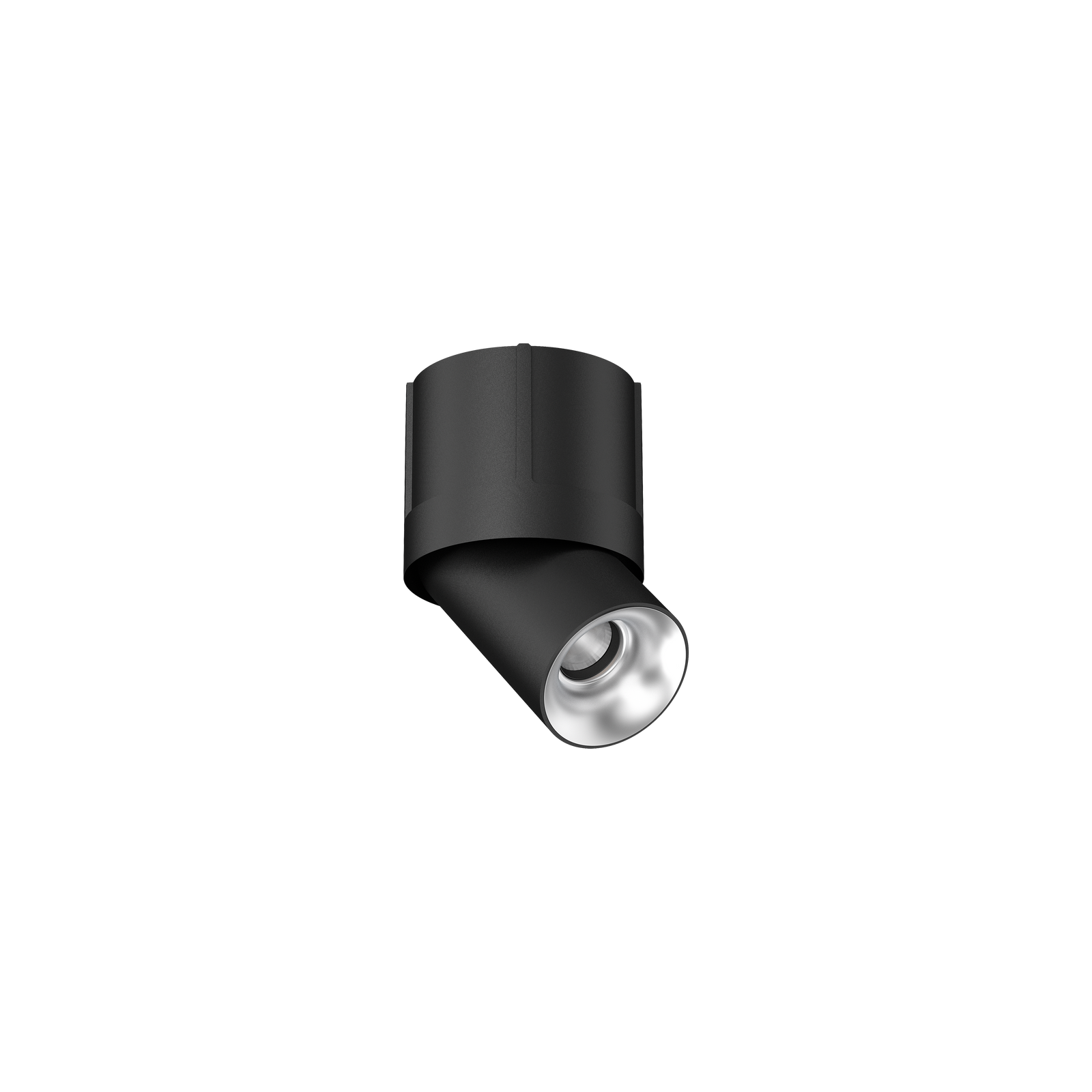

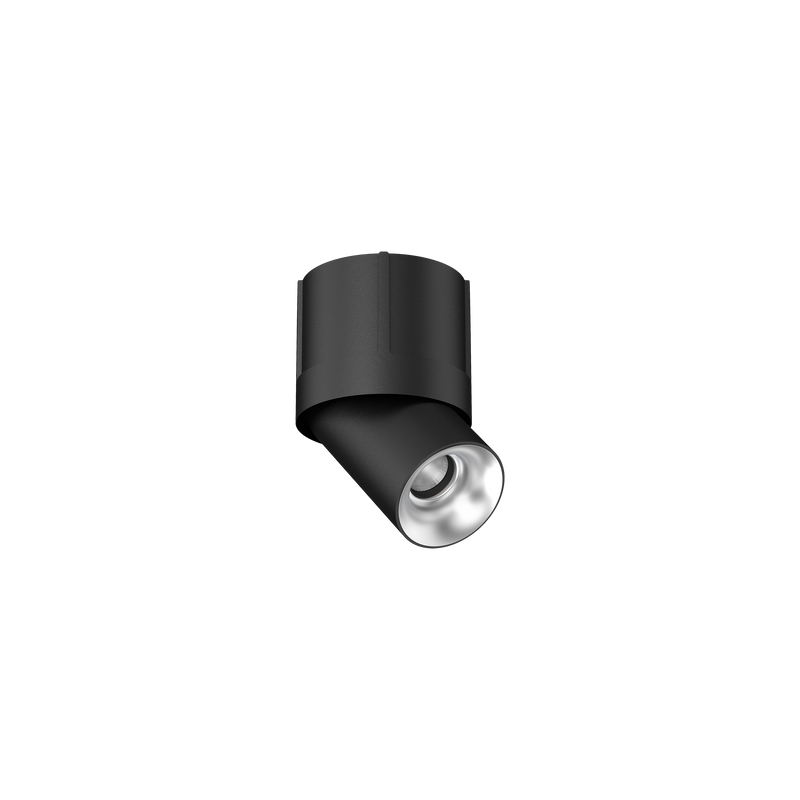

M80-T13-BS3K-45D Cevon M80 Type 13 Dark Art Adjustable Spot Black, Silver 3000K
Lumens
Watts
Tilt Angle
965lm
12W
40°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
965lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot White 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
965lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
965lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Adjustable Spot Black 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
Black, Silver
Colour Temp
3000K Warm White
Watts
12W
Lumens
965lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
40°
Rotate Angle
355°
Ingress Protection
IP43
Diameter
Base: Ø78mm, Spot: Ø53mm
Height
Base: 68mm, Spot: 90mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
