M80 Series
M80-T13
- Custom Build - Request Availability
Configure your M80-T13 27 options
- White
- White, Black
- White, Gold
- White, High Gloss Black
- White, Silver
- Black
- Black, Gold
- Black, High Gloss Black
- Black, Silver (selected)

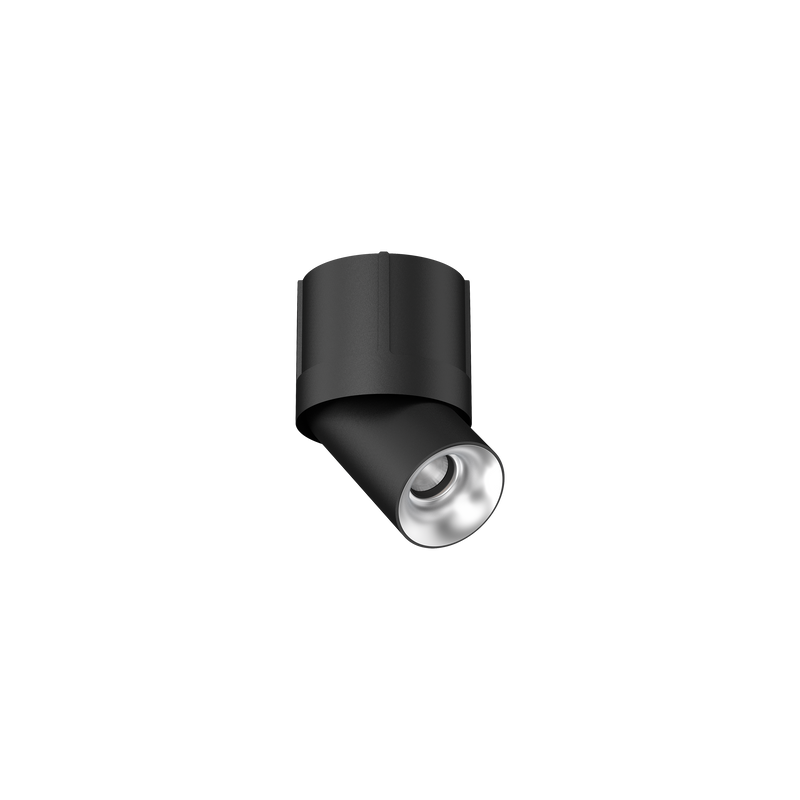

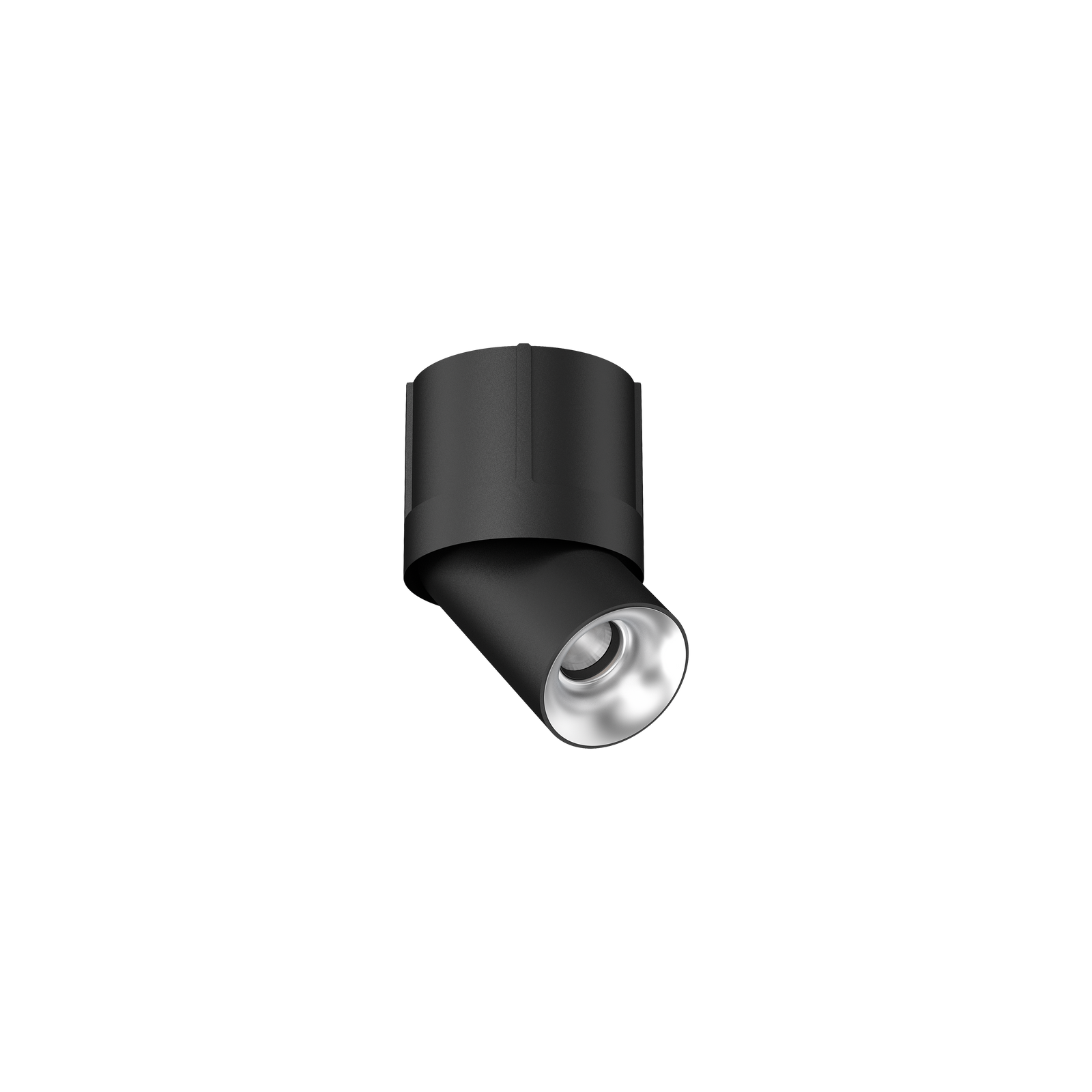

M80-T13-BS27K-45D Cevon M80 Type 13 Dark Art Spot Black, Silver 2700K
Lumens
Watts
Tilt Angle
915lm
12W
40°
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T13
Cevon M80 Type 13 Dark Art Spot White 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
915lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
965lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
990lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Black 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
890lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Black 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
890lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Gold 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
890lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, High Gloss Black 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
915lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
965lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot White, Silver 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
990lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
890lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
890lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, Gold 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
890lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
910lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, High Gloss Black 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
945lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
915lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
965lm
Rotate Angle
355°
Watts
12W
M80-T13
Cevon M80 Type 13 Dark Art Spot Black, Silver 4000K
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
990lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T13-BS27K-45D
Finish
Black, Silver
Colour Temp
2700K Warm White
Watts
12W
Lumens
915lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
40°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
Base: Ø78mm, Spot: Ø53mm
Height
Base: 68mm, Spot: 90mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
